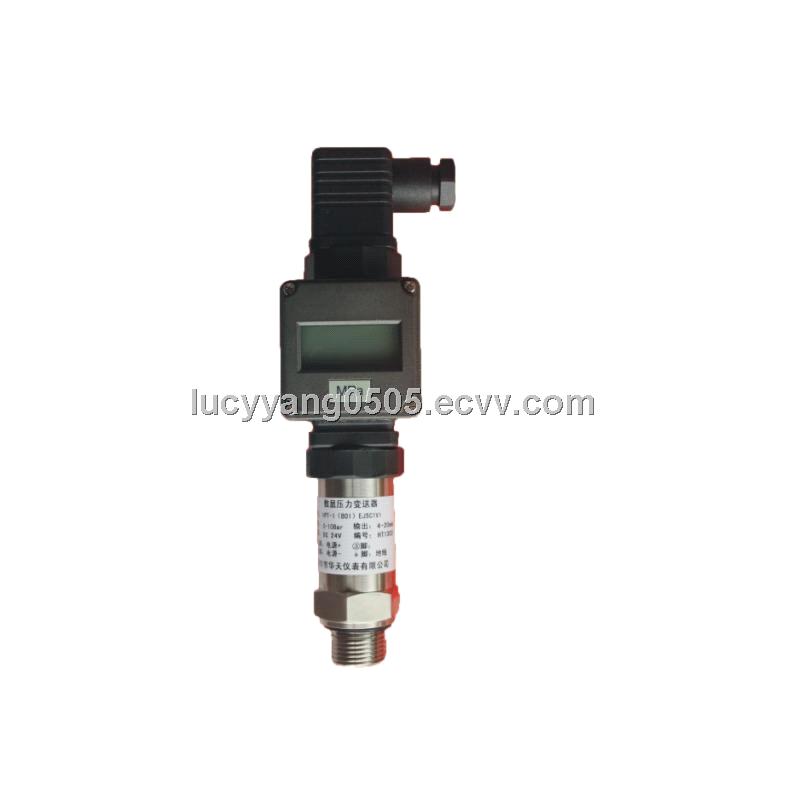

4-20mA with two wire or three wire digital pressure transmitter
| Supply Ability: | 200 Piece/Pieces per Day |
|---|---|
| Shipping: | 6-8 workding days |
| Payment Terms: | L/C, T/T, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | box:13cm*6cm*5.5cm |
Quick Details
- Brand Name: Huatian
- Model Number: HPT-1
- Usage: Pressure Sensor
- Theory: Resistance Sensor
- Output: Analog Sensor
Specifications
| Features: | ||||
| 3 1/2 LED/LCD Display | ||||
| Compact Outline, Easy installation | ||||
| Strong Compatibility | ||||
| Adjustable Pressure Unit | ||||
| Applications: | ||||
| The oil industry, chemical industry,Electric power. | ||||
| Hydraulic pressure system,Pneumatic system | ||||
| Energy and Water treatment system. | ||||
| Automation equipment | ||||
| Industrial process control | ||||
| Performance parameters | ||||
| Reference temperature: 25°C | ||||
| Measuring range | -0.1~250MPa | |||
| Pressure type | Gage pressure, Absolute pressure | |||
| Output signal | 4~20mA , 0~10V or others | |||
| Display type | 3 1/2 LED or LCD display | |||
| Accuracy(%FS) | 0.1 | 0.25 | 0.5 | |
| Nonlinearity(%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Hysteresis(%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Repeatability(%FS) | ≤0.1 | ≤0.25 | ≤0.5 | |
| Zero drift(%FS/℃) | ≤0.02 | |||
| Full scale drift(%FS) | ≤0.02 | |||
| Stability (%FS/Year) | ≤0.25 | |||
| Damping ( second ) | Adjustable | |||
| Operating voltage(V) | 12~36V Dc(Standard: 24V) | |||
| Operating temperature(℃) | -20~85℃ | |||
| Overload capacity(%) | 300 | |||
| Life span | more than 9 million times pressure cycle | |||
| Load resistance (Ω) | ≤750 | |||
| Response time (ms) | ≤1 | |||
| Media | Media Compatible with 316L | |||
| Diaphragm material | 316L or Ceramic diaphragm | |||
| Housing material | 1Cr18Ni9Ti | |||
| Pressure interface | M20*1.5,G1/2,G1/4,1/4NPT or others | |||
| Enclosure rating | IP65 | |||
| Weight | 280g | |||
