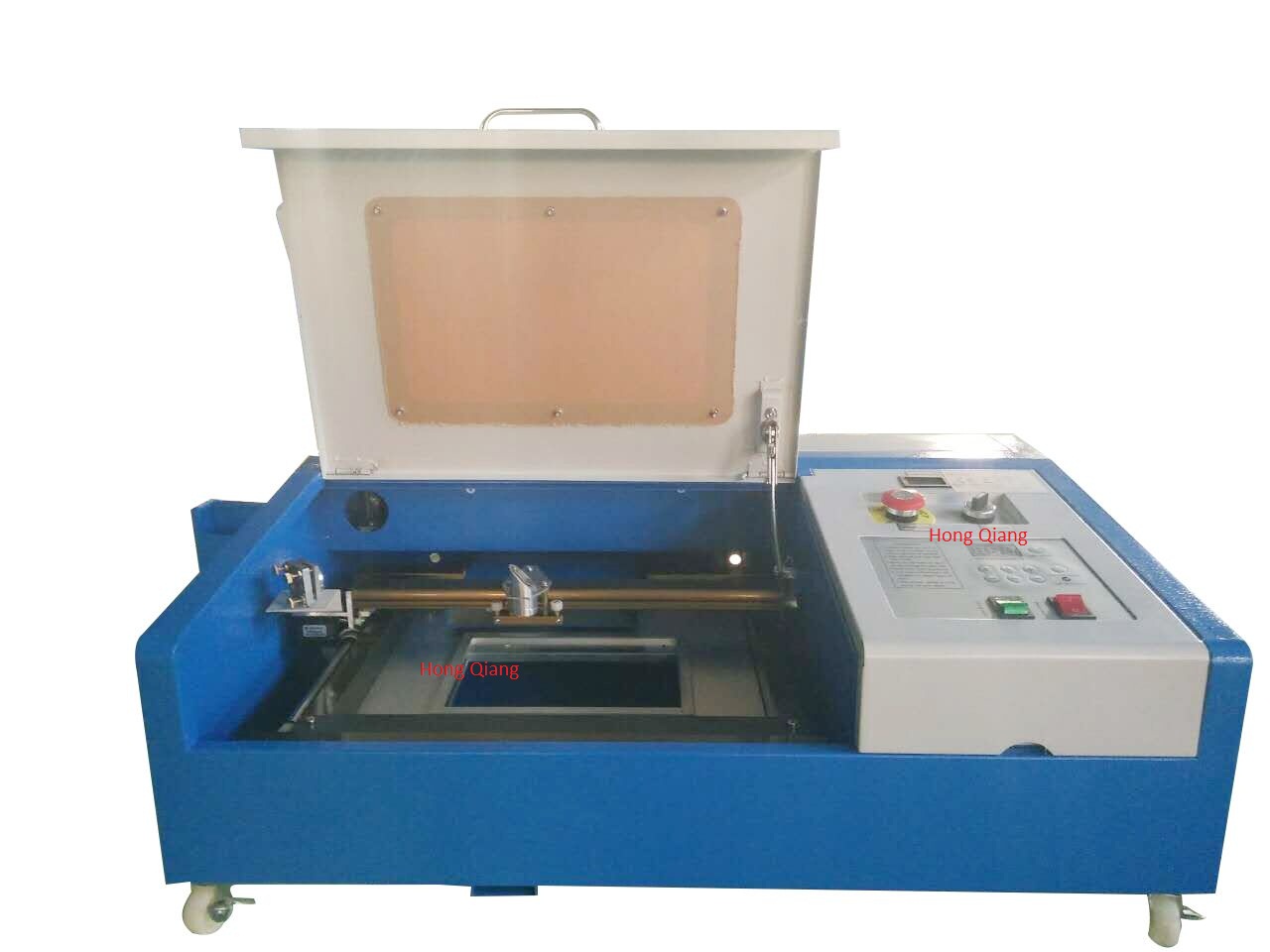

Mini CNC Laser Engraving Cutting Machine for rubber (HQ3020)

FOB Price:	1,000.00 - 2,000.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	Negotiable
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywood box

Quick Details

Application: Laser Engraving
After-sales Service Provided: No overseas service provided
Dimension(L*W*H): 750*450*250mm (29.5*17.7*9.8")
Model Number: HQ3020
Brand Name: HONG QIANG
Graphic Format Supported: BMP
Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood
Cooling Mode: Water Cooling
CNC or Not: Yes
Engraving Speed: 0~350mm/s (0~13.8 in./s)
Engraving Area: 300*200mm
Laser Type: CO2
Condition: New
3020: HQ3020

Specifications

Technical Index:

Laser power: 40W (OPTIONAL)

Laser Type: CO2 Glass-tube laser

Power supply: AC220V +/- 10%/AC110V+/- 10%, 50Hz

Tube Trigger Volt: 20KV

Tube Operating Volt: 15KV

Current: 0~22MA

Max. Engraving size: 300*200mm (11.81*7.87")

Engraving speed: 0~350mm/s (0~13.8 in./s)

Cutting speed: 0~35mm/s (0~1.38 in./s)

Laser Tube Life: 1000~1300 Hours

Min. cutting character: Letter: 1x1mm (0.04*0.04")

Operating Temperature: 5~35 degree Celsius

Machine Weight: 25kgs

Resolution Ratio: <1000dpi

Control Configuration: DSP

System Environment: WINDOWS2000/WINDOWS XP/Vista/Win7

Software Supported: MoshiDRAW software (Both NewlyDraw and NewSea fuction)

Type of Cooling: water-cooling and protection system

Graphic Format Supported: BMP/JPG/JPEG/WMF/EMF/PLT

Motor Type: Stepper Motor

Water-break protection: Yes

Gross Weight: 35kgs

Machine Dimension: 750*450*250mm (29.5*17.7*9.8")

Packing: wooden box package

Packing Dimension: 970*630*370mm (38.2*24.8*14.6")

Applicable Materials:

Nonmetal materials: such as rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wooden, marble, China, paper, garment, jade article, glass, shell etc.

Applicable Industry:

Cutting, engraving, through-carved, hole drilling on wood and bamboo, acrylic, craft and gift, crystal, marble and granite, ceramic, glass and other non-metal materials. It is widely used in electronic, craft and gift, advertising industries.
