Guangdong Dongyuan Gas Appliances Industrial Co., Ltd.
China Manufacturer with main products: Gas Boiler, Heating Boiler, Bombi Boiler, Gas-Fired Boiler |

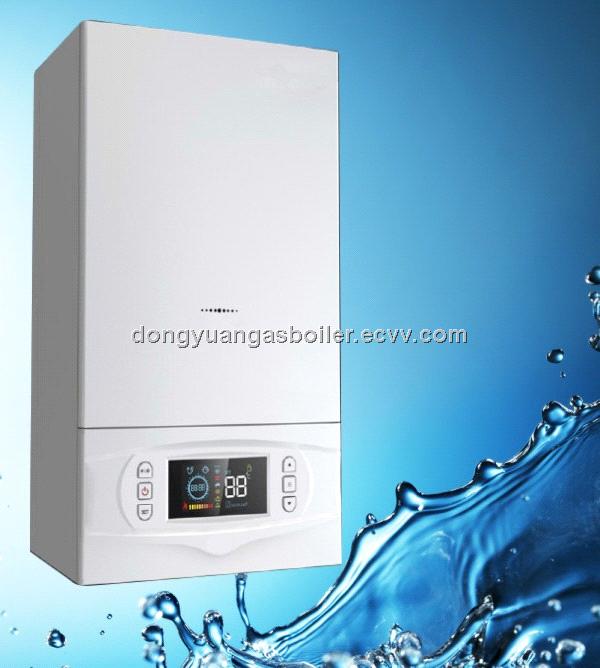

Gas boiler for heating and hot water
| FOB Price: | 280.00 - 400.00 USD/Piece |
|---|---|
| Supply Ability: | 7,500 Piece/Pieces per Month |
| Shipping: | 25-30days after receiving the deposit. |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Each product in plastic bag with product instructions and foam packaging, then carton outside. |
Quick Details
- Condition: New
- Type: Natural Circulation
- Usage: domestic use
- Structure: Water Tube
- Pressure: Low Pressure
- Style: Vertical
- Brand Name: Dongyuan
- Model Number: L1PB-NL
- Output: Hot Water
- Dimension(L*W*H): 740*400*305
- Weight: 35
- Certification: TUV
- After-sales Service Provided: Engineers available to service machinery overseas
- Installation: Wall hung
- Housing Material: Cold rolled panel
- Power capacity: 220V-50HZ
- Certificate: ISO9001
- Model series: L series
- Display: LCD
- Gas Type: NG or LPG
- Input power capacity: 16kw-32kw
- Usage: Provide Home Heating and Shower Water
- Exchanger: 1 Exchanger or 2 Exchagers Available
- Product dimension(mm): 740*400*305
- Packing dimension(mm): 860*470*395
- Container Qty (20GP/40GP/40HQ): 133/285/335
Specifications
Safety features:
-Twice Anti-freezing function .
-Flame-out protection.
-Wind pressure safety protection.
-Anti-lock function for pump.
-Automatic by-pass function for pump and control system.
-Safety protection of overload water pressure of heating circulation.
-Water pressure monitor function of heating circulation.
-Overheat protection for domestic hot water.
-The terminal temperature protection.
-Water temperature sensor failure protection.
-Reignition function.
-Defer ignition function.
-Automatic circulation function of pump.
-Self-diagnostic function.
Product characteristic:
-European Technology
-Provide both heating and domestic water
-High efficiency and gas-saving
-Quietly working
-Intelligent and economical control system
-Easy operation with digital LCD screen
-Four section timer
-Remote controller optional
-Fashional appearance design
-High quality components with CE certificates
Model Unit L1PB16-** L1PB18-** L1PB24-** L1PB28-** L1PB32-** Gas Type NG/LGP Rated Gas Pressure Pa 2000/2800 Rated Heat Output kW 16 18 24 28 32 Efficiency Under Rated Heat Input % ＞88% Power Supply / AC220~50Hz Electric Power W 110 145 Electricity And Water Protection Grade / IPX4 Heating system Temp.Range of Heating Water ℃ Radiator : 30-80, Floor heating :30-60 Heating Area ㎡ 60-120 70-140 100-200 160-260 200-300 Lift Of Pump m 5 7 Application Water Pressure Mpa 0.1~0.3 Expansion Tank Capacity L 6 8 Preset Pressure Of Expansion Vessel Mpa 0.1 Water Circulation Type / Airtight forced circulation DHW system △T=25℃ Hot Water Supply kg/min 9 10 13.5 16 18 △T=30℃ Hot Water Supply kg/min 7.5 8.4 11.3 13.4 15 Temp.Range Of DHW Supply ℃ 30~60 Applicable water pressure Mpa 0.03~0.8 The Minimum Starting Flow L/min 2 The Minimum Closed Flow L/min 1.6 Pipe joint Gas Input Inch G3/4 Connection For Heating Water Pipes Inch G3/4 Connection For DHW Pipes Inch G1/2 Coaxial Air duct / Flue duct diameter mm 100/60 Twin pipes Air duct / Flue duct diameter mm 80/100 The Length Of Flue Duct m 1 Noise On Working DB ＜42 Exhaust type / Forced exhaust Ignition type / Integrated automatic ignition Temperature control / Gas proportional adjustment Product Dimensions mm 740*400*305 740*430*320 Packing Dimensions mm 865*470*385 870*495*390 Container Qty (20GP/40GP/40HQ) pcs 133/285/335 125/275/325
