>Products Catalog > Solid state relay > Single phase Adjustable 24V DC solid state relays SSR DTS-40A-24V

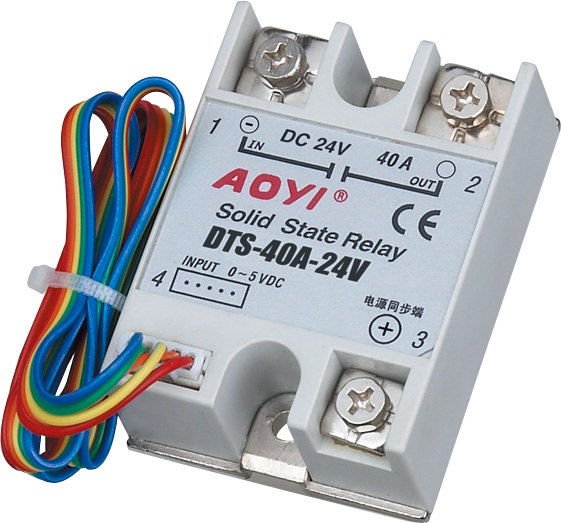

Single phase Adjustable 24V DC solid state relays SSR DTS-40A-24V
| FOB Price: | 3.00 - 6.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Contact Load: Low Power
- Protect Feature: Epoxy
- Size: Subminiature
- Usage: General Purpose
- Theory: Solid State Relay
- Model Number: DTS-40A-24V
- Brand Name: AOYI
Specifications
Load Current 10A,25A,40A
Load Voltage DC24V
Control Voltage DC0-5V,DC4-20mA
Voltage Bias DC12V
Current Bias ≤20mADC
Output Voltage Range 0-24VDC
Dielectric Strength 1500VAC
Insulation Resistance 100MΩ/500VDC
Ambient Temperature -20～+70℃
Mounting Method Bolt Fixing
Working Station Indicator /
Weight 115g
