Shanghai Minkvon Industry Co., Ltd.
China Manufacturer with main products: PTC Heater Series, Mica Heateter Series, Thick Film Heating Element, Mch Ceramic Heater, Temperature Controller, Power Cord and Wire Harness,... |

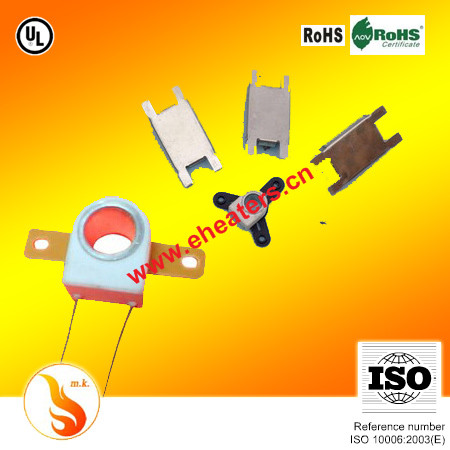

ptc thermistor for mosquito killer
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | cartons |
Quick Details
- Model Number: MZF-04
Specifications
PTC thermistors are ideal as heating elements because of their specific R/T characteristic. The positive R/T characteristic means that electric power consumed is automatically adapted to the ambient thermal conditions. If the ambient temperature is significantly higher than Tref or heat transfer is restricted, the resistance of the thermistor rises rapidly and power consumption is limited to a very low value. Thanks to these self-regulation properties, heating devices based on PTC thermistors can generally dispense with control and regulating components as well as overtemperature protection.
Specifications
| Model No. | Length *Width(mm) | Model No. | Length*Width(mm) | Model No. | Length*Width(mm) |
| 1 | 7×6 | 23 | 27.8×6 | 45 | 35×10 |
| 2 | 13.8×10.3 | 24 | 27.8×10.6 | 46 | 35×13 |
| 3 | 14×10.5 | 25 | 28×10 | 47 | 35×15 |
| 4 | 15×10 | 26 | 28.8×6.2 | 48 | 35.4×14.55 |
| 5 | 16×11 | 27 | 30×4 | 49 | 36×6 |
| 6 | 17.7×14.5 | 28 | 30×5 | 50 | 36×8 |
| 7 | 18×6 | 29 | 30×6 | 51 | 36.2×5.7 |
| 8 | 18.5×14.5 | 30 | 30×8 | 52 | 38×30 |
| 9 | 20×8 | 31 | 30×10 | 53 | 40×7 |
| 10 | 20×12 | 32 | 30×12 | 54 | 40×10 |
| 11 | 20×14.5 | 33 | 30×13 | 55 | 45×10.4 |
| 12 | 20×15 | 34 | 30×15 | 56 | 46×6 |
| 13 | 24×7 | 35 | 31×7 | 57 | 50×8 |
| 14 | 24×8 | 36 | 31×11 | 58 | Ф8 |
| 15 | 24×10 | 37 | 31.8×22.5 | 59 | Ф12 |
| 16 | 24×13 | 38 | 32×10 | 60 | Ф13 |
| 17 | 24×15 | 39 | 32×12 | 61 | Ф14.5×Ф4.3 |
| 18 | 24×16.5 | 40 | 32×13 | 62 | Ф16 |
| 19 | 24×20 | 41 | 32.7×10.2 | 63 | Ф16×Ф4 |
| 20 | 25×8 | 42 | 33×20.5 | 64 | Ф20.5 |
| 21 | 26×15.5 | 43 | 35×4 | 65 | Ф23.5 |
| 22 | 27.5×13.4 | 44 | 35×6 |
Notice:
- Metallization : Aluminum (Al) or Silver ( Ag)
- Curie temperature rang : 25℃～300℃
- Surface temperature can be selected between: 80℃～310℃
- Rate voltage: 6V～380V
- The data of rated resistance which depending on the heating speed and inrush current of PTC elements.
- The thickness of PTC elements can adjusted into 1.5mm～3.5mm according to customers' requirements.
| Temperature Sensor | NTC | MCH | ||
| Display Screen | LED | Digital Tube | LCD | |
| Temperature Regulation | Potentiometer | Push-button | Push-Switch | |
| Alarm | Buzzer | |||
| Indicator | Neon Lamp | LED Lamp | ||
| Electric Connector | Socket (Various Types) | |||
| Thermal Conductor | Aluminum Pad | Aluminum Shell | ||
| Power Cord & Wire Harness |
Europe VDE series UK BS1363 series Italy IMQ series Swiss SEV series Denmark series ---- Korea KSC series Japan PSE JET series Australia SAA series ---- Israel series South Africa SABS series ---- Argentina IRAM series Brazil series ---- Power Cord with Switch Wire Harness |
|||
Special Advantage of our Service:
Centralized purchase of all necessary parts above and equipage them into complete application devices before delivery is greatly helpful for your works as bellow:
- Completely avoid any quality problem from each separate part because of our inspection procedure (electric items' testing after they were equipage but before delivery).
- Reduce your packaging costs after the parts are assembled into complete application sets.
- When the complete application devices were delivered to you, they can reach you by one step. It will avoid any delay because of different delivery time from different parts from different sources.
- We can also help you to evaluate and choose the most competitive production bases on each part and organize the 3 works above so as to get the most competitive total cost of the application devices.
