line array system with 8'woofer&a 1.75'titanium compression driver
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: CVR
- Model Number: W-82B/W-15BP
Specifications
W-82B is a line array system which is made of a 8＂woofer, a 1.75＂titanium compression driver and high performance low distortion compression driver with innovative horn design of wave phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required,a W-82B will integrate seamlessly with W-15BP line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-82B is veryversatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
DESCRIPTION and APPLICATION
W-15BP is a dedicated high performance sub-bass system designed to augment the low frequency output of W-82B. The W-15BP features a highly efficient power amp module and incorporate DSP. W-15BP is a sub-bass enclosure which must be flown with W-82B. So its physical dimensions are identical to the W-82B and it is equipped with the same proprietary rigging system. It features with a 15＂woofer with magnet structure and suspensions engineered for maximum linear excursion.
Model | W-82B/W-15BP |
Type | Line array system |
Line array sub-bass system(W-15BP) | |
Frequency Response | 70Hz-20KHz±3dB |
42Hz-150Hz±3dB(W-15BP) | |
Power handing | LF 150W(RMS)300W(PEAK) |
HF 60W(RMS)120W(PEAK) | |
500W(RMS)1000W(PEAK)(W-15BP) | |
Sensitivity | LF 95dB(1W-1M) |
HF 108dB(1W-1M) | |
106dB(1W@1M)(W-15BP) | |
Max-S.P.L | LF 117dB(PEAK/1M) |
HF 126dB(PEAK/1M) | |
133dB(PEAK/1M)(W-15BP) | |
LF section | 1×8"(210mm) woofer |
50mm(2in)coil | |
Components | 1×15"(380mm) woofer |
100mm(4in)coil(W-15BP) | |
Nominal impedance | 8 ohm |
8 ohm(W-15BP) | |
HF section | 1×1.75"compression driver |
with 44mm titanium diaphragm | |
Nominal impedance | 8 ohm |
Output section | 2-channel |
Dispersion pattern | 110°H×9°V |
Finish | Water-proof,wear-resistant textured black paint |
Array design | Arrays of less than 3×W-82B will |
provide poor dispersion control and | |
are neither recommended nor supported | |
Speaker cables | 1(+)1(-)Built in crossover |
| |
Rigging system | Please refer to the W-82B user |
manual before any operation | |
Input connectors | 2×NL4MP speakon |
Recommend crossover | 70Hz-20kHz |
| |
45Hz-100Hz(W-15BP) | |

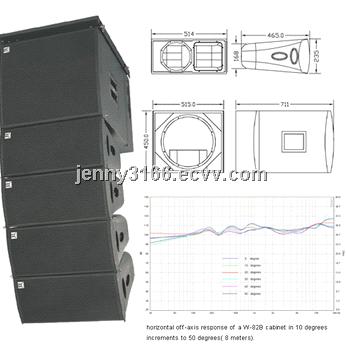

Dimensions | 514×235×460mm(W×H×D) |
515×450×590mm(W×H×D)(W-15BP) | |
Package dimensions | 575×305×530mm/0.09cbm |
585×520×660mm/0.2cbm(W-15BP) | |
Enclosure | PU(W-82B)/plywood(W-15BP) |
Net weight | 15kg (W-82B)/ 32kg (W-15BP) |
Gross weight | 17kg (W-82B)/ 34kg (W-15BP) |
