China Manufacturer with main products: Truck Crane, Truck Mounted Crane, Wheel Loader, Motor Grader, Bulldozer, Excavator, Road Roller, Crawler Crane |

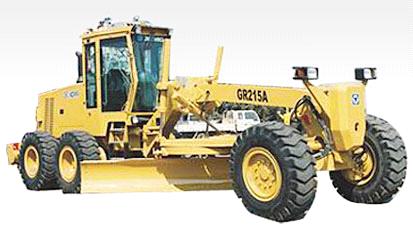

motor grader GR215A
| FOB Price: | 99,000.00 - 100,000.00 USD/Unit |
|---|---|
| Supply Ability: | 100 Unit/Units per Month |
| Shipping: | within 10 days for ready stock, shipping from China port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | nude packing |
Quick Details
- Brand Name: XCMG
- Model Number: GR215A
Specifications
| Basic specification | |
|---|---|
| Engine model | QSB6.7 6CTA8.3 |
| Rated power/speed | 164kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 9180×2625×3300mm |
| Operating weight(Standard) | 16100kg |
Performance specification | |
| Travelling speed ,forward | 5, 8, 11, 19, 23, 38 km/h |
| Travelling speed ,reverse | 5, 11, 23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3～1.8MPa |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width ×height | 4270×610mm |
