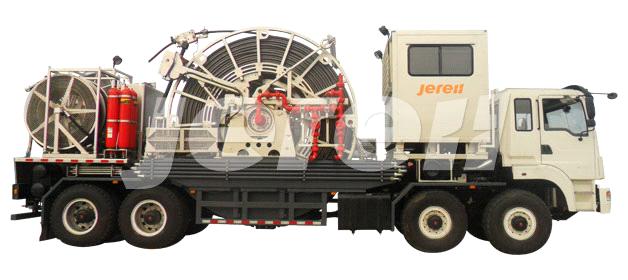

Truck Mounted Coiled Tubing Unit

Inquiry Now

Related products from verified members

PDC inserts - PDC cutters insert for PDC bit

Price:

Min. Order:
Nozzle(Z)

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Features:

? Double-truck mounted design with more mobility to adapt to harsh road conditions on mountains and hills.
? Heavy-load frame-type girder of the main carrier improves load capacity to 66,000lbs.
? Mass reel can carry 2" or larger diameter tubing and the integral design makes reel replacement simple and safe.
? The design of BOP backup system can meet customer requirements of dual BOPs, expanding the operation of equipment.
? The auxiliary truck is equipped with injector hydraulic tubing feeding through system, reducing on-site labor.
? Equipped with driver interface for yard spooler and tubing blower, extending the operating range of CTU.
? Standard serial numbers for hydraulic lines ensures worldwide standardization of Jereh's CTU, which is easy for maintenance and services.

Specifications:

Model	Model LGC450 Truck Mounted Coiled Tubing Unit	Model LGC360 Truck Mounted Coiled Tubing Unit	Model LGC270 Truck Mounted Coiled Tubing Unit
Chassis	4Standard Configuration:Mercedes-benz 4151 for main truck, Mercedes-benz 4144 for support truck Optional: BEIBEN 3134 for support truck
Power Taking Form	Chassis	Chassis	Chassis
Reel	LGGT 148-80-72	LGGT 148-80-72	LGGT 120-72-72
Reel Capacity	2"-5,500 m (1.75"-7,000 m)	2"-5,500 m (1.75"-7,000 m)	1.5"-5,500 m (1.75"-4,000 m)
Injector Model	ZRT-100 K	ZRT-80 K	ZRT-60 K
Injector Continuous Pulling Capacity	45,000 kg (100,000 lb)	36,000 kg (80,000 lb)	27,000 kg (60,000 lb)
Injector Continuous Snubbing Capacity	22,500 kg (50,000 lb)	18,000 kg (40,000 lb)	13,500 kg (30,000 lb)
Well Control Devce Specification	4.06" (Optional: 3.06"/5.12")	4.06" (Optional: 3.06")	3.06" (Optional: 2.56")
Max. Working Pressure	105 MPa (15,000 psi)(Optional: 70 MPa)	105 MPa (15,000 psi)(Optional: 70 MPa)	105 MPa (15,000 psi)(Optional: 70 MPa)
Crane	Max. Hoisting Capacity: 18,000 kg (Optional)	Max. Hoisting Capacity: 18,000 kg (Optional)	Max. Hoisting Capacity: 18,000 kg (Optional)
