Home >Products Catalog > Vending Machine > commericial use ice vending machine coin operated combo ice making vending machine

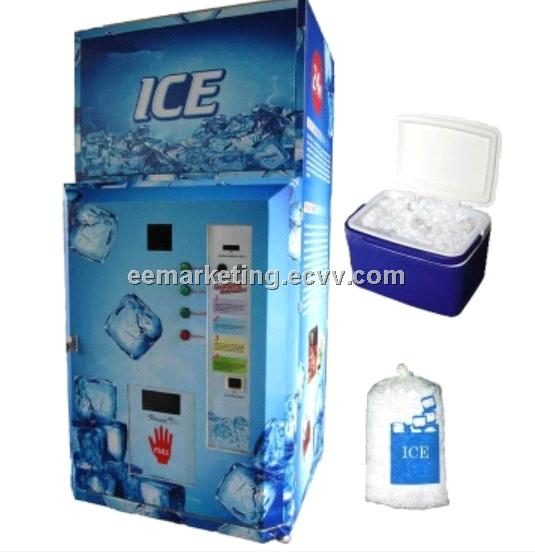

commericial use ice vending machine coin operated combo ice making vending machine

Supply Ability:	500 Piece/Pieces per Week
Shipping:	FOB / EXW shenzhen
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	1pc/ wooden safety box

Quick Details

Brand Name: magic love
Model Number: VM-1301
ICE vending machine: compact with bar, hotel, resturant, hospital

Specifications

vending machine for snacks & drinks /condom/ tissue / wine /shoes /dialy products/pure water

candy /gumball /toys

which compact with the metro station, bus station, supermarket, shop, outdoor street,hotel, beach,libary,musem, theatre,bank,office, factory, travel place, public square etc

1. Luxurious waterproof steel cabinet, front-door-open design, safe and hygenic, durable and easy to install.
2. All parts contacting with ice and water adopt food grade stainless steel #304.
3. Advanced Intelligent coin, bill and IC card payment control system.
4. GSM remote reporting and controlling system for option .
5. Fully automatical purification, ice making, ice packing and vending. .
6. Highly efficient and stable bagging system, dispensing bag, filling ice in the bag and sealing the bag automatically.
7. Optional bulk ice dispensing and auto bagged ice to meet customer's requirements.
8. Automatic machine stop for water full and shortage of ice/water/bag with alarm.
9. Advanced Reverse Osmosis purification system, NSF standard .
10. Water purifying system:

1)7 stages of effective purification+2 sterilization (UV + Ozone)

2)First stage: Quartz sand filtration

3)Second stage: Activated carbon filtration

4)Third stage: PP filtration

5)Fourth stage: PP filtration

6)Fifth stage: RO purification

7)Sixth stage: Postposition activated carbon filtration

8)Seventh stage: mineralization

9)Eighth stage: UV sterilization (2 UV lamps)

10) Ninth stage: Ozone sterilization

No.	Item	Parameter
1	Voltage	Ac 220V-50Hz/ Ac 110V-60Hz
2	Total Power	3KW
3	Current Rating	220V 13.7A/110V 27.3A
4	Production Capacity	450KG/24H(under 20°C)
6	Ice Cube Size	2.2cm×2.2cm×2.2cm
7	QTY of Ice Cube Mode	540
8	Type of Compressor	3P
9	refrigerant	R404a
10	Ice Making Type	Circulated Spray
11	Cooling System	Fan Cooling(Can change to water cooling)
12	Ice Storage Capacity	200KG
13	Storage Tank Material	SUS 304
14	Source Water	Tap Water
15	Source Water Pressure	≥0.1MPa
16	Inlet Water Flow Rate	≥30L/H
17	Pure Water Production	400GPD/600GPD/800GPD/1300GPD/1900GPD/3500GPD
18	Water Vend Charge Type	By Flow
19	Vending Function	IC Card/Bill/Coin/Give Change/GSM Remote Monitor(Can Choose by different needs)
20	Ice Vend Type	Bulk Ice/Bag Ice
21	Bag Ice Procedure	Automatic packing, counting weight, sealing
22	Bag Dimension	22cm×50cm/22cm×75cm
23	Bag Thickness	0.05mm(Single layer)
24	Bag Ice Weight Range	1KG to 5KG
25	QTY of Bags	About 300 PCS
26	Dimension	W180cm×D100cm×220cm
