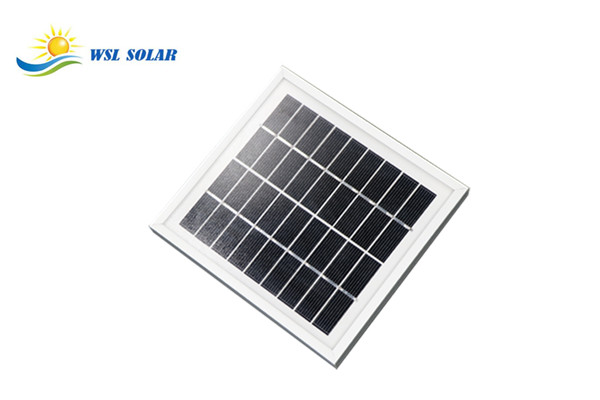

9V 2W Solar Panel, with High Efficiency PERC Solar Cell, Tempered Glass Laminated
| Shipping: | By sea or by air, depending on order quantity |
|---|---|
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, Eastern Europe, Oceania, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Max. Power: 2W
- Number of Cells: 18pcs
- Size: 130x140x17mm
- Material: Monocrystalline Silicon
- Brand Name: WSL Solar
- Model Number: WSL-C022
Specifications
WSL Solar's 9V 2W solar panel is built with the latest PERC monocrystalline solar cell. It is laminated by tempered glass, which is durable and robust. this solar panel is ideal for use in off grid applications such as solar powered LED lighting, IoT devices, solar traffic sign, small solar powered system etc.
Features:
- with latest high efficiency PERC monocrystalline solar cell
- Positive power tolerance
- Tempered glass laminated, high transmission, durable & robust
- Withstanding challenging environmental conditions
- Waterproof, scratch resistant & UV resistant
- Excellent performance under low light environments
Specification
| Item No. | WSL-C022 |
| Dimension | 130x140x17mm |
| Peak Power (Pmax) | 1.8W |
| Voltage at Pmax (Vmp) | 9V |
| Current at Pmax (Imp) | 200mA |
| Open Circuit Voltage (Voc) | 10.8V |
| Short Circuit Current (Isc) | 220mA |
| Cell Type | PERC Monocrystalline Solar Cell |
| Power Tolerance | ±5% |
| Encapsulation method | 3.2mm Tempered glass |
| Back sheet | TPT |
| Product Warranty | 5 Years |
| Lead time | 25 Days |
| Storage temperature | -20°C ~ 65°C |
| Working temperature | -40°C ~ 85°C |
| Standard Test Conditions (STC) | 1000W/m2, 1.5AM, 25°C Cell temperature |
WSL Solar has been a quality and professional manufacturer of and solar solution provider in China since 2006.
