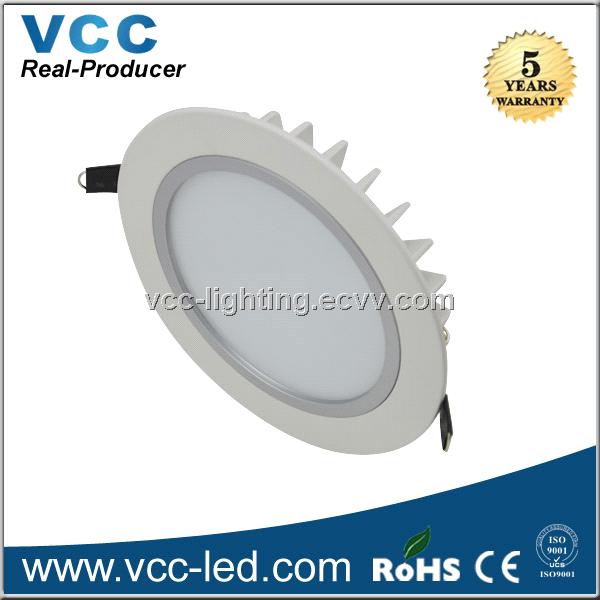

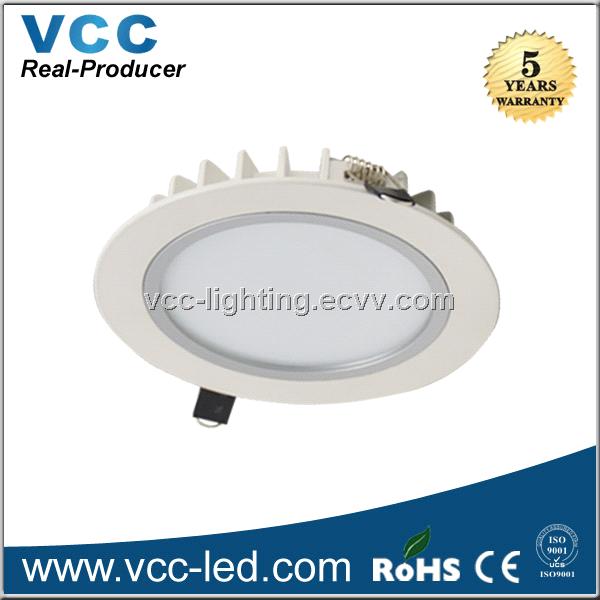

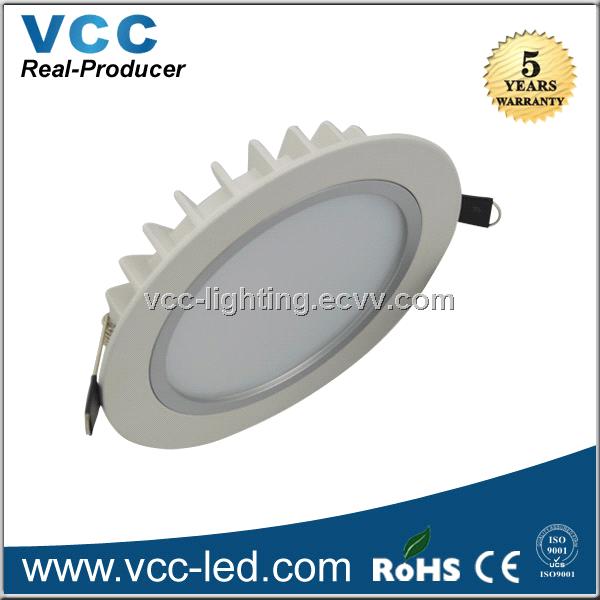

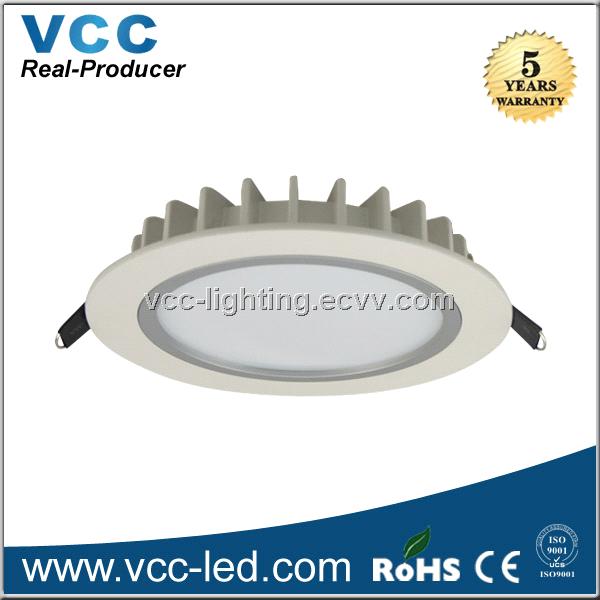

120 degree 15W SMD led downlight 6 inch Super-Thin

FOB Price:	10.00 - 30.00 USD/Piece
Supply Ability:	1,000,000 Piece/Pieces per Month
Shipping:	By Fedex & DHL & UPS & EMS/ By Air/ By Sea
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1). 1PC/1 White Box 2). 50 QTY/CTN (Brown Carton)

Quick Details

Input Voltage: AC90-277V
Power: 15W
Light Source: 75 x2835 SMD LED
Chip Brand: Epistar & Bridgelux
Lumen: 1300lm
Lamp Luminous Efficiency(lm/w): 85-95lm/W
Beam Angle: 160 degree
CRI (Ra>): 75-80
Color Temperature (CCT): 2700-7000K
Working Temperature: -20-45 degree
Working Lifetime (Hour): 50000H
Lamp Body Material: Aluminum
IP Grade: IP54
Size: 200x H30mm
Hole Size: 175mm
Certification: CE & ROHS
Brand Name: VCC
Install Style: Downlight

Specifications

Specifications

Super-Thin SMD 6 inch 15W Dimmable Led Downlight

1). It can be made from 9W to 24W (4 inch -8 inch are optional)

2). 3 YEARS WARRANTY

3). High CRI, Ra>80

4). High PF, PF>0.9

5). CE & Rohs Approval

6). Super-Thin modern apperance with only 30mm Height

Item	Technica Data	Item	Technica Data
Led Type:	SMD 2835	Beam Angle:	160 degree
Power:	15W	Lumen:	1300LM
Input Voltage:	AC90-277V	CRI (Ra>):	75-80
Working Temperature:	-20-45 degree	Working Life:	50000H
Frequency:	50/60HZ	Operation Humidity:	10%-90%
Color Temperature:	2700-7000K	Power Factor:	>0.85
Product Size:	φ200xH30mm	Hole Size:	φ175mm

TDA Series Led Downlight with 30mm Height

Model NO.	Watt (W)	Lumen (LM)	Dimension	Hole Size	Input Voltage
VC-TDA4L-P09	9W	780LM	Φ148x H30mm	Φ120mm	AC90-277V
VC-TDA5L-P12	12W	1050LM	Φ175x H30mm	Φ150mm
VC-TDA6L-P15	15W	1300LM	Φ200x H30mm	Φ175mm
VC-TDA8L-P24	24W	2040LM	Φ230x H30mm	Φ200mm

Features:

1). General Indoor Illumination

2). No Infrared and UV

3). Aluminum Reflector to Reduce Glare

4). Super bright, high energy-saving

5). Low power 2835 LED Chips, Save Cost & Lighting Uniformity & Long Lifespan

6). Epistar & Bridgelux chips and Isolated Driver promise high quality

7). All Models can be Dim to 0%-100% with Universal or Trailing Edge Dimmer

8). No RF interference, No flickering

9). No mercury and other hazardous materials fully RoHS-compliant

Application:

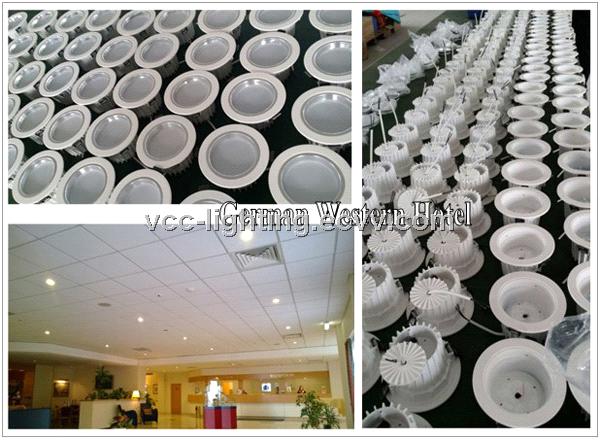

Indoor Places: e.g. office, hospital, public, transportation, shopping mall, super market, retail shop, warehouse, car park, restaurants, schools and corridor etcs

Serivce:

1). Short Delivery time: 5-14 working days
2). Flexible Payment Term: T/T, L/C, Western Union, PayPal etcs
3). No Limited of MOQ to support trial order
4). Fast Reply: All enquiries or emails are promised to be replied within 1 hour
5). OEM & ODM are supported: your required customized Lighting can be designed and produced by us
6). Project orders are supported: kinds of project solutions are offered to meet your demands
7). Customer protective policy: protect clients' marketing and design ideas, be secret with their private information
