Home >Products Catalog > centrifugal pump > High-Rise Building Water Supply Multi-Stage Centrifugal Pump

High-Rise Building Water Supply Multi-Stage Centrifugal Pump

FOB Price:	200.00 - 500.00 USD/Piece
Supply Ability:	300 Piece/Pieces per Month
Shipping:	after receive deposit 20days
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

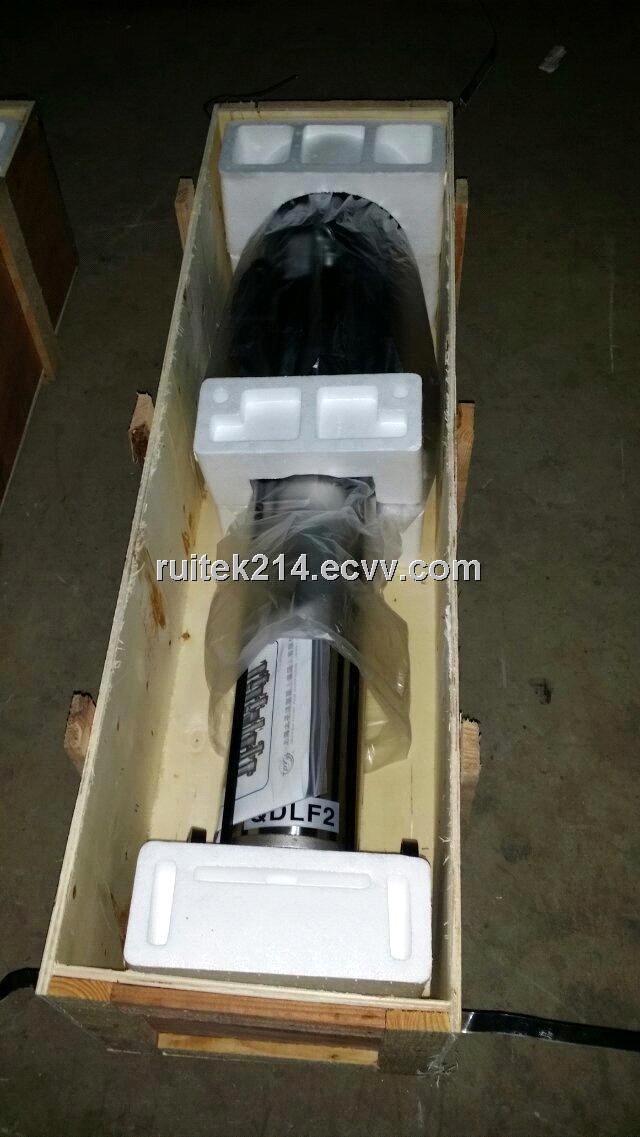

Packaging Details:	plywood FOR pump

Quick Details

Flow Rate: 1001 - 1500GPH
Rated Current: 16 - 21A
Certification: ISO9001:2000
Voltage: 24V
Brand Name: RTK
Model Number: LG-B
Structure: Multistage Pump
Usage: Water
Power: Electric
Standard or Nonstandard: Standard

Specifications

Product overview

CDLF series vertical multistage centrifugal pump (hereinafter referred to as the pump) is learned at home and abroad advanced technology and the design and manufacture of non vertical multi-stage centrifugal pump, using the standard vertical motor and quick assembling type mechanical seal, the replacement is very convenient. Pump parts are made of stainless steel (304\316) material, can be applied to mildly corrosive media. The product can replace the foreign CR, CRN and other similar products. Products on the market, with its high efficiency and energy saving, reliable quality, the use of a wide range of features, well received by the user's favorite. LG-B type detachable high-rise building water supply multi-stage centrifugal pump (low speed n=1450r/min) is the company based on high building water market needs and National Fire Protection Agency GB 6245-1998 "performance requirements and test methods. " standards and research and development of new products. For conveying not containing hard particles and physical chemical reelecting similar to water used media. Flow rate range is 5 ～ 400m3/h, lift range is 22 ～ 300m, supporting power range is 1.5 ～ 250KW, range 40 ～ φ 200mm φ. The same pump outlet can be provided with 1 ～ 5 outlet.

Product features

LG-B type pump is composed of motor and pump which are connected, a pump shaft and a motor shaft clamp type couplings, ensure the pump and motor absolute coaxial pump smooth running, low noise. The motor is Y, Y2 three-phase asynchronous motor, is convenient for user to replace, the rigid connection, without the use of correction. The shaft seal uses a mechanical seal, pump is a detachable structure is convenient to replace mechanical seal.

Product use

LG-B type detachable high-rise building water supply multi-stage centrifugal pump is especially suitable for residential, hotels, office buildings, high-rise building constant pressure water supply, fire, spray water supply equipment with matching pumps; and is suitable for a chemical process tower automatic water supply, system voltage, production process, circulation water without distance conveying, boiler water supply, water supply equipment use. Can transport liquid at room temperature (< 80 ℃) (hot water type conveying temperature less than 105 ℃ medium) of water or a physical, chemical properties are similar to the water medium

Technical parameters:

25LG(R) 3-10 (LG-B)	2	2.4 3.0 4.7	0.67 0.83 1.31	20.8 20.0 15.4	2900	0.75	38 42 44
	3	2.4 3.0 4.7	0.67 0.83 1.31	31.2 30.0 23.1		1.1	38 42 44
	4	2.4 3.0 4.7	0.67 0.83 1.31	41.6 40.0 30.8		1.5	38 42 44
	5	2.4 3.0 4.7	0.67 0.83 1.31	52.0 50.0 38.5		1.5	38 42 44
	6	2.4 3.0 4.7	0.67 0.83 1.31	62.4 60.0 46.2		2.2	38 42 44
	7	2.4 3.0 4.7	0.67 0.83 1.31	72.8 70.0 53.9		2.2	38 42 44
	8	2.4 3.0 4.7	0.67 0.83 1.31	83.2 80.0 61.6		2.2	38 42 44
	9	2.4 3.0 4.7	0.67 0.83 1.31	93.6 90.0 69.3		2.2	38 42 44
