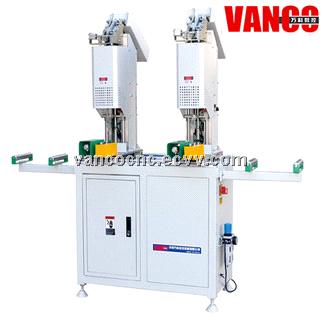

Automatic Steel Lining Screw Fastening Machine for PVC Window and Door ASD-200/400

Supply Ability:	10 Set/Sets per Month
Shipping:	15 days after pre-payment
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	PLYWOOD

Quick Details

Brand Name: VANCO
Model Number: ASD-200/400

Specifications

Automatic Steel Lining Screw Fastening Machine for PVC Window and Door ASD-200/400

Function:

Used for automatic screw fastening through self-tapping screw connection between two workpiece, especially suitable for plastic profiles and strengthen steel liner.

Features:

1. Complete fastening of profile and steel liner without drilling holes by stamping on switch in one time.

2. Adopted high torque of electric motor overload protection, avoids the gas consumption is too large when using gas motor attack nails instability caused by the equipment. The motor automatic overload protect when tapping screw failure.

3. Low velocity motor can reduce wear of nail head effectively.

4. Automatic nail feeding device with convenient operation and high efficiency.

5. Automatically adjust according to the profile height and process different profiles without adjustment.

6. Design of quick split nail when tapping screw failure.

7. Tapping screw rod in device, change of tapping screw rod only need 10 seconds.

8. Screw spacing distance can be easily adjusted.

9. Each head installed with profile detection device, user adjust the machine heads spacing, the equipment can automatically identify the profile section when adjusting the head distance and make the corresponding head in work state, no working if not detect the profile , high efficiency and can save 3-5 workers.

Technical Parameter:

Power supply: 220-240V

Rated frequency: 50Hz (-5%~5% error)

Rated power: 150W

Air pressure: 0.5-0.8Mpa

Screw model: 3mm~5mm*(11mm-19mm) (Diameter*L)

Tapping screw height: 25-120mm

Profile width: ≤120mm
