Home >Products Catalog > Cutting & Bending machine > Hydraulic press brake,sheet bending machine,steel bending machine WC67Y-125T3200

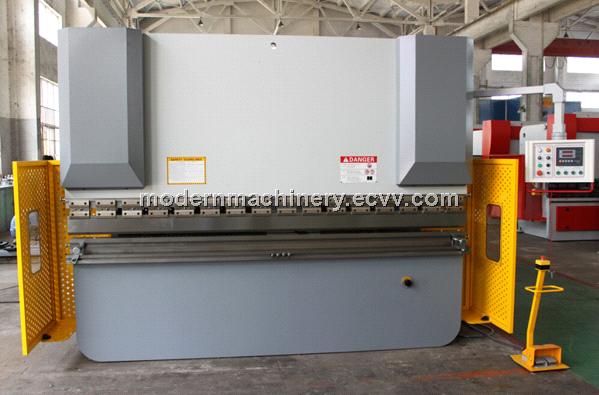

Hydraulic press brake,sheet bending machine,steel bending machine WC67Y-125T3200

Supply Ability:	80 Set/Sets per Month
Shipping:	Shanghai
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Pipe Bending

Price:10.00-1000.00 USD/Piece

Min. Order:10 Pieces
Welded Wire Fence Welding Machine with Bending ...

Price:

Min. Order:1 Set
Goose Press Brake toolings,press brake punch an...

Price:

Min. Order:
copper busbar bending machine optional cutting ...

Price:5,000.00-8,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	seaworthy

Quick Details

Condition: New
Brand Name: Modern
Model Number: WC67Y-125/3200
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon Steel
Power: Hydraulic
Automation: Automatic
Extra Services: End Forming
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas

Specifications

Name of the machine:
hydraulic press brake, press brake, press brake machine, sheet metal press brake, plegadora,lamina folding machine,hydraulic bending machine,CNC press brake,press brake machine;

Feature of the steel bending machine:
The whole structure of the metal plate bending machine
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, groove steel and etc. The stress of the parts has been eliminated by vibration. The machine enjoys high accuracy and high strength and good rigidity.
2. Hydraulic system
All the hydraulic sealing parts of the metal plate bending machine are up to the state standard and have excellent quality to avoid leakage. Pump oil filters and motors are products of famous producers inland. All of them are advanced performances and reliable quality. All hydraulic parts have passed strict inspection and test to eliminate hidden trouble before usage.
3. Synchro control system
The slide synchro system of the sheet metal press brake adopts steel torsion bar synchro system with very simple structure but very high accuracy. 2 ends of slide has 2 synchro fork which make the slides movement is always parallel to the working table. And this will make the movement effect balanced during operation.

Specification of steel bending machine:

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kw)
125/2500	1250	2500	2000	350	150	410	7.5
125/3200	1250	3200	2600	350	150	410	7.5
125/4000	1250	4000	3200	350	150	410	7.5
125/5000	1250	5000	4000	350	150	410	7.5
125/6000	1250	6000	4500	350	150	410	7.5
160/2500	1600	2500	2000	350	150	425	11
160/3200	1600	3200	2550	350	150	425	11

We offer various standard models of plasma flame cutting machine. Tailor customized service is available to fully catering user requirement.

For further detail specification or further requirement,pls kindly contact with us
. We shall be ready to service you any time.
