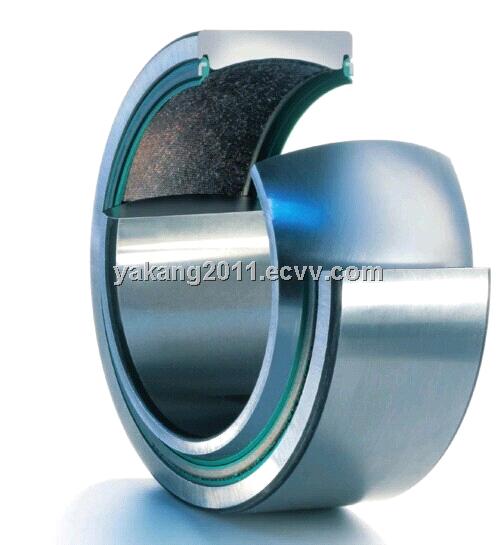

Maintenance-free SKF Spherical Plain Bearings GE 110 TXA-2LS

Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	Within 3-5 days upon payment receipt
Payment Terms:	T/T

Inquiry Now

Related products from verified members

High Production Efficiency Bearing Machining Ma...

Price:155000.00 USD/Piece

Min. Order:1 Piece
air bearing caster power source is compressed a...

Price:

Min. Order:
bearing

Price:

Min. Order:
WEA9 slewing drive for Inengineering machinery

Price:

Min. Order:1 Piece
NSK precision bearing

Price:1.00-10,000.00 USD/Set

Min. Order:5 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	in carton or pallet

Quick Details

Brand Name: SKF
Model Number: GE 110 TXA-2LS

Specifications

TXA-2LS spherical plain bearings have rings that are through-hardened and ground. The inner ring sliding surface has been plated with hard chromium. The outer ring, which contains the TX fabric liner, is split axially and held together by a band inserted in a groove. Smaller sizes are fitted with LS high performance triple lip seals. TX spherical plain bearings are equipped with high-performance LS seals so that the bearing can achieve maximum service life even under contaminated conditions.

The technical data of GE 110 TXA-2LS:

d: 110mm

D: 160mm

B: 70mm

C: 55mm

Angle of tilt: 6 degrees

Basic dynamic load rating: 1860KN

Basic static load rating: 3100KN

Mass: 4.8kg

The following are SKF GE series Spherical Plain Bearings:

GE 50 CJ2	GE 140 TXA-2LS
GE 50 TXE-2LS	GE 140 TXG3A-2LS
GE 50 TXG3E-2LS	GE 160 TXA-2LS
GE 60 CJ2	GE 160 TXG3A-2LS
GE 60 TXE-2LS	GE 180 TXA-2LS
GE 60 TXG3E-2LS	GE 180 TXG3A-2LS
GE 70 TXE-2LS	GE 200 TXA-2LS
GE 70 TXG3A-2LS	GE 200 TXG3A-2LS
GE 80 TXE-2LS	GE 220 TXA-2LS
GE 80 TXG3A-2LS	GE 240 TXA-2LS
GE 90 TXE-2LS	GE 260 TXA-2LS
GE 90 TXG3A-2LS	GE 280 TXA-2LS
GE 100 TXA-2LS	GE 300 TXA-2LS
GE 100 TXG3A-2LS
GE 110 TXG3A-2LS
GE 110 TXA-2LS
GE 120 TXA-2LS
GE 120 TXG3A-2LS
