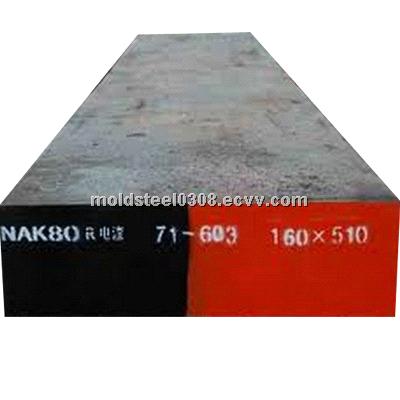

NAK80 plastic mould steel tool steel

Supply Ability:	3,000 Ton/Tons per Month
Shipping:	Huangshi,Wuhan,Foshan,or customer's appointed port.
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	in seaworthy packing, steel wire and steel strips bundled.

Quick Details

Standard: AISI,ASTM,BS,DIN,GB,JIS
Grade: NAK80 / GB 10Ni3MnCuAl
Thickness: 50-320mm
Brand Name: Rising
Model Number: NAK80 / GB 10Ni3MnCuAl
Type: Steel Plate
Width: 90-1000mm
Length: 2m-6m
Round bars: Dia 60-550mm

Specifications

Product Name: PLASTIC MOULD STEEL---NAK80 / GB 10Ni3MnCuAl

Size Available:
Plate bar: Milled: T: 70-320mm W: 90-1000mm
Black: T: 50-320mm W: 90-1000mm
Length: 2m—6m
Round bar: Turned: Dia 90-505mm
Black: Dia 60-550mm

Detailed Description

Principal Design Features
age-hardened for uniformity of hardness throughout, even in heavy section. when welded, leaves no witness lines after re-aging, uniform grain structure with no pin holes, inclusions or hard spots.never needs stress relieving, even after heavy maching, super polishability, even over welded areas .Very good workability and mirror polishing property, suitable for thermoset molding of general resin.

Pre-hardened to HRC36-43, ,heat treatment and deformation could off.

Solution treatment and heat treatment to HRC36-43.
Applications

Used for high precision mirror plastic mould, high appearance home electronic plastic mould, clear lens molds.

extremely critical diamond finish applications, molds requiring special EDM finish

Technique: EF/ ESR (melting) + forging+ hot rolled +annealed

steel grade: NAK80

Delivery condition: EAF+LF+VD+(ESR),forged, annealed, UT tested, peeled or machined

Tolerance: 0/+2mm

UT grade: SEP1921,Group3, class D/d

Payment item: T/T,L/C

Chemical Composition(for reference only):
AISI (H10): C: 0.1-0.2 Mn: 1.4-2.0 Si: 0.45max Al: 0.7-1.3 Ni: 2.9-3.4 Cu: 0.8-1.2 Mo: 0.2-0.5 V: 0.25-0.75 P: ≤0.03 S: ≤0.03

Equivalent Grades:
GB: 10Ni3MnCuAl
JIS: NAK80

Heat Treatment:
Harden: Preheat at 840℃- 870℃ Cool in air, iol or into salt bath held at 200℃- 500℃ and then air cool.

Solid solution : at 850℃ Cool in air

Aging : at 520℃-540℃ Cool in air

Shaping: Hot forged / Hot rolled

Surface condition: Black surface/ turning / milling / peeling / polishing.

Weight(kg): Round bar=0.00617*R*R*L
Flat bar=0.00785*T*W*L
