Jinan Dwin Technology Co., Ltd.
China Manufacturer with main products: Laser Engraving Machine, Laser Cutting Machine, CNC Router, Laser Engraving & Cutting Machine, Woodworking Machine, Cutting Machine, CNC... |

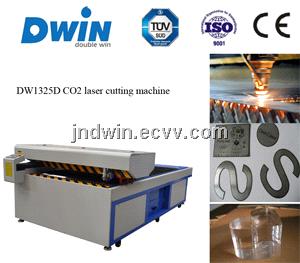

DW1325D New Design Co2 Metal Laser Cutting Machine
| FOB Price: | 6,000.00 - 7,900.00 USD/Set |
|---|---|
| Supply Ability: | 80 Set/Sets per Month |
| Shipping: | 8 days after received your deposit or payment |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood box ,free of fumugation |
Quick Details
- Condition: New
- Laser Type: CO2
- Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood
- Cutting Thickness: depending on power and materials
- Cutting Area: 1300mm*2500mm
- Cutting Speed: 0-10000mm/min
- CNC or Not: Yes
- Cooling Mode: Water Cooling
- Control Software: DSP
- Graphic Format Supported: AI,PLT,DXF,BMP,DST,DWG,LAS,DXP
- Brand Name: DWIN
- Model Number: DW1325D
- Certification: CE,ISO
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
DW1325D metal laser cutting bed
Specification :
Model: DW1325D
Working size: 1300mm*2500mm,
Laser power : RECI Z6/Z8
Cutting speed : 0 – 50 mm/s
Reposition accuracy: ±0.05mm
Working voltage: AC110- 220V±10%,50-60Hz
Consuming power: less than 1,000W
Working temperature: 0 - 45°C
Working humidity: 8 - 95%
Minimum letter size: English :1 x 1mm Chinese:2 x 2mm
Supported file format: BMP, HPGL, PLT, DST, DXP, and AI
Driving system: steppermotor
Laser tube cooling type: CW5000
Other auxiliary equipment: Exhaust-fans and air-exhaust pipe or rdcam
Laser control software: DSP control system Leetro
Compatible software : CorelDraw AutoCAD Photoshop
Laser tube type: Sealed CO2 glass laser tube
Standard configurition:
1, USB port
2, RECI Tube
3, Chiller CW5000
4,Taiwan lead screw&linear guide
5.special laser head for cut the metal
6.can save lot of the oxygen
7., American Imported 26 mirrors &focus(water cooled)
Cutting speed:
|
Thickness |
Speed |
|
0.8mm stainless |
1800mm/min |
|
1mm-1.5mm stainless |
1000-1200mm/min |
|
1mm carbon steel |
1800mm/min |
|
1.5mmcarbon steel |
1000-1200mm/min |
|
10mm acrylic |
400mm/min |
|
20mm acrylic |
90-200mm/min |
|
5mm MDF board |
1000mm/min |
|
10mm MDF Board |
300-500mm/min |
|
18mm MDF board |
90-150mm/min |
