SINO Heavy Machinery in China Co., Ltd.
China Manufacturer with main products: Truck, Contruction Machinery, Spare Part, Sinotruk, Semi Trailer, Concrete Mixer, Transportation Truck, Howo |

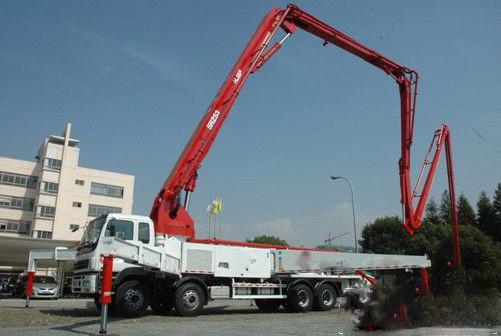

XCMG, SANY BRAND Concrete Pump Truck With Swching technology
| FOB Price: | 1.00 - 2.00 USD/Unit |
|---|---|
| Supply Ability: | 100 Unit/Units per Week |
| Shipping: | within 20-30 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | nude |
Quick Details
- Model Number: SHMCHJC5391THB-51
- Brand Name: SINOTRUK SHMC
- Condition: New
Specifications
Specifications:
|
Model |
SHMCHJC5391THB-51 |
|
Dimension L*W*H |
13950*2500*4000 |
|
Truck GVW |
39000kg |
|
Folding Type |
5 sections RZ-type |
|
Boom Swirling Angle |
90/180/180/250/180 . |
|
Boom Vertical Height |
50.8m |
|
Boom Horizontal Length |
46.8m |
|
Boom Vertical Depth |
36m |
|
Minimum Boom Height(Extended) |
10.3m |
|
Turntable Rotation Angle |
365 . |
|
Outrigger Operating Method |
Rear H-shaped outrigger |
|
Maximum Span Front Outrigger(Extended) |
10.7m |
|
Maximum Span Rear Outrigger(Extended) |
11.2m |
|
Theoretical Concrete Output |
170m3/h with high pressure 120m3/h with low pressure |
|
Theoretical Pumping Pressure |
High pressure: 12Mpa Low pressure:7Mpa |
|
Conveyor Cylinder Bore |
230mm |
|
Conveyor Cylinder Stroke |
2000mm |
|
Hopper Capacity |
600L |
|
Oil Pressure |
32Mpa |
|
Remote controller |
Germany HBC |
|
Hydraulic Oil Cooling |
Air cooling |
|
Model of chassis |
Isuzu CYH51Y |
|
Engine Power |
287kw/1800rpm |
|
Emission Standard |
Euro III |
Description:
1. In 1982, the China's first concrete pump truck rolled off the production line in Shantui Chutian.
2. Sino Heavy Machinery CO., LTD(SHMC) is the authorized company of Shantui. In 2013, Shantui-SHMC S9 concrete pump trucks made greater achievements.
3. Advantages:
A. Energy Saving. Supporting overall power matching and automatic adjustment of engine and oil pump; Design with a motor-driven radiator to ensure automatic control, high efficiency and energy conservation; Average fuel consumption for pumping operation reduced by 20%.
B. Stand wear and tear.
End elbow-designed with patented technology to ensure prolonged life time up to 30,000m3.
Concrete piston- Made of high-strength composite materials to ensure prolonged life time to 25,000m3.
Glasses plate-Mounted with cemented carbide to ensure prolonged life time up to 50,000m3.
Cutting ring-Mounted with cemented carbide to ensure prolonged life time up to 25,000m3.
Conveyor cylinder-Inner chrome-plated coating 30um, hardness>HV900, with extended life cycle up to 15,000m3.
