V Wire Wrapped Johnson Continuous Slot Screen Flat Wedge Wire Panel
| Supply Ability: | 260 Square Meter(s) per Day |
|---|---|
| Shipping: | by sea, by air, by express mail, by train |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden box, pallet, container |
Quick Details
- Width: to order
- Material: ss304, ss316L, s321
- Type: Mine Sieving Mesh
- Usage: Liquid Filter
- Brand Name: FY-XL
- Length: to order
- Thickness: 5-30mm
- Filter Rating: 0.1-10mm
- Hole Shape: Square
- Model Number: FY-XL-06
- Name: V WIre Johnson Screen Panel
- Welded Type: v wire wrapped welded
- profile wire: 2.2x3.0
- support wire: 2.5x4mm
- flow slot: 0.1-10mm
- frame size: 5x20, 4x40
- Weight: 18-25kg/sqm
- Certification: ISO, CCIC
Specifications

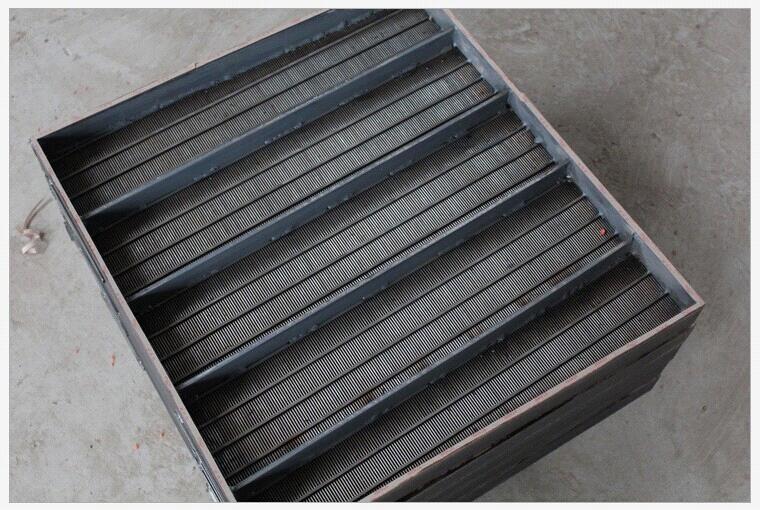

Flat Wedge Wire Panel
Flat Wedge Wire Panel are manufactured to the highest standard using quality stainless steel Wedge Wire. We deliver high open area screens built for purpose. the combination of quality workmanship, superior materials, accurate slots and high open areas ensures that our panels meet the needs of the most demanding applications.
Material: low Carbon Galvanized (LCG), Stainless Steel(SS) and Galvanized Steel.
Slot (mm): 0.1,0.25,0.50,0.75,1.00,1.50,2.00,3.00 also achieved upon customer request.
Profile Wire: #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
Support Rod:1.V shaped. #63 (1.5*2.5mm), #93(2.3*3.5mm), #118(3.0*4.6mm) etc.
2.Steel Flat: 1.5*20mm, 2.0*25mm, 2.5*30mm etc.
Frame: Iron Frame, Steel Frame, or Nothing.
Uses: It can be used in the water-treating equipment, mineral processing, coal-cleaning plant and so on.
If you want to consult the price, please contact us and provide your detailed requirements, we will give you a satisfactory reply.
