Wedge Wire Stainless Steel Screen Nozzle / Water&Gas Strainer Nozzle

Supply Ability: 300 Piece(s) per Day
Shipping: by air, by train, by sea, by express mail
Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: carton, wooden box

Quick Details

  • Brand Name: FY-XL
  • name: stainless steeel filter nozzle
  • Material: ss316L
  • application: filter equipment, tank
  • Type: filter nozzle
  • Model Number: FY-XL-DN45-108mm
  • Diameter: 45-108mm
  • slot: 0.2-0.25mm
  • end connection: FPT, MPT,G
  • material: ss304 316 316L, 304L
  • v profile wire: 1.5x2mm
  • support wire: 1.8x2.5mm
  • high light tag: johnson screen nozzle, water filter nozzle, filter bottom nozzle, stainless steel strainer nozzle


Screen Nozzle

Johnson screen nozzle, water filter nozzle, filter bottom nozzle, stainless steel strainer nozzle, double flow screen nozzle, quick install filter nozzle, long head strainer nozzle
Screen nozzle are typically used in media retention vessels where specific flow and backwash rates are desired. Our applications engineers can recommend the number of nozzles needed for effective collection and distribution.

Down-flow reactors can place extremely high loading on the media retention screens at the bottom of the vessel. In some cases, this can require a false bottom to carry the load. Obviously, some provision must be made for the process flow to pass through this plate. this can most easily and effectively be done by installing a number of screen nozzles uniformly across the plate.

They are economical, easily installed, and have several distinct design advantages:

 Type 316L stainless steel construction.

 Continuous slot design provides increased open area for better collection.

 Standard nozzles are 2in./51mm diameter and can be attached to the plate either with threaded end fittings or with "L"  Bolts.

 Standard slot opening is typically range between 0.006"(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

 Wedge wire screen is highly resistant to plugging.

 Choice of either 3/4"  NPT or 1"  NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

 Less expensive than other screen of equal efficiency.

Small systems may be built modularly from off-the-shelf components requiring minimal customization.

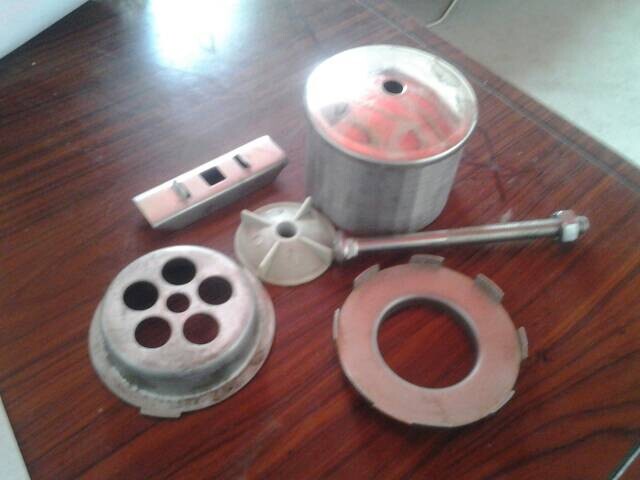

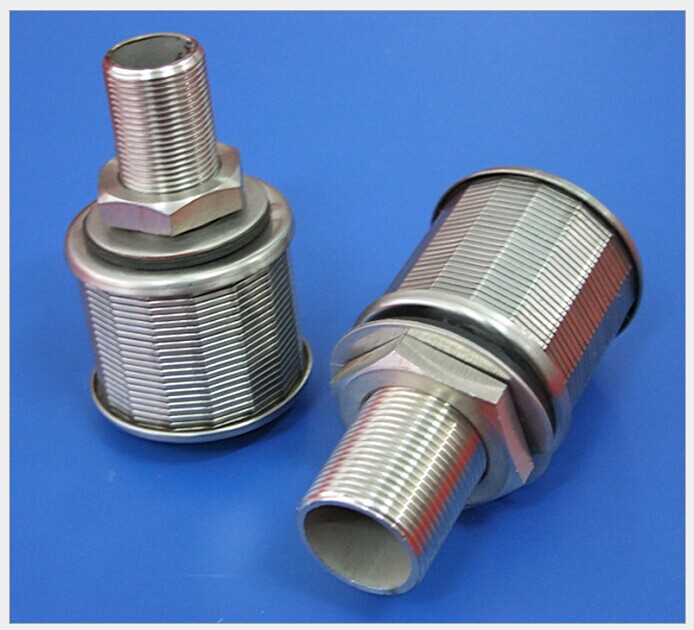

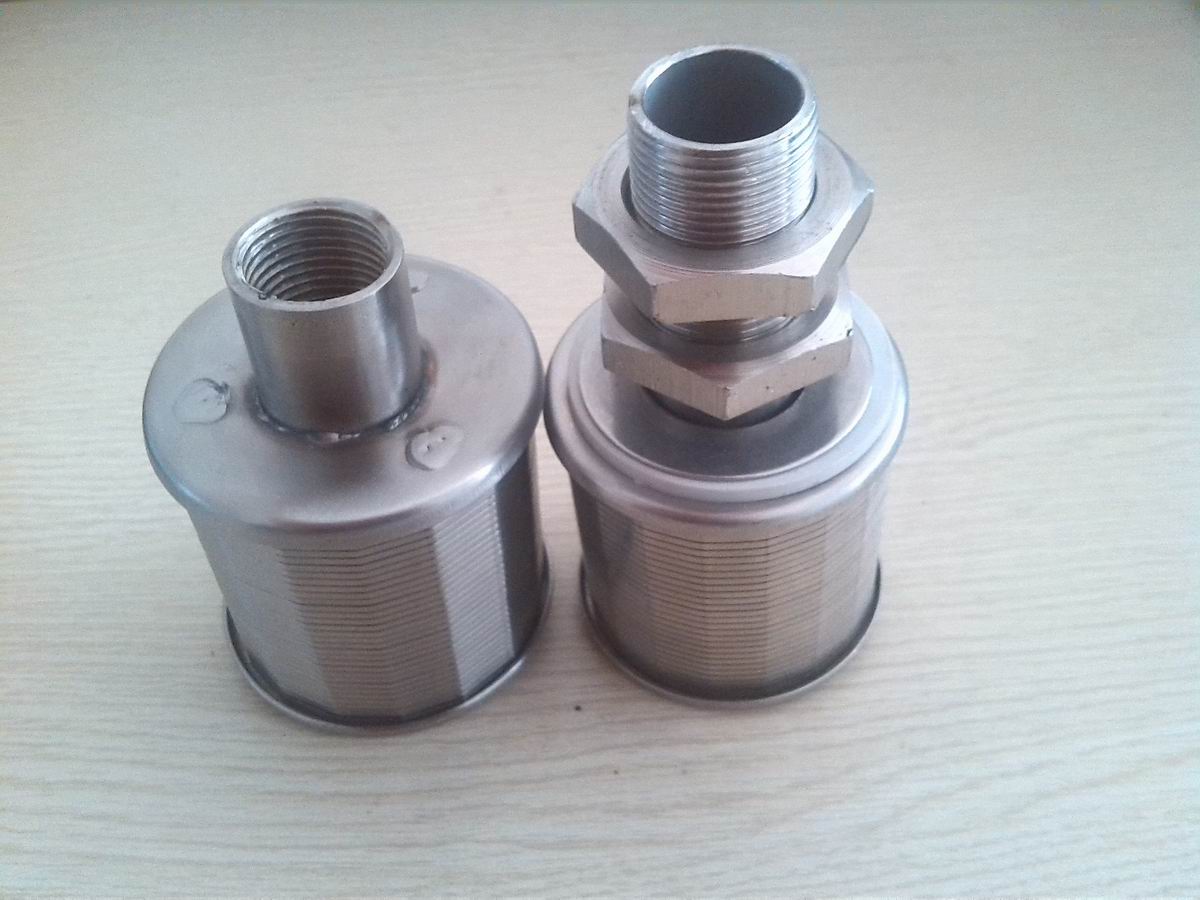

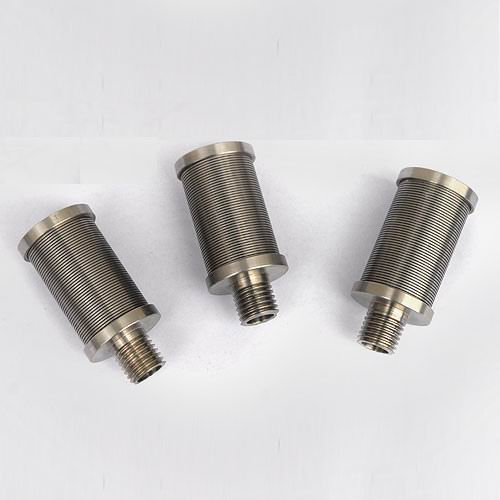

Screen Nozzle watergas strainer nozzle

If you want to consult the price, please contact us and provide your detailed requirements, we will give you a satisfactory reply.
