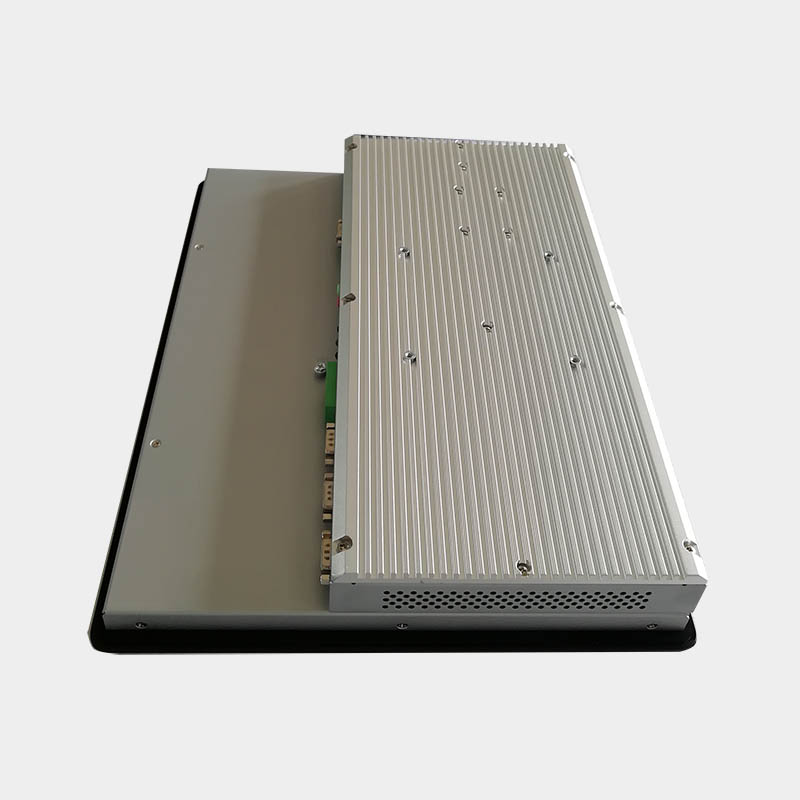

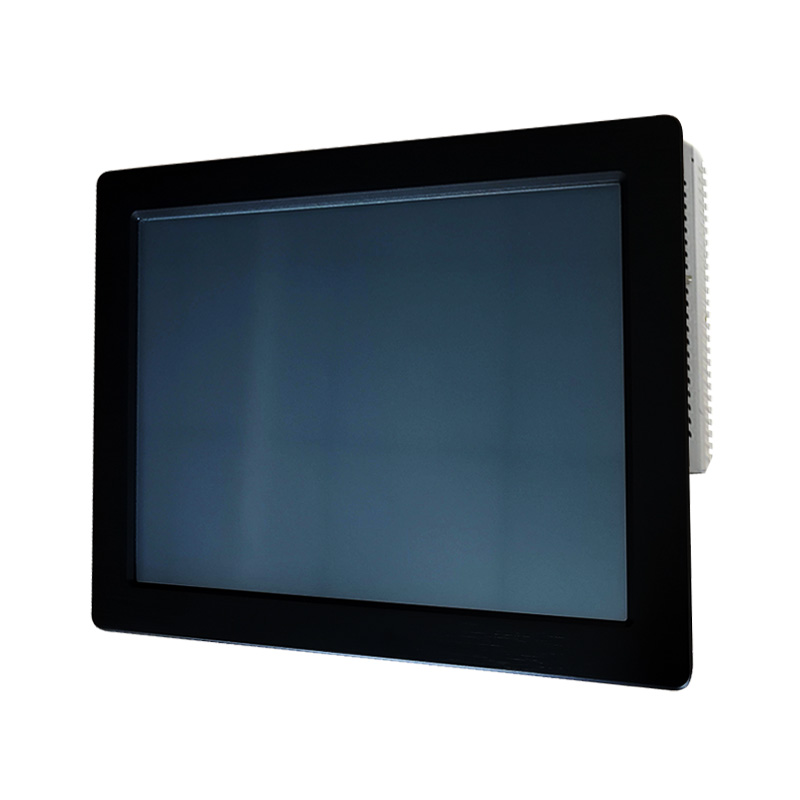

15" LCD Touch Screen Industrial Fanless Panel Computer PC
| FOB Price: | 1.00 - 999.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Month |
| Shipping: | 5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Dimensions(WxHxD)406 x 312 x 55 mm NET weight5.8 KG |
Quick Details
- Brand Name: Anxin Intelligent
- Type: Panel PC
- Products Status: Stock
- aluminuine frame: 6mm panel ip65
- Memory Capacity: 2G~8g
- Model Number: IPC-15PF
- Display Type: LCD
- Graphics Card Type: Integrated Card
- Hard Drive Capacity: 500GB
- Memory Capacity: 2GB
- Processor Brand: Intel
- Screen Size: 15"
- Type: All-In-One
- Products Status: Stock
Specifications
IPC-15PF is a 15 inch LCD Industrial Touchscreen fanless Panel PC computer with 3/4/6COM: max 5xRS232 and 1xRS485 2LAN 1HDMI 4xUSB
- Low power consumption and fanless design
- 15" TFT XGA LED Panel (1024 x 768) with resistive touch screen
- Embedded Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz)
- 1x SODIMM DDR3 1600/1333 SDRAM, Preload 2G RAM (Max 8G)

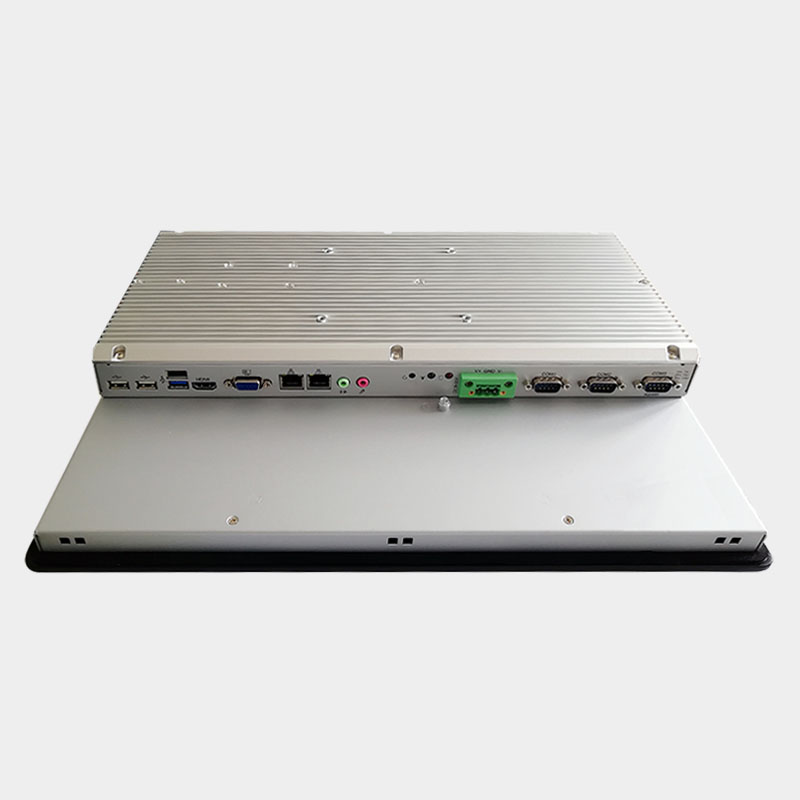

- 6x COM (1xRS422/485), 1x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO and MIC
- Offers 1 x Mini PCIe slot, for expansion
- Rear panel with power LED and HDD LED Indication
- Wireless LAN with antenna (optional)
- DC12V input (option Wide range DC 9-36V input)
- 6mm Robust aluminum with IP65 compliant front bezel design
- Panel ( Flush ) mount with clip or Standard VESA 100x100mm support stand, wall mount and swing arm
Main System
CPUOnboard Intel Intel Celeron Processor J1900 processor
ChipsetIntel Bay trail SOC
System MemoryPreload 2GB RAM(Max 8G)
HDD (hard disk )2.5" SATA HDD/SSD; Preload 500GB HDD
LAN2x Realtek RL8111x (Gigabit) 10/100/1000Ethernet
GraphicIntel HD chipset
AudioRealtek ALC662, 5.1 channel surround Audio
I/O Connector5 x RS-232
1 x RS422/485
1 x HDMI
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
3 x USB2.0, 1 x USB3.0
1x 3Pin DC power input terminal block
Expansion1x Mini PCIe slot
General
ConstructionAluminum front bezel and Aluminum chassis
OS SupportWindows 10/8/7, Windows XP, Linux
MountingPanel mount or Standard VESA 100mm
Power supplyDC Input Voltage: 12v, with External AC adapter; Output Rating 28W
Optional Wide range DC 9-36V input
LCD display
Display type15" XGA TFT LCD LED Backlight
Resolution1024 x 768 pixels
Contrast Ratio700:1
Luminance450 CD/m2
Viewing angle160(H), 140(V)
Response Time12 ms
LCD MBTF50, 000hrs
Touchscreen
TypeResistive touch screen
Controller InterfaceInternal USB interface controller
ResolutionContinuous
Light Transmission81% or more
Operating Force100g
Life Expectancy35 Million
Environmental
Operate Temperature0 ~ 50C (32 ~ 125F)
Storage Temperature-20 ~ 60C (-4 ~ 140F)
Humidity10% to 90%@ 40C, on-condensing
Vibration17 to 500HZ 1G PTP
Operating Shock1G /peak ( 11m sec)
Ingress ProtectionFront panel IP65/NEMA4
Packing info
Dimensions(WxHxD)406 x 312 x 68mm
NET weight7.5 KG
Ordering informations
IPC-15PF15" XGA Fanless Industrial Panel PC support Intel Celeron J1900 Processor, with 2G RAM, 2.5 500G HDD, with Resistive Touch Screen, DC12V input External AC adapter
IPC-15PFLIPC-15PF + Mini-PCIE wireless LAN card with antenna
