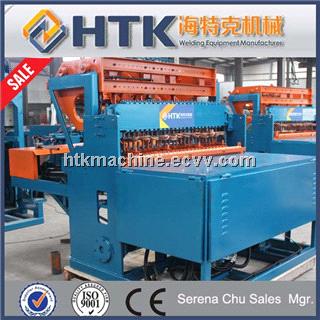

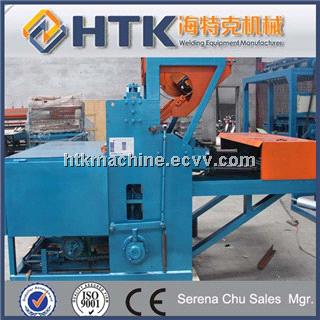

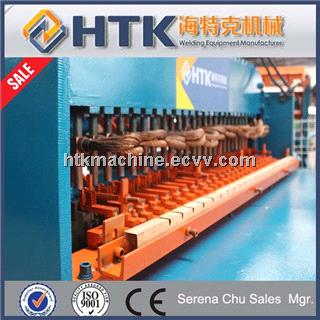

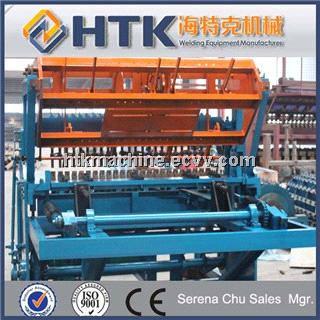

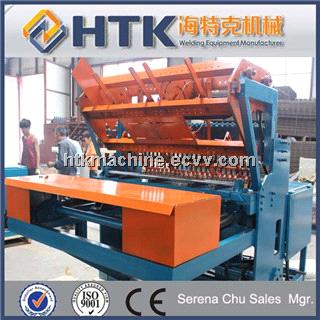

High speed wire mesh fence panel welding machine
| FOB Price: | 13,500.00 - 18,500.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 20-30days |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | In plastic film and wooden pallet, or as your requirement. |
Quick Details
- Condition: New
- Brand Name: HTK
- Model Number: HTK-DNW-4-20
- Usage: Product fence for protect highway and railway,building fence,etc
- Voltage: 380V
- Current: instant
- Rated Duty Cycle: adjusted by transformer
- Rated Capacity: 7.5kw
- Dimensions: 3.1 X 8 X 1.8m
- Weight: 3.5T
- Certification: ISO9001:2000
- After-sales Service Provided: Engineers available to service machinery overseas
- Wire diameter: 3.0-6.0mm
- Weft wire spacing: 25-200mm
- Warp wire spacing: 50-300mm
- Welding width: 1-2.5m
- Welding speed: 55 times/min
- Welding point: 51
- Warp form: precut wire
- Weft form: precut wire
- Rated voltage: 380V
- Rated power: 180KVA x 6
- Overall dimension: 3.1 x 8.0 x 1.8m
- Length: 6
- Characteristic: net piece smoothly, diagonal line error small
- Accessories: wire straightening and cutting machine
- Cooling device: Water colling
Specifications
Wire mesh panel welding machine
1.The features of wire mesh panel welding machine
The equipment is the mechanical electronic computer integration advanced welds the net equipment, this machine biggest characteristics is the organzine may adjust may appear between the latitude and the latitude on the identical standing net the different size hole, the welding transform voltage uses the new highly effective transform voltage mesh, the wire diameter scope which the expansion may weld, Also this machine welds the net piece smoothly,diagonal line error small, is easy to operate. The flexibility is the ideal equipment which the net fence welds.
2. The specification of wire mesh panel welding machine
| Wire diameter | 2.8-5.0mm | Wire diameter | 3.0-6.0mm | Wire diameter | 5.0-8.0mm |
| Weft spacing | 25-200mm | Weft spacing | 25-200mm | Weft spacing | 50-300mm |
| Warp spacing | 50-300mm | Warp spacing | 50-300mm | Warp spacing | 50-300mm |
| Welding width | 2500mm | Welding width | 2500mm | Welding width | 2000mm |
| Welding speed | 50times/min | Welding speed | 55times/min | Welding speed | 50 times/min |
| Wire form | precut wire | Wire form | precut wire | Wire form | precut wire |
| Rated voltage | 380V | Rated voltage | 380V | Rated voltage | 380V |
| Rated power | 160KVA X 4 | Rated power | 180KVA x 6 | Rated power | 200KVA x 5 |
The rated voltage can be made as your requirement.
Special type can be made according to client's requirement.
3.The details of wire mesh panel welding machine
A.Install: The machine need not install the anchor bolt, only need to put on the ground of plant.
B.Adjust: The weft wire space and warp space will be adjusted as your requirement.
All of the debugging working will be done in the factory manufacture by our engineers.We will send the photos and video of the mesh machine to you.
C. Control systerm: PLC Control Systerm.
D. Cooling device: water coling
E. Technical support: We have 5 senior engineers, they can repaire the machine to your factory.
4.The machine's transformer
120KVA, 160KVA, 180KVA, 200KVA, depened the machine usage.
5.The packing of wire mesh panel welding machine
In plastic film and wooden pallet, or as your requirement.
6.After-sale Service
a. Reply you enquiry in 24hours working hours
b. Experienced staffs answer all your questions about the machine
c. Exclusive and unique solution can be provide tp our customer by your well-trained and professional enginner
d. Special discount and protection of sale area provided to your distributor
e.Engineer can install, test and adjust the machien for you when the machine arrived your factory 7days
f.Enginner can repair machine to your factory
g. Guarantee: one year, some accessories free for you.
7.Why choose Us?
Competitive price: We are direct factory of weled wire emsh machine.
Quality guarranty: We have Specifical quality control personnal to detect every accessories and every process.
Cost Saving: Only need 2 persons to operate the machine.
Production capacity: we can produce 10 sets machine one month.
Good reputation: we have many customers in the world, and have a high reputation.
