Home  >Products Catalog > Mold CNC machine > plastic,foam,wood ESP cnc mold cutting machine RF-1325-F

plastic,foam,wood ESP cnc mold cutting machine RF-1325-F SafeBuy Supplier Member

FOB Price: 1.00 - 30,000.00 USD/Set
Supply Ability: 100 Set/Sets per Month
Shipping: within 30 days after receive the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: plywood package

Quick Details

  • Condition: New
  • Engraving Area: 1300*2500mm
  • Engraving Speed: 20m/min
  • CNC or Not: Yes
  • Cooling Mode: Air Cooling
  • Brand Name: rayfine
  • Model Number: RF-1325-F
  • Certification: CE,ISO
  • After-sales Service Provided: Overseas third-party support available
  • spindle motor: air cooling 4.5KW with imported bearings
  • working table: aluminum table or vacuum table system
  • guide rails: Taiwan imported HGH30 linear guide rails
  • control system: NC studio control system or sytech
  • Z axis travel size: >1000mm
  • drive motor: big 110 stepper motor
  • driver: YAKO2811MA

Specifications

Pefromance:



Features:

1. Imported widen square-shaped orbit, two-line sliding track, heavy bearing, high precision and high power.
2. Z working area can up to 1000mm, extensive processing area, suitable for the large thick materials processing.
3.Intelligent anti-transgress-process protection system. This function can prevent machine from crashing when the design zone is beyond the process zone.
4.Intelligent processing, traveling and cutting speed control. It can increase the efficiency, so improves the quality of finished products.

Application

 The foam mold cnc machine is mainly used for the following two industrial fields.

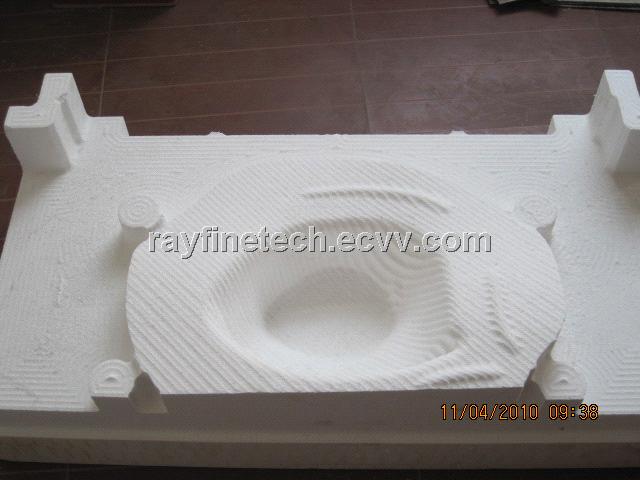

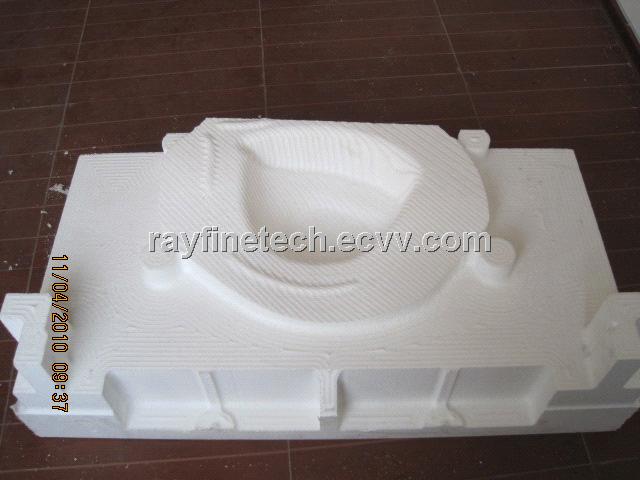

Firstly, molds industrial: It engraves all kinds of large nonmetallic molds, especially automotive foam molds, wooden ships molds, aviation and train wood molds.

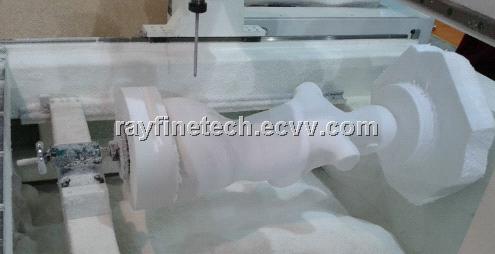

Secondly, musical instrument industry: Engrave 3-D large instruments and shaping

Technical Specifications:



ModelRF-1325-F
XY working area1300x2500mm
Z working area>1000mm
Table size1500x3000mm
Max travel speed8m-30m/min
ProcessorDSP/Frequency 100MHz
InterfacePCI card or USB handle
Command G code*.u00*.mmg*.plt
Surroundings for softwareWindows98/2000/xp
Power(not include the spindle)1500-2000W
Working voltageAC220V/50Hz
spindle power rate2.2-6.6KW
spindle rotating speed1800-24000rpm/min
Drive motorSteper or servo
