Wedge Wire Wrapped Johnson Screen Pipe Filter Tube
| Supply Ability: | 100 Piece(s) per Day |
|---|---|
| Shipping: | by sea, by air, by train, by truck |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden box, pallet, container |
Quick Details
- Width: to order
- Material: ss304, ss316L, s321
- Type: Filter Elements
- Usage: Liquid Filter
- Brand Name: FY-XL
- Length: 10ft, 20ft
- Thickness: 5-10mm
- Filter Rating: 0.1-10mm
- Hole Shape: Round
- Model Number: FY-XL-06
- Product: wire wrapped johnson water well screens
- Flow type: from outside to inside
- min slot: 0.05mm
- max length: 20ft
- end joints: welded rings, threaded, flange
- surface treatment: galvanized or polished
- Weight: 25kg/sqm
- Certification: CO, FORM E
- high light tag: johnson water well screens, water well screen pipe, weldled wedge wire screen
Specifications

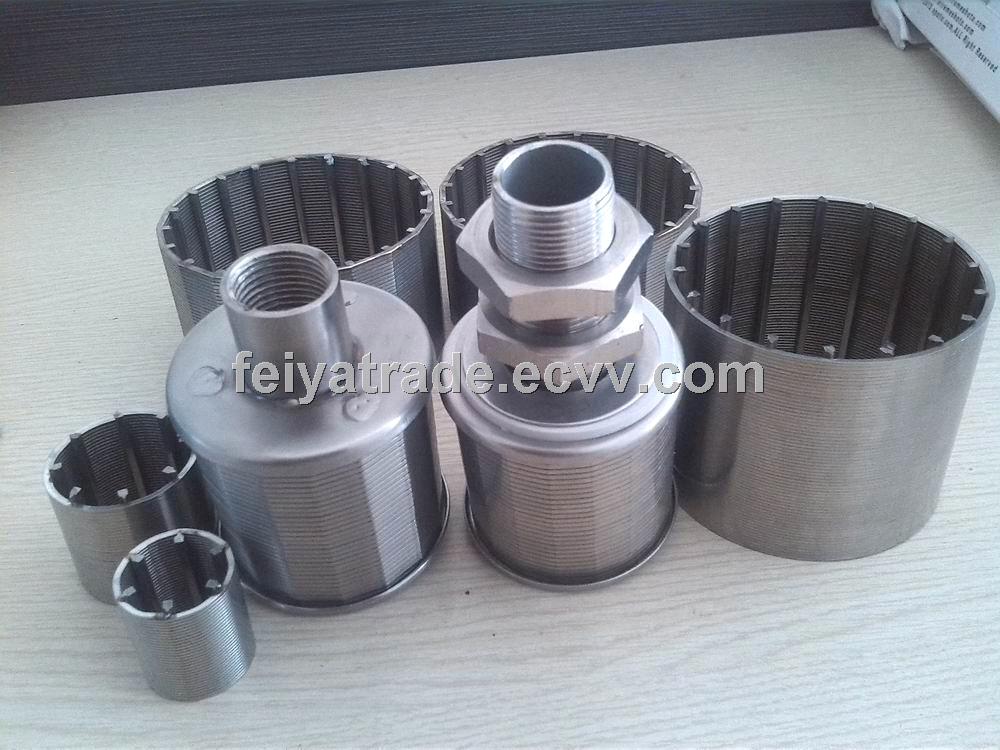

Wedge Wire Screen
A CYLINDRICAL WEDGE WIRE SCREEN for PRACTICALLY ANY APPLICATION
Diameter: from 19 mm to 4000 mm
in ONE SINGLE PIECE CONSTRUCTION
NO JOINTS or SECTIONAL CONSTRUCTION
Length: up to 6000 mm
We offer these welded vee wire screens in one single piece construction.
One of the important features of wedge wire screen for filtering and separation is the continuous aperture or "slot", which automatically provides a large open area and low tendency to blind or clog.
the continuous aperture and triangular wire section ensures there are only two particle contact points, which minimizes the risk of blinding and clogging.
There are numerous wedgewire profiles available to suit to various applications in mining, food processing, beverage industry, waste water treatment etc.
| SIZE (INCH) |
O.D (MM) |
SLOT (INCH) |
LENGTH (M) |
COLLAPSE STRENGTH (PSI) |
TENSILE WEIGHT (TON) |
WRAP(thick*deep) (MM) |
RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
