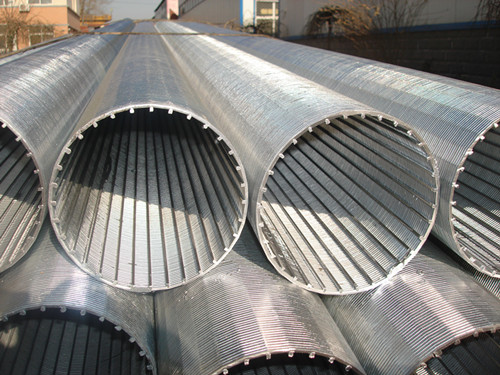

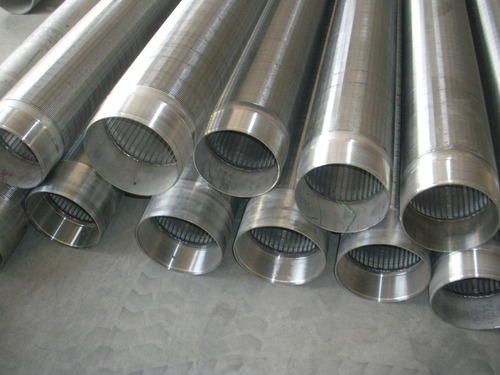

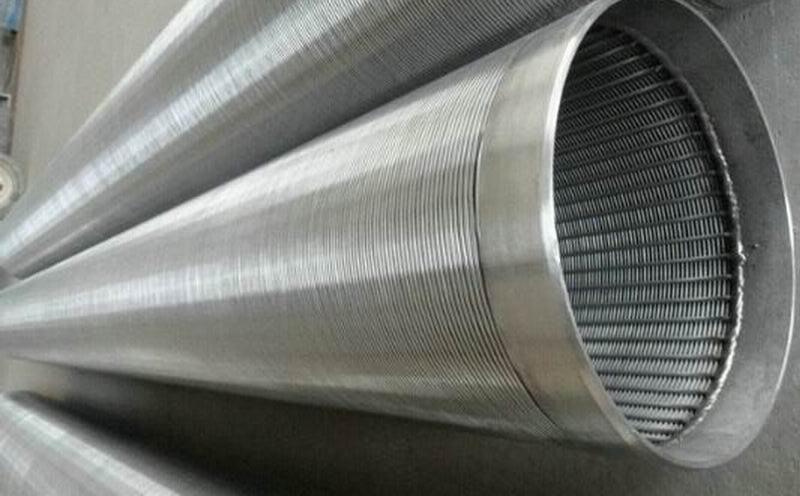

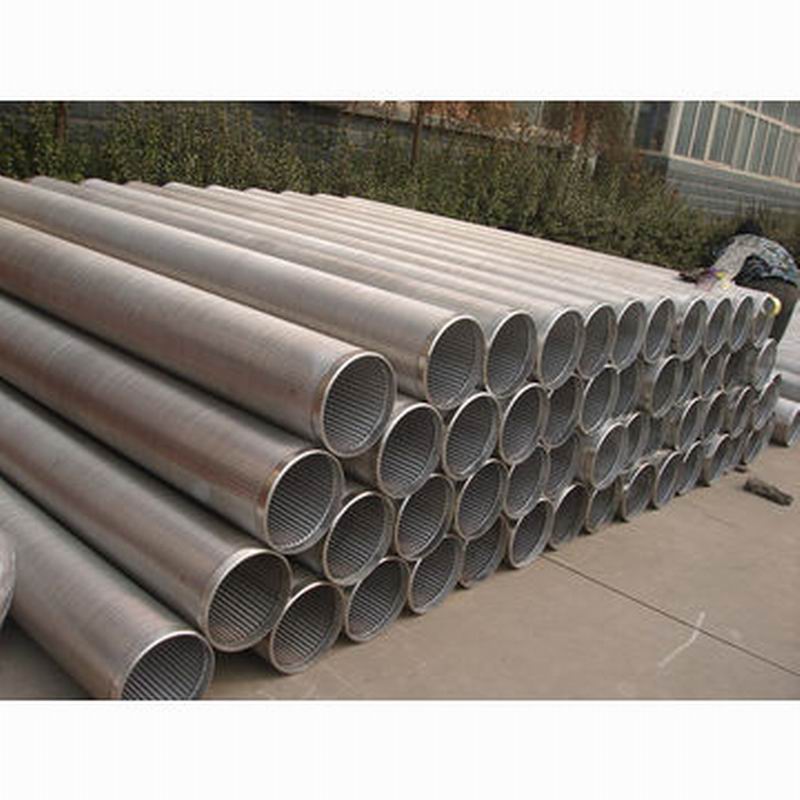

V Wire Wrapped Johnson Screen / Stainless SteelWater Well Screen Pipe

Supply Ability:	100 Piece(s) per Day
Shipping:	by sea, by air, by train, by truck, by express mail
Payment Terms:	T/T

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	pallet, container, wooden cage

Quick Details

Brand Name: FY/XL
Condition: filter tube
Medium Material: stianless steel
Certification: CCIC
Weight: to order
Model Number: 10-3/4inch
slot size: 1mm
max length: 6m
profile wire: 2.5x4mm
support wire: 3x4.6mm
support rod: 3.8mm
end connection: welded ring
material: no magnetic ss
weight: 65-70kg/pcs

Specifications

Johnson screen pipe is made up of rods and warp. the rod can be round wire, triangular wire or trapezoid wire.
the warp is triangular wire (V-shaped wire).
Johnson screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Johnson screen pipe can be used in many kinds of medium filtering.

Features:
Adoption of the wedged wires made a V profile slot. this design ensures the fluent of water filteration and more effective
Wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. so that the high production efficiency and long life service of the well are gaurenteed.
Arrangement of the longitudinal support rods and the successive slots provide higher compressive property
Diameter Available:
1.5'', 2", 3", 4", 6", 8", 10", 12", 14"

Slot (mm):
0.15, 0.25, 0.50, 0.75, 1.00, 1.50, 2.00, 3.00

Lengths:
3Mts. & 6Mts.

Material:
Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )

Usages:
the vee slot wedge wire screen are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter and other filtration equipment.

Johnson Screen Specification
Material:	AISI304/316/316L,etc.
Wedge Wire (mm):	2.23.0, 2.33.0, 2.33.5, 3.55.0

Support Rod (mm):	Width: 2.30 3.00 3.30 3.70
	Height: 2.70 3.60 4.70 5.60 6.30
	Round: 2.50mm -- 6.0mm
Slot Size	0.10 -- 6.00mm,also can be customized as your request.
Length	Max 6 meters.
Diameter (Inch)	4'' 6'' 8'' 10''
Note: Other specifications can be customized according to your requirement

wire wrapped Johnson Screen Water Well Screen
