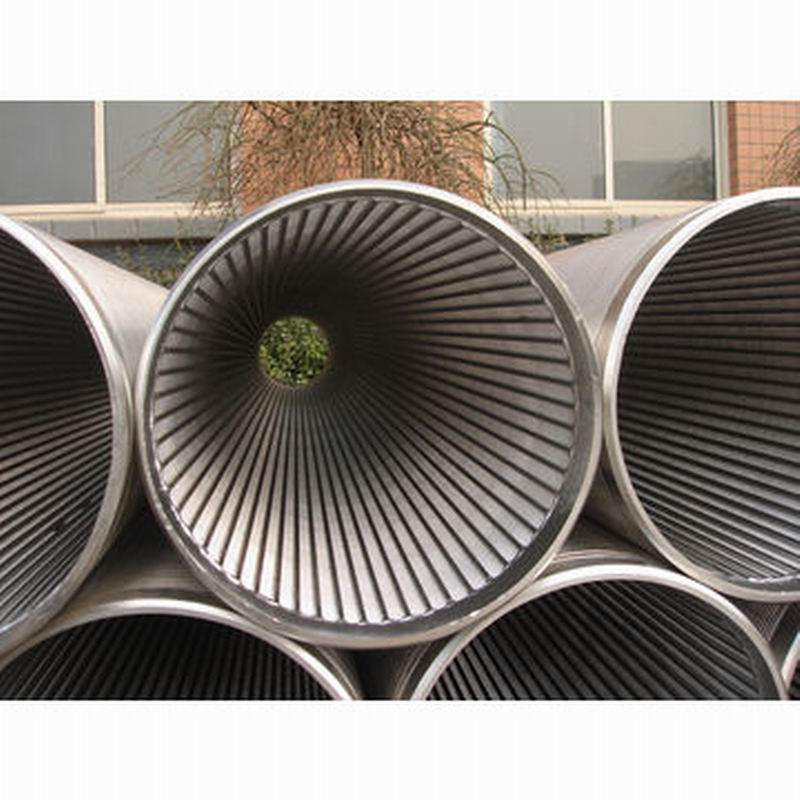

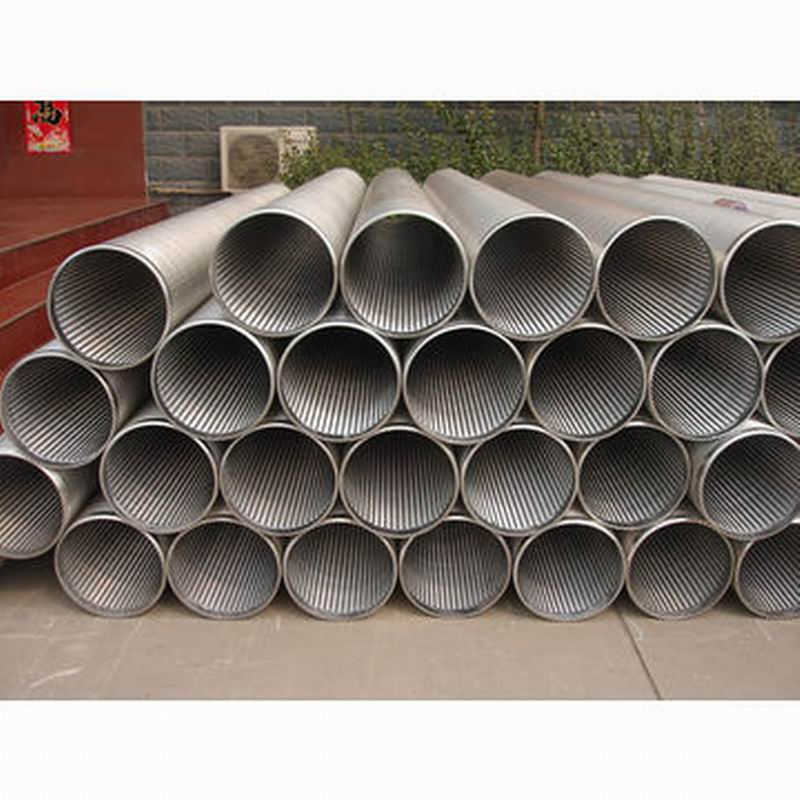

Low Carbon Galvanized or Stainless Steel Wire Wrapped Welded Johnson Water Well Screen Pipe
| Supply Ability: | 110 Piece(s) per Day |
|---|---|
| Shipping: | by air, by train, by truck, by expess mail |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | container, wooden cage,pallet |
Quick Details
- Width: 168mm
- Material: Galvanized or stainless steel
- Type: Filter Elements
- Usage: Liquid Filter
- Brand Name: xinlu well screen
- Length: 3m
- Thickness: 5-10mm
- Filter Rating: 0.1-10mm
- Hole Shape: Square
- Model Number: FY-XL-09
- another name: Johnson spiral wire screen pipe
- Flow type: from outside to inside
- Outdiameter: 168mm (6inch)
- well deep: 200-450m
- profile wire: 3x4.6mm
- surface treatment: galvanized or polished
- Weight: 25-30kg/sqm
- length: 1m, 2m, 3m,4m, 5m, 6m
Specifications
XINLU WIRE MESH PRODUCTS CO.,LTD WIRE WRAPPED SCREEN
Wire - Wrapped Screens
Unsurpassed in design, construction and performance, Xinlu Wire Mesh Products Co,.Ltd Screens All-Welded wire-wrapped screen provides field-proven sand control. the wire-wrapped screen features a keystone-shaped, wedge, vee shaped wrap wire on round rib wires for improved plugging resistance.
Advantages over conventional screens are significant.
Extra strength
the Xinlu Wire Mesh Products Co.,Ltd wire wrapped screen combines high strength and superior corrosion resistance for unsurpassed durability during installation or retrieval. the stainless steel wrap wirefirmly welded to every rib wireis designed not to shift or unwind in the unlikely event should it be damaged downhole.
Large inlet area
the Xinlu Wire Mesh Products Co.,Ltd screen has a much larger inlet area than conventional wire-wrapped screens. No solder strips, weld beads or lugs are present to block flow. Plus, a larger inlet area results in lower entrance velocity for produced fluids, reducing the potential for screen erosion.
Filtration assurance
with precise gauge control for reliability, gauge spacing of the screen is permanent. Weld strength and wire orientation are controlled to ensure the gauge required is the gauge delivered down hole.
Filter Construction
Round wires form the ribs, while the diameter and number are specified by the strength required and size of screen. Wedge Vee - Keystone-shaped wire is used for the wrap wires, which are helically wrapped around the preset vertical rib wires. Each point of contact is welded using a proprietary Xinlu Wire Mesh Products Co,.Ltd procedure. Wrapping is accurately controlledresulting in a uniform, precise gauge. the keystone shape of the wrap wire forms "V" shaped openings between wraps. this shape opening provides self-cleaning action and greatly reduces flow friction. Smaller particles can easily pass through the continuous slot while larger ones are held out without inhibiting the total inlet area.
| Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End | ||||
| in | mm | in | mm | in | mm | in | mm |
| 2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
| 3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
| 4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
| 5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
| 6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
| 8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
| 10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
| 12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
| 14 | 356 | 131/8 | 333 | 14 | 356 | _ | _ |
| 16 | 406 | 15 | 381 | 16 | 406 | _ | _ |
| 20 | 508 | 18 3/4 | 476 | 20 | 508 | _ | _ |
| PROFILE WIRE | ||||||||
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | ROUND | |||||
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | ?2.5--?5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
