Sunstart Tech CO., LTD
China Manufacturer with main products: CHARACTER LCD Module:16*2, 16*4, 20*4, GRAPHIC LCD Module 122*32, 128*64, 240*128, 320*240 Intelligent serial LCD module (RS-232 LCD MODULE) |

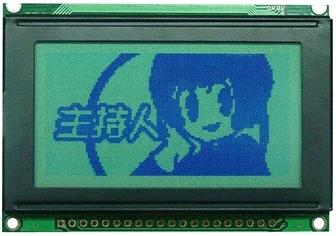

RS232 Graphic LCD module 12864 JQMRG12864B-FSW-GBW
| Payment Terms: | T/T |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Sunstart Tech
- Display Function: Graphics
Specifications
This compact versatile display allows you to draw your own pictures or characters. The thin single board graphic LCD module offers simultaneous text and graphic capabilities.
1,128 x 64 pixel graphics
display
2,.Communicate over RS-232
3.Transfer Speed with 9600bps(or
4800, 14.4KHz, 19.2KHz, 38.4KHz, 57.6KHz)
4.Built-in 5 types of fonts:
4X6, 6X8, 8X8 , 6X12, 8X16
5.504 bytes non-volatile memory space for 63 user
defined characters(font :8x8) or small picture .
6.Built-in a complete 2-D
graphic library(Pixel, Line, Box, Circle,
Arc,Ellipse) which should be sufficient for most applications
7.Easy Display Commands for printing number on display
8.Software
controlled Backlight
9.Software controlled Contrast
