Henan Gongwei Machinery Equipment Co., Ltd.
China Manufacturer with main products: Vibration Screen, Vibrating Feeder, Vibratory Motor, Bucket Elevator |

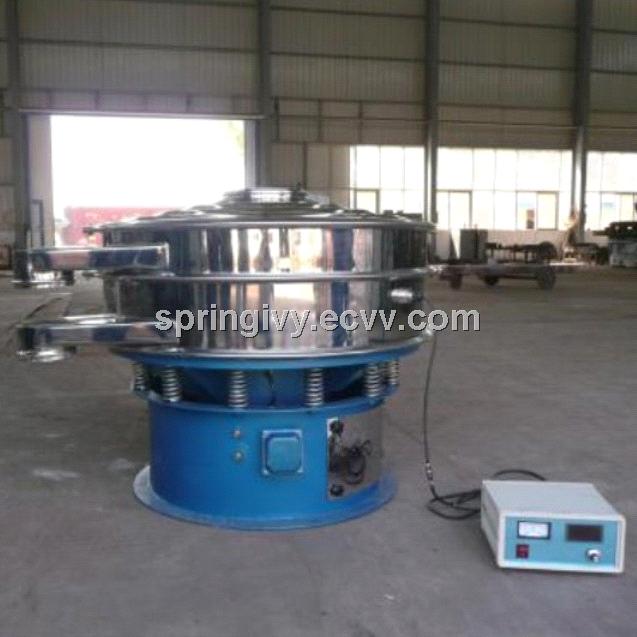

Ultrasonic vibrating screen for superfine particles
| FOB Price: | 1,500.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 15 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hunan in China |
| Packaging Details: | as your required |
Quick Details
- Condition: New
- Type: Circular
- Application: Food Processing
- Brand Name: Gongwei
- Model Number: WXZ
- Voltage: customized
- Certification: ISO9001:2008
- Warranty: 1 YEAR
- After-sales Service Provided: Engineers available to service machinery overseas
Specifications
Work principle
Ultrasonic Vibrating Screens are made up of ultrasonic controller, converter and resonance loop. Electric oscillation generated by the ultrasonic controller is converted by the converter into high frequency sinusoidal longitudinal oscillatory wave, which transfers to the resonance loop and create resonance and then goes uniformly onto the screen surface. Ultrasonic vibration is added to the low frequency rotating vibration of materials on the screen mesh, preventing mesh clog and enhancing the screen's productivity and quality.
Application
Ultrasonic vibrating screen is suitable for screening fine powder. It is widely used in silicon, alloy powder, tungsten powder, aluminum powder, rubbing powder etc.
Features
1. Ultrasonic self-cleaning function can prevent the sieve cloth of 50~625 mesh being plugged, and prolong the life span of sieve mesh.
2. Can exactly separate micro particles of similar size.
so on.
Technical parameters
Type | WXZC-600 | WXZC-800 | WXZC-1000 | WXZC-1200 | |
Efficient diameter screen(mm) | Φ540 | Φ730 | Φ900 | Φ1000 | |
Efficient area screen(mm) | 0.2289 | 0.4183 | 0.6359 | 0.9499 | |
Screen size | 100-635 mesh | ||||
Layer | 1-2 layers | ||||
Power(Kw) | Vibration motor | 0.25 | 0.55 | 0.75 | 1.1 |
Common motor | 0.75 | 1.1 | 1.5 | 1.5 | |
To get a suitable machine, please advise us the below information.
1. Raw material that you want to process,with the density,water content(%).
2. Capacity (tons or kg per hour)
3. Local power supply (voltage and frequency)
