Programmable digital measuring meter HN-80SX

Payment Terms:	T/T

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

SPECIFICATIONS :

l Quick response and High precision

l High quality but low cost

l One-row, three and half digit LED nixie tube(0.56 inch) display

l OEM or Customize

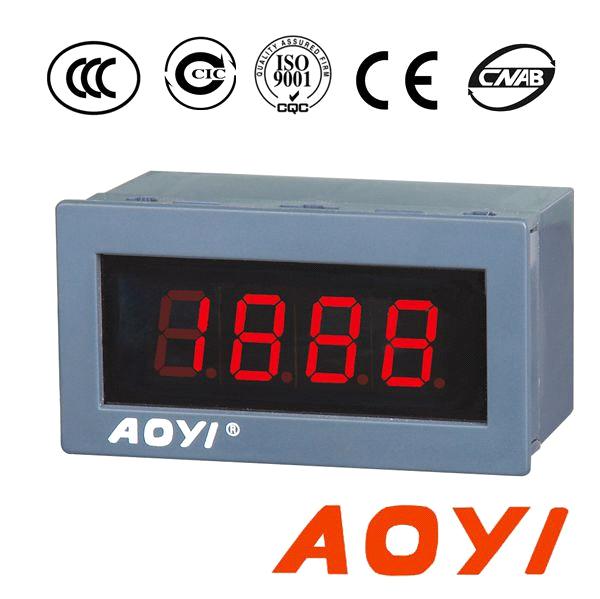

Programmable digital measuring meter HN-80SX

Product Type:

Meter Type	Measuring Range
DCV Meter	≤DC600V direction input, >600V please choose the appropriate resistor divider
DCA Meter	The≤ DC5VA direct input,>5A selection of shunt
ACV Meter	≤AC600V direct input, >600V please choose the appropriate negative voltage sensor
ACA Meter	≤AC5A direct input> Please choose the appropriate current transformer 5A
Hz, rpm, M/min, Mpa, etc.	The input signal can be as DC0 to 10V, DC0-20mA, corresponding to the maximum display value of 1999
Temperature display meter	Temperature display meter (-C class) thermocouple K type-1350℃, the thermal resistance pt100 type 0 to 650℃.

Programmable digital measuring meter HN-80SX

Technical Parameters:

Measure Precision: ±0.5% ±1Word

Working power supply: AC220V(85%～110%) 50/60Hz ( Voltage can be customized)

Power Loss: <3.5W

Environment temperature: 0℃～+40℃

Relative Humidity: <85%
