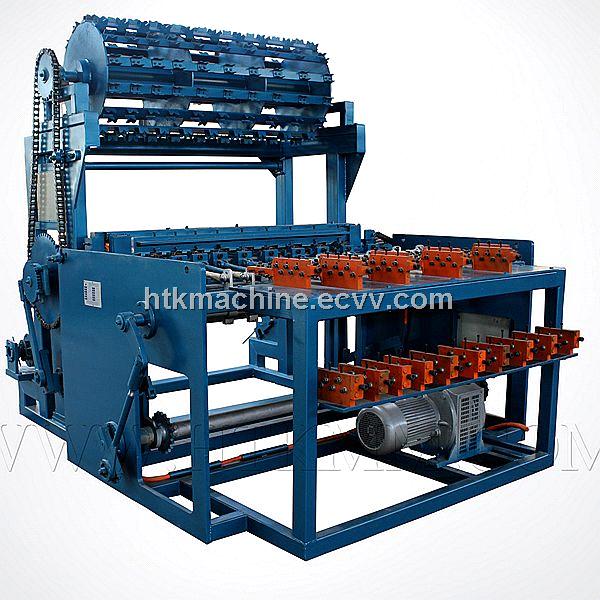

grassland field fence weaving machine for sale

FOB Price:	15,000.00 - 25,000.00 USD/Set
Supply Ability:	8 Set/Sets per Month
Shipping:	15 days after receive the advanced payment
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	1.in wooden pallet 2.in plastics 3.in nude or according to your requirement

Quick Details

Brand Name: CY
Model Number: CY1800
Name: grassland fence weaving machine
Feature: automatic, high speed,low noises
speed: less than 45 knock/min
wire diameter: 1.9mm--2.5mm
top/bottom diameter: 2.0mm--3.5mm
voltage: 380V-3P-50HZ
Port of lording: Tianjin port
terms of payment: FOB
type: many kinds,according to your requirement
certification: ISO 9001

Specifications

grassland fence weaving machine
Our certification:ISO 9001:2000, BV certification

1.Feature
The automatic farm fence machine is developed by our company. It can weave the weft and warp wire automatically together to form the rance fences. The end products enjoy innovative structure, frim and precise weaving.
It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices.Products are neat and beautiful, diverse specifications.

2.Specification of grassland fence weaving machine
Material

High quality low carbon steel wire, high carbon steel wire, galvanized iron wire

Surface Treatment

Hot dipped galvanized, Electro galvanized.

Application

Widely used for prevention for road, highway, railway, garden, airport, residential district,

seaport, feeding and husbandry,military base.

Production specification	CY-A	CY-B	CY-C
Power	5.5KW	7.5KW	7.5KW
Speed	≤45knock/min	≤45knock/min	≤45knock/min
Wire diameter	∮1.9mm-∮2.5mm	1.9mm-2.5mm	1.9mm-2.5mm
Top/bottom diameter	∮2.0mm-∮3.5mm	2.0mm-3.5mm	2.0mm-3.5mm
Voltage	380V-3P-50HZ	380V-3P-50HZ	380V-3P-50HZ
Weight	3.5T	3.8T	4.0T
Overall dimension	2.8 x 3.2 x 2.4(M)	3.3 x 3.2 x 2.4(M)	3.4 x 3.2x 2.4(M)

3.Working Sequence
The principal axis' turning for a circle signifies one working sequence. During one working sequence, the movements of all devices are listed as follows: feeding cutting receding (retracting) pressing twisting molding.
4.Installation and Debugging
During the installation, if the ground is even and horizontal, foundation bolt is not a must.
Before leaving factory, the machine has already been precisely regulated in accordance with its working sequence. For the first operation, users are not suggested to make any unnecessary or even casual adjustment to the key parts that have already been regulated before leaving factory. Or else, working sequence disorder may be encountered, leading to accidents.
Users are requested to get to know the adjustment contents of key parts, as well as corresponding adjustment methods that are indispensable during operation.

5.product of grassland fence weaving machine
fence is mainly used for grassland construction, can fences up grasslands and implements the fixed-point grazing, columns grazing. Facilitate plans to use pasture resources, effectively improve the efficiency of grassland utilization and grazing, prevent grassland from degradation, protect the natural environment. And apply to establish the agriculture, animal husbandry profession of establishing family farms are set up
6.Package of grassland fence weaving machine
1.in wooden pallet
2.in plastics
3.in nude
or according to your requirement

7.Matters Needing Attention
1.Before installing the machine, please ensure that a ground wire is well-connected. During maintenance, be sure to cut off the power supply.
2.Before installing the machine, please ensure that a ground wire is well-connected. During maintenance, be sure to cut off the power supply.
3.When there is fusing inside the electrical cabinet. Firstly, the machine should be shut down, and also, power supply should be shut off. After electricians have figured out the reason of fusing, change the fusing with fuse of the same model. Or else, related devices might be burned up, resulting in fire hazards.
4.It is not allowed to modify devices inside the electrical cabinet, or to place tools, iron wires, and other sundries on the electrical cabinet, or on the machine.
5. It is requested to lubricate the bearings, slide blocks, slide rails, chain wheels, link chains, wheel gears, racks, as well as other parts under rolling friction at fixed periods. It is forbidden to operate the machine if these parts are lacking of lubricating oil. All parts should be lubricated only when the machine has been shut down. As for the parts need to be lubricated under running status, we many put into use the instillation method. It is forbidden to touch the running devices with the lubricator.
8.After-sales services
NO.1 Engineer can install,test and adjust the machine for you when the machine arrived your factory 7days.
NO.2 Guarantee: one year, some accessories free for you, and if the machine has something wrong, the accessories also can free to you
NO.3 Engineer can repair machine to your factory
NO.4 24 hours online after-sale service
