API 8A/8C oil Traveling Block and Hook for lifting
| Supply Ability: | 300 Piece/Pieces per Month |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | standard export packaging |
Quick Details
- Brand Name: lake
- Model Number: all models
Specifications

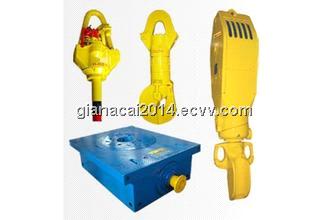

Travelling Block and Hook
Travelling Block and Hook are effective devices of drilling rig for lifting.
It is underground work in the most basic conditions and the main equipment
Equipped with a hydraulic snubber assembly to protect tool joints when making up/breaking out connections.
Equipped with the reliable safety devices on the hook.
The high stress parts of every hook are subjected to non-destructive testing.
The hooks conform to API Spec 8C.
Technical Parameter:
Model | YG135 | YG170 | YG225 | YC225 | DG225 |
Max.hook load kN | 1350 | 1700 | 2250 | 2250 | 2250 |
Sheaves OD | 760(30) | 915(36) | 1120(44) | 1120(44) | - |
Wireline Size | 29(1 1/8) | 29(1 ?1/8) | 32(1 1/4) | 32(1 1/4) | - |
Opening Dia. , Main Hook | 150 | 180 | 190 | - | 190 |
Spring Stroke mm | 170 | 140 | 180 | - | 180 |
Overall SizeL×H×W | 2946×836×652 | 3402×950×640 | 3450×970×660 | 2294×1190×630 | 2545×780×750 |
Weight | 3126 | 4594 | 4732 | 3713 | 2180 |
Model | YC315 | DG315 | YC450 | DG450 | YG450 |
Max.hook load kN | 3150 | 3150 | 4500 | 4500 | 4500 |
Sheaves OD | 1270(50) | - | 1524(60) | - | 1524(60) |
Sheaves NO. | 6 | - | 6 | - | 6 |
Wireline Size | 35(1 3/8) | - | 38(1 1/2) | - | 38(1 1/2) |
Opening Dia. , Main Hook | - | 220 | - | 220 | 220 |
Spring Stroke
| - | 200 | - | 200 | 180 |
Overall SizeL×H×W | 2680×1350×974 | 2953×890×830 | 3075×1600×800 | 2950×890×880 | 4887×1600×880 |
Weight | 6842 | 3410 | 8135 | 3496 | 12530 |
