Quality CR Nozzle Test Bench CRS-3000

Specifications

Jinvida Diesel Parts Co., Ltd are specialized in kinds of quality diesel fuel injection parts for 20 years, such as fuel injector nozzle, common rail nozzle, fuel injector, plunger , element, head rotor, delivery valve, repairing kits, feed pump, came plate, fuel spacer, control valve, washer of injector, nozzle tester, test bench, etc. also many replacements parts for BOSCH, ZEXEL, DENSO, DELPHI, SEVEN and so on

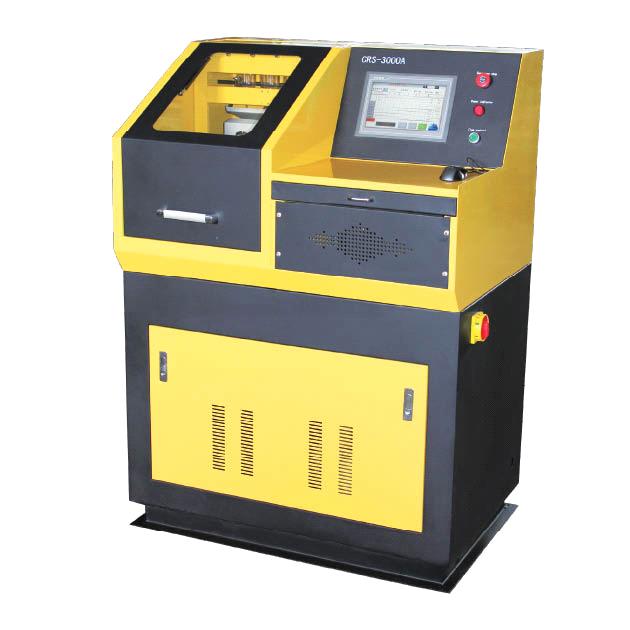

Quality Common Rail  Test Bench CRS-3000

Feature
1. Industrial tablet PC control, WINDOWS OS, high reliability
2. Touch screen, easy to operate
3. Adopted automatic turnover measuring cup testing system, high precision, high reliability
4. This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on
5. It can realize step testing and totally automatic testing
6. Can test the oil quantity under pre-infection full load, idle speed and correction working situation.
7. Test the returned oil quantity under different working conditions
8. Check the opening pressure
9. Display the rail pressure
10. Watch common rail injector's spray
11. Can finish injectors pressure testing
12. Can be used to running-in test
13. Preset more than 500 kinds of injectors parameter
14. Equipped with open database, you can upgrade or add data into it.

Parameter

Driving motor: 400V/50HZ or 220V/60HZ
Power: 4KW
Supply pressure: 0-1600bar
Cooling: Air cooling exchanger
Fuel tank volume: 20L
Temperature range: 1-100 °C
Heating resistor: 1KW
Test tube:30 and 120ml
Material: Steel
Size: 1000*700*1400mm
Weight:300kg
