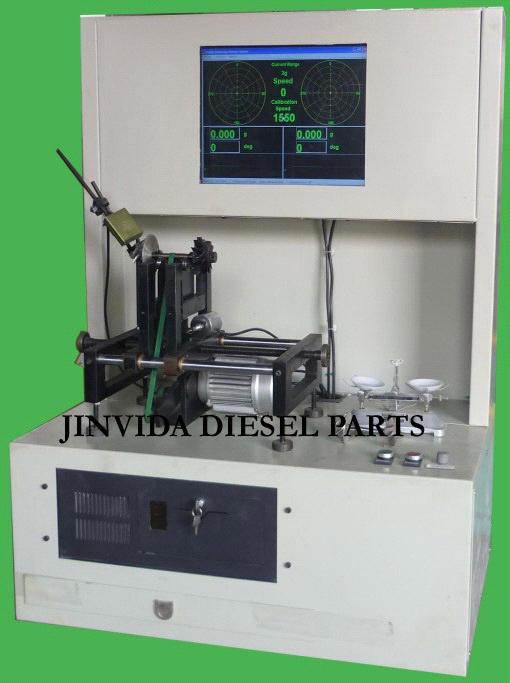

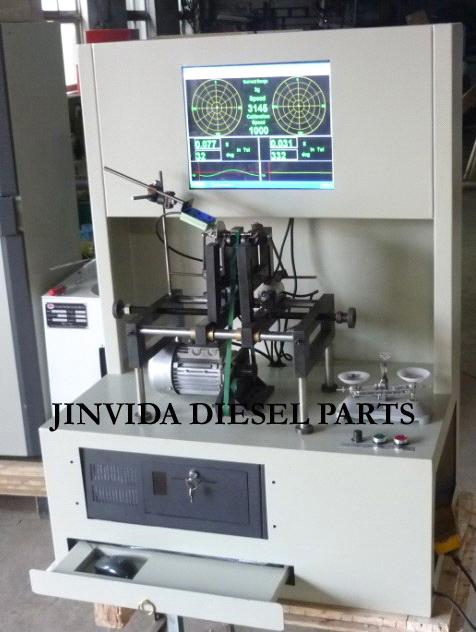

High Performance Turbocharger Balancing Machine RYQ-3

Specifications

High performance Turbocharger Balancing Machine  RYQ-3

Availability
Mass Scope of Workpiece kg: 0.1-3
Max Diameter of Workpiece mm:350
Two Span of Supports mm:30-450
Belt Position Diameter Range mm:150
Rotor Diameter Range mm:3-22
Balancing Speed min r/mm:400-10000
Drive Power kw:0.09

Feature
1.Horizontal soft bearing dynamic balancing machine
2.Motor and Inverter for speed regulation
3.Industrial computer to process data
4.Colored screen display unbalance value, phase angle, and practical rotation speed
5.Software has two calibration function like usual piece and standard rotor
6.Friendly interface to input,preview,test, save and type data
7.Machine tool can be lengthened on request
8.Overall cast base, better stability
9.Balance test on single side, double side, multi side
10.High accuracy, direct, dependable quality, convenient maintenance
11.Equipped with Variable speed motor to drive which ensures high quality balancing and precision
