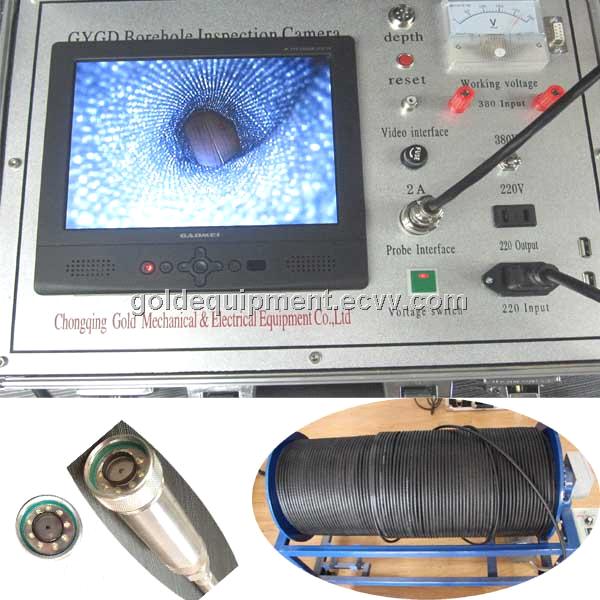

Underwater Well Camera

FOB Price:	1.00 - 2.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	7 work days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	wooden case

Quick Details

Brand Name: Gold
Model Number: GYGD
Inspection Camera: 0-2000M

Specifications

I--Application

The inspection camera is mainly used in engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.

It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.

II--Technical Specification

No.	Name	Dimension	Specification
1	Probe	Dia.: 80mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 6-12 LED Lights
2	Camera		(1) Inductor 1/3'' CCD, (2) Image definition is HD 850 TVL (3 Watertight (4) Camera Type: Panoramic
3	Professional Cable	0-2000m(optional)	(1) Tension is 150kg, (2) Destroy tension is 260kg
4	Control Machine		(1) 220V/380V optional (2) LCD display (3) Aircraft grade aluminum alloy material
5	Down-hole Pulley		Can change the pulley size according to the well opening size
6	Cable Winch		Hand/Electrical winch
