Foundationfe Industries Manufacturing
China Manufacturer with main products: Membrane Switch, Membrane Keypad, Membrane Keyboard, Membrane Circuit, Membrane Overlay, Graphic Overlay, Silicone Rubber Keypad, Silicone... |

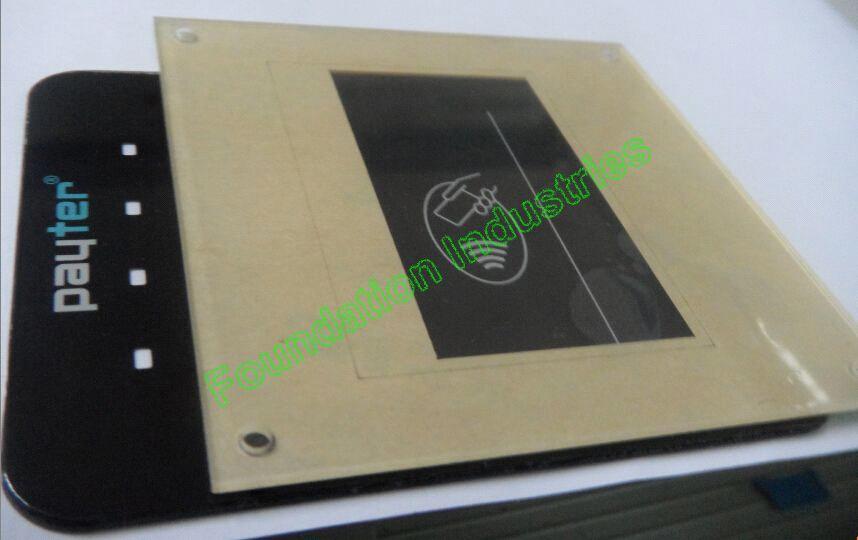

Hard board backed membrane product
| FOB Price: | 0.01 - 200.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | As required~ |
Quick Details
- Brand Name: Foundation
- Max. Current: 0.1A
- Max. Voltage: 36
Specifications
Product Description:
Acrylic plate membrane switch: Thickness is above 0.7mm, Pressing life-span is over one million times, have fine hermetic ability: Water and dust prevention, guard against a harmful gas. Can be designed according to the whole demandant, the color and picture can be changed, key shape can be selected, the character, the brand and the window can be collocated arbitrarily. Meanwhile, it have the characteristics of low cost and long life-span.
1. Electricity performance: Working voltage: ≤50VDC
Operating current: ≤100mA
Contact resistance: 0.510Ω
Return route resistance:
Generally≤150Ω, specially according
To customer request
Switch power: 0.25500Mw
Insulative resistance: ≥100Ω
Base material pressure: 150VDC
2. Physical performance: Service life: 1000000 times Touching
With joint forces: 15450g
Snapping back time: 10s
Closed displacement: 0.10.4ms(not touching)
0.41.0ms(with touching)
3. Environment adaptability: Operating temperature: -1070
Depositing temperature: -4070
Work humidity: 95%
Altitude: 04500 meters
4. Machine capability: External dimension: 400*800MM
Key size: According to customer request
Key spacing: >1.5MM
Line wide: ≥0.5MM
Resisting vibration: (Reference to MIL-STD-202)
