LED X-ray Viewer (MST-4000)

Specifications

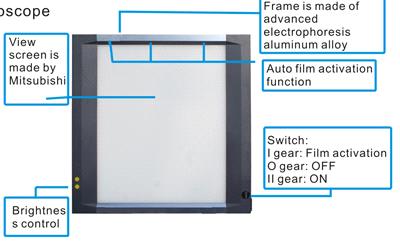

Inston LED X-ray Illuminator not only bring vision effect, but also have more practical utility. The light diffusing systems provide much more uniformity illumination and intensity. The compact design and enamel finish ensure the durability. Even more, our cost-effective control keep supporting the most competitive price in the world. Main Characteristics: 1. LED X-ray Illuminator is the brightest and suitable for viewing all kinds of X-ray films. The average illumination of MST-4000 is also reach up to 4000CD/m2 (about 13000lux). 2. Compared with other LED X-ray illuminators, MST-4000 is also the most energy-saving. (about 50% lower), and much lower than other ordinary X-ray illuminators. 3. LED life span reach 50000hour. 4. Elegant design with good quality material is very favorable. 5.2.4cm- the world slimmest illuminator helps saving room and Carrying easiest. 6. The complete functions enhance utility value and operation Facility. Film activation: When the film is plugging in, the illuminator auto turns on, and turns off when the film is taken out. Separate activation: If more than one bank, the illuminator will only lights on the bank which there is X-ray film plugging in. Model: Single union Double union Three union Four union Frame size mm 497x502x24 854x502x24 1211x502x24 1568x502x24 Viewing size mm 357x440 714x440 1071x440 1428x440 Power consumption 20W 40W 60W 80W Color temerature 9300k Input voltage 100-240V Luminance 2200-4000CD/cm2 Model Single union Double union Three unions Four unions Frame size mm 497x502x24 854x502x24 1211x502x24 1568x502x24 Viewing size mm 357x440 714x440 1071x440 1428x440 Power consumption 20W 40W 60W 80W Color teraterature 9300k 9300k 9300k 9300k Luminance 2200-4000CD/cm2
