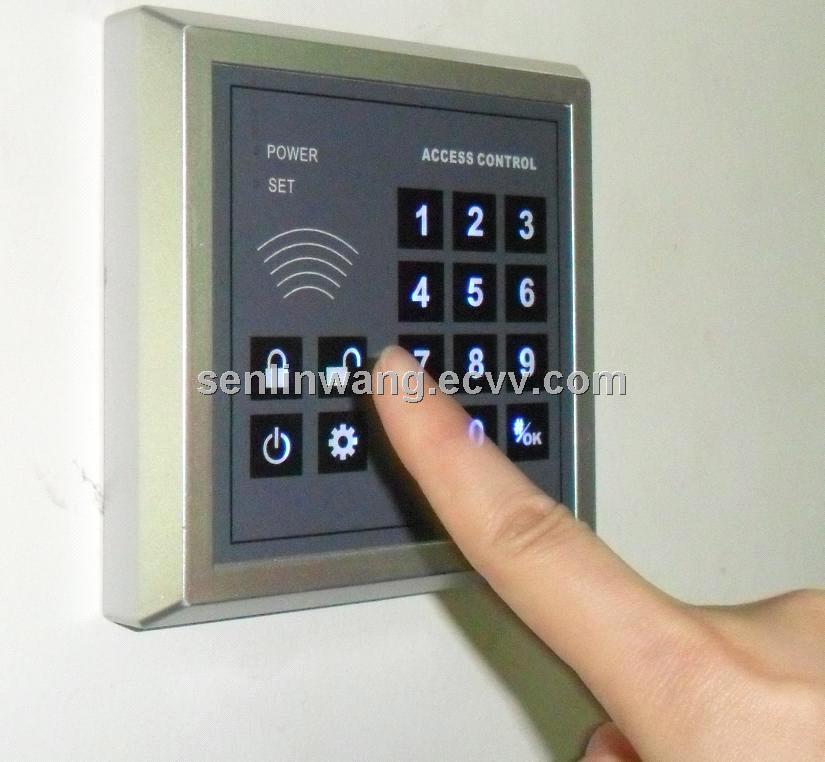

Wireless open door control keypad(PH-101)

FOB Price:	15.00 - 17.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Year
Shipping:	7~25DAYS
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Luggagelock

Price:1.00-2.00 USD/Piece

Min. Order:10,000 Pieces
GD-E361

Price:

Min. Order:10 Sets
GSM+GPS+WIFI+3G Cell Phone Signal Jammer

Price:150.00-180.00 USD/Piece

Min. Order:1 Piece
AM Security Tag Remover(AMD-3040)

Price:60.00-80.00 USD/Piece

Min. Order:1 Piece
2.45GHz Omni-directional reader HT916

Price:258.00-278.00 USD/Piece

Min. Order:19 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	CARTON

Quick Details

Brand Name: OEM OR YINGXIN
Model Number: PH-101
Power Requirements: DC12V,300mHA battery
Current Consumption: less than 15mA communication
Humidity: less than 90%
Operating distance from central controller: less than 200m (no obstacle)
Transmit Duration: less than 1s
Dimension(LWH): 117mm X117mm X 21mm

Specifications

Wireless control keypad

Model: PH-101

1- The wireless control keypad is specially designed for arm/disarm the alarm host with password authentication, which can be installed at the gates.

2- Wireless transmitting: 433MHZ/315MHZ for optional,

Transmitting distance: over 200 meters ( in the open area)

It's adopt 2262 fixed encode chip, so the transmission encode data of arm/disarm can be programmed to modify. It's suitable for all the alarm hosts with fixed code.

3-It adopts DIP switch encode mode, very easy to encode with the alarm host. EV1527 learning encode mode for option (the alarm host with learning code)

4- With 2 passwords.

Administration password: can modify the setting information, arm/disarm, program the alarm phone number, modifying the password of sub-password, etc

Sub-password.: Only for arm/disarm

5-With rechargeable standby battery, even power failure, it can keep working 6 months.

6-With LED backlight, it can operate even at night or in dark place.

7-With tamper switch, avoiding vandalism.

8-Automatically enter low-power consumption mode when no any operation.

9-Size: 117mm x 117mm x 21mm

10. Configuration: Wireless control keypad x 1

12V/1A power adapter x 1

Technical:

Power Requirements : DC12V,300mHA battery

Password protection:2 sets password with different functions

Current Consumption: less than 15mA communication

Transmit Freqency:315±0.2Mhz/433±0.2Mhz

Transmit Duration:less than 1s

Operating distance from central controller:less than 200m (no obstacle)

Humidity:less than 90%

Coding Type:Fixed Code

Dimension(LWH):117mm x 117mm x 21mm

Operational Temp:-10℃~+40℃
