rubber hose fitting/pipe fitting/male and female fitting

FOB Price:	1.00 - 5.00 USD/Piece
Supply Ability:	10,000 Piece/Pieces per Week
Shipping:	by sea or customized
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tianjin in China
Packaging Details:	by carton box

Quick Details

Brand Name: JJR
Model Number: 24211
Material: Metal
Metal Type: Steel
Standard: DIN
Diameter: all stadnard sizes
type: female and male
model number: 29691 and other type
size: different sizes available
customizable size: accept
samle: free in small quantity
port: xingang
package: carton box
small order: ok

Specifications

rubber hose fitting/pipe fitting/male and female fitting

Our hose fittings are finished with high quality which are made from 45 Carbon Steel or Stainless Steel. Hydraulic fittings can be coated as yellow-zinc plated, white-zinc plated, or other special demands.

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S1	H
29691-04-04	G1/4"	6	4	8	19	32.5
29691-06-06	G3/8"	10	6	8.5	22	39.4
29691-08-08	G1/2"	12	8	10.5	27	42
29691-12-12	G3/4"	22	12	12	32	57.6
29691-16-16	G1"	25	16	14.5	41	76.6
29691-20-20	G1.1/4"	32	20	16	50	83
29691-24-24	G1.1/2"	40	24	18	55	92.9
29691-32-32	G2"	50	32	24	70	115.5

Metric, BSP, and JIC are usual standards produced in our factory with material of carbon steel,stainless steel, brass alloy steel, etc.. And different sizes are also acceptable. Our fittings are for use with braided hoses to equip hose assembly.

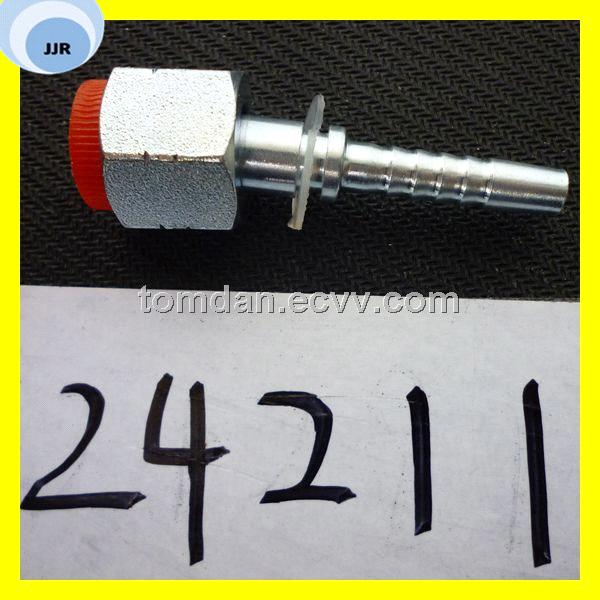

picture of the rubber hose fittings:

Package of the rubber hose fittings:

Any more information, please contact with Tom at any time is ok.
