Beijing Linkdata Technology Co., Ltd.
China Manufacturer with main products: Online Ups, Online Interactive Ups, Standby Ups, Offline Ups, Switching-Mode Power Supply, Rectifier, Lifepo4 Battery, Converter |
1000VA online UPS Tower Uninterruptible Power Supply
| FOB Price: | 1.00 - 1,000.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set/Sets per Week |
| Shipping: | Delivery time: 7-15 days, Port: Shenzhen or HongKong, Shipment Terms: FOB |
| Payment Terms: | L/C, D/P, T/T, Western Union, Other, PayPal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Inner packing material: EPE foam ; Seven layers of corrugated paper packaging on the outside ; woode |
Quick Details
- Brand Name: Linkdata
- Model Number: LD-Tower-1K
- Phase: Single Phase
- Protection: Lightning, Short Circuit, Overvoltage, Overcurrent, Unbalanced Loads
- Weight: 7.0kg
- Output Voltage: 200/208/220/230/240V
- Type: On-line
- Application: Telecommunications
- Type: Tower 1KVA Online UPS
- Input Power Factor: 0.99
- Current Crest Ratio: 3
- Output Waveform (Batt. Mode): Pure Sinewave
- Input Voltage Range: 110 to 300 VAC
- Input Frequency Range: 40 Hz ~ 70 Hz
- Battery Type: 48V lithium battery
- Dimension: 397*145*220mm
- Battery Capacity: Depending on the capacity of external batteries
- Capacity: 1000 VA / 800 W
Specifications

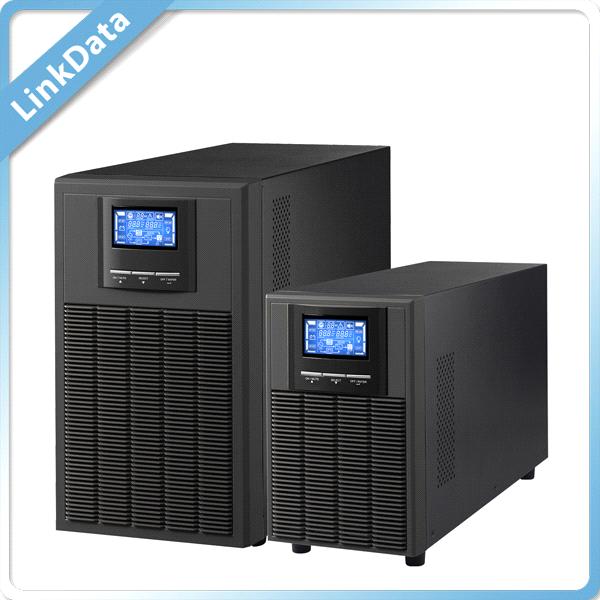

1000VA online UPS Tower Uninterruptable Power Supply
Uninterruptable Power Supply
UPS is the newest intelligent power supply system developed by Beijing Liandongtianyi Technologies. This product provides the users with reliable and high quality AC power, it can be easily installed as floor-standing tower or in 19-inch rackmount bracket. Our UPS products are applicable for server rooms, corridors, racks, outdoor and other harsh installation environment, and there is no necessary need for air conditioning system.
This power supply system adopts modular design, power range of small UPS covers from 1K to 60KVA, and 200K-1600KVA for large UPS.
Features
Microprocessor control optimizes reliability
Output power factor 0.8
Wide input voltage (110V - 300V)
Converter mode available
Generator compatible
Extending the backup time by cascading battery modules
Online replacement and maintenance
Smart SNMP works well with eiterUSB or RS-232 together
Strong charging ability
Perfect electrical performance, friendly and intuitive interface, full protection for the equipment
Meet the demands and management of large capacity battery for areas with poor quality of power supply
Specification
|
MODEL |
LD-T-1K |
LD-T-2K |
LD-T-3K |
|
|
PHASE |
Single phase with ground |
|||
|
CAPACITY |
1000 VA / 800 W |
2000 VA / 1600 W |
3000 VA / 2400 W |
|
|
INPUT |
||||
|
Input Voltage Range |
110 – 300 VAC ± 5% |
|||
|
Frequency Range |
40 Hz ~ 70 Hz |
|||
|
Power Factor |
≥ 0.99 @ Nominal Voltage (100% Load) |
|||
|
OUTPUT |
||||
|
Output Voltage |
200 / 208 / 220 / 230 / 240 VAC |
|||
|
Voltage Regulation |
± 1% |
|||
|
Frequency Range (Synchronized Range) |
47 ~ 53 Hz or 57 ~ 63 Hz |
|||
|
Frequency Range (Batt. Mode) |
50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz |
|||
|
Current Crest Ratio |
3:1 |
|||
|
Harmonic Distortion |
≤ 2% THD (Linear Load); ≤ 4% THD (Non-linear Load) |
|||
|
Transfer Time |
AC to DC |
Zero |
||
|
Inverter to Bypass |
4 ms (Typical) |
|||
|
Waveform (Batt. Mode) |
Pure Sinewave |
|||
|
EFFICIENCY |
||||
|
To AC Mode |
87% |
90% |
90% |
|
|
To Battery Mode |
83% |
87% |
89% |
|
|
BATTERY |
||||
|
Type |
48V lithium battery |
|||
|
Capacity |
Depending on the capacity of external batteries |
|||
|
Charging Current (max.) |
1.0A / 2.0A / 4.0A / 6.0A |
|||
|
INDICATORS |
||||
|
LCD or LED |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
|||
|
ALARM |
||||
|
Battery Mode |
Sounding every 4 seconds |
|||
|
Low Battery |
Sounding every second |
|||
|
Overload |
Sounding twice every second |
|||
|
Fault |
Continuously sounding |
|||
|
PHYSICAL |
||||
|
Dimension, DíWíH (mm) |
397×145×220 |
419×190×318 |
||
|
Net Weight (kgs) |
7.0 |
13 |
||
|
ENVIRONMENT |
||||
|
Humidity |
20-90% RH @ 0-40°c (Non-condensing) |
|||
|
Noise Level |
Less than 50dB @ 1 Meter |
|||
|
MANAGEMENT |
||||
|
Smart RS-232 / USB |
Supports Windows? 2000/2003/XP/Vista/2008, Windows? 7/8, Linux, Unix, and MAC |
|||
|
Optional SNMP |
Power management from SNMP manager and web browser |
|||
Applications
RRU, BBU, DSLAM, EPON, GPON, PBX, AP, optical modem, repeater, trunk amplifier, optical transmission, switchboard, microcells, macro base station and many other communication devices
