Home >Products Catalog > electromagnetic flow meter pipe with PTFE Liner

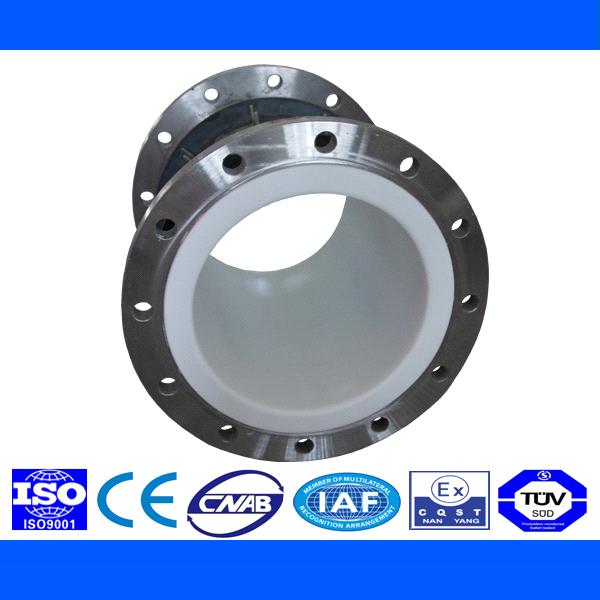

electromagnetic flow meter pipe with PTFE Liner

FOB Price:	11.00 - 2,977.00 USD/Set
Supply Ability:	30,000 Set/Sets per Month
Shipping:	7 days Qingdao FOB,CFR,CIF
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	bulk,paper/wooden box

Quick Details

Brand Name: Huitian
Model Number: HT-0742
Carbon steel/stainless steel: DN6-DN3000
PTFE Liner: PFA Liner
F46 Liner: Neoprene Liner
Polyurethane Liner: Experienced staff
good material: hot sale
Finished flow meter can be offered: vortex flow meter can be offered
turbine flow meter can be offered: ultrasonic flow meter can be offer
OEM can be offered: ODM can be offered

Specifications

electromagnetic flow meter pipe with PTFE Liner

1. Flow Pipe Size: DN10MM~DN3000MM

2. Flow pipe material: SS304/SS316/SS201/Carbon Steel

3. Flange material: SS304/SS316/Carbon Steel

4. Liner: PTFE, PFA, F46, Neoprene, Polyurethane

4.1. PTFE Liner

4.1.1 High temperature resistance Max. working temperature250℃

4.1.2 Low temperature resistance Min. working temperature -180℃

4.1.3 Chemical resistance

4.1.4 Negative pressure resistance

4.1.5, Pure

4.1.6 DN10—DN300 Seamless

Application: Strong corrosive mediums, such as, strong acid and alkali.

4.2. PFA Liner

4.2.1. Food grade

4.2.2. High temperature resistance Max. working temperature260℃

4.2.3. Low temperature resistance Min. working temperature -80℃

4.2.4. Chemical resistance

4.2.5. Negative pressure resistance

4.2.6, Pure

4.2.7. Insulation

4.2.8. Flame retardant

4.2.9 Radiation resistance

Application: Applicable in the status of negative pressure.

4.3. F46 Liner

4.3.1. Radiation resistance

4.3.2. High temperature resistance Max. working temperature200℃

4.3.3. Low temperature resistance Min. working temperature -85℃

4.3.4 Chemical resistance

4.3.5. Anti-abrasion

4.3.6. Anti-oxidation

4.3.7 Insulation

Application: Applicable in medium with weak abrasion.

4.4. Neoprene

4.4.1. working temperature 80℃-100℃

4.4.2. Oil resistance

4.4.3 Heat resistance

4.4.4. Fire resistance

4.4.5 Sunlight resistance

4.4.6. Ozone resistance

4.4.7. Acid-alkali resistance

4.4.8. Chemical resistance

Application: Water, sewage, slurry, mineral pulp with weak abrasion.

4.5. Polyurethane

4.5.1. Anti-abrasion (service life is 10 times crude-rubber)

4.5.2. High temperature resistance Max. working temperature 120℃

4.5.3. Low temperature resistance Min. working temperature -20℃

4.5.4. Anti-scratch

4.5.5. Anti-static electricity

4.5.6. Pollution-free

4.5.7. Non-toxic and odorless

Application: Mainly applicable in slurry, mineral pulp with strong abrasion.
