Home >Products Catalog > PTFE Lining Electromagnetic Flow Meter Semi-Sensor

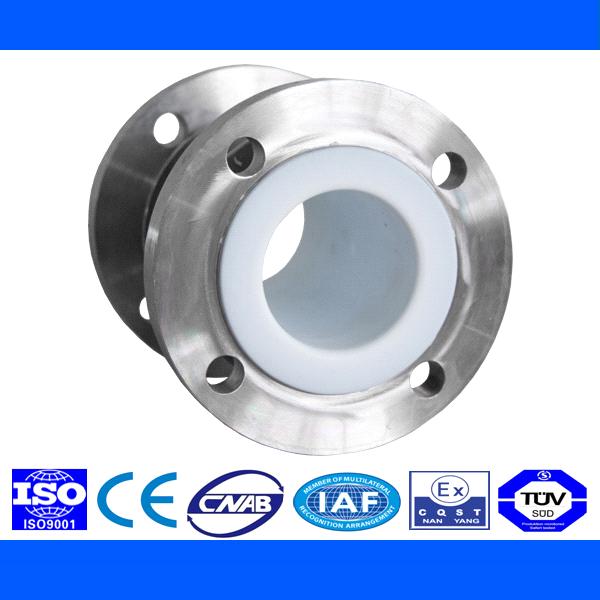

PTFE Lining Electromagnetic Flow Meter Semi-Sensor

FOB Price:	11.00 - 2977.00 USD/Set
Supply Ability:	30,000 Set(s) per Month
Shipping:	7 days Qingdao FOB, CFR, CIF
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	bulk, paper box, wooden box

Quick Details

Brand Name: Water
Accuracy: 0.5%
Power Supply: 220VAC/24VDC
output: 4-20mA
Medium: Water/Sewage
Model Number: W-M3000
Carbon steel/stainless steel: DN6-DN3000
PTFE Liner: PFA Liner
F46 Liner: Neoprene Liner
Polyurethane Liner: Experienced staff
good material: hot sale
Finished flow meter can be offered: vortex flow meter can be offered
turbine flow meter can be offered: ultrasonic flow meter can be offer
OEM can be offered: ODM can be offered

Specifications

PTFE Lining electromagnetic flow meter

1. Flow Pipe Size: DN10MM~DN3000MM

2. Flow pipe material: SS304/SS316/SS201/Carbon Steel

3. Flange material: SS304/SS316/Carbon Steel

4. Liner: PTFE, PFA, F46, Neoprene, Polyurethane

4.1. PTFE Liner

4.1.1High temperature resistance Max. Working temperature250

4.1.2Low temperature resistance Min. Working temperature -180

4.1.3Chemical resistance

4.1.4Negative pressure resistance

4.1.5, Pure

4.1.6DN10DN300 Seamless

Application: Strong corrosive mediums, such as, strong acid and alkali.

4.2. PFA Liner

4.2.1. Food grade

4.2.2. High temperature resistance Max. Working temperature260

4.2.3. Low temperature resistance Min. Working temperature -80

4.2.4. Chemical resistance

4.2.5. Negative pressure resistance

4.2.6, Pure

4.2.7. Insulation

4.2.8. Flame retardant

4.2.9Radiation resistance

Application: Applicable in the status of negative pressure.

4.3. F46 Liner

4.3.1. Radiation resistance

4.3.2. High temperature resistance Max. Working temperature200

4.3.3. Low temperature resistance Min. Working temperature -85

4.3.4Chemical resistance

4.3.5. Anti-abrasion

4.3.6. Anti-oxidation

4.3.7Insulation

Application: Applicable in medium with weak abrasion.

4.4. Neoprene

4.4.1. Working temperature 80-100

4.4.2. Oil resistance

4.4.3Heat resistance

4.4.4. Fire resistance

4.4.5Sunlight resistance

4.4.6. Ozone resistance

4.4.7. Acid-alkali resistance

4.4.8. Chemical resistance

Application: Water, sewage, slurry, mineral pulp with weak abrasion.

4.5. Polyurethane

4.5.1. Anti-abrasion (service life is 10 times crude-rubber)

4.5.2. High temperature resistance Max. Working temperature 120

4.5.3. Low temperature resistance Min. Working temperature -20

4.5.4. Anti-scratch

4.5.5. Anti-static electricity

4.5.6. Pollution-free

4.5.7. Non-toxic and odorless

Application: Mainly applicable in slurry, mineral pulp with strong abrasion.

Min. Order Quantity: 1 set

FOB Price: USD11-2977/set

Payment terms: TT, LC,

Supply Ability: 30000 sets/months

Shipping: 7 days Qingdao FOB, CFR, CIF

Package: bulk, paper box, wooden box

KAIFENG WATER LARGE FLOW MEASUREMENT SCIENCE & TECHNOLOGY CO., LTD. Is located in Kaifeng, Henan. the factory covers an area of 33,300 square meters and has a total construction area of 26,640 square meters. It is a technology-based intelligent instrumentation and control equipment manufacturer. Water is committed to providing customers with highly reliable measurement instrumentation and control solutions!

the company has established a test management system in accordance with ISO/IEC 17025:2005 " General Requirements for Testing and Calibration Laboratory Capabilities" (CNAS-CL01 " Test and Calibration Laboratory Capability Approval Guidelines" ).

the company's main products are electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, oval gear flowmeter, ultrasonic flowmeter, mass flowmeter, liquid level flowmeter, various liquid level gauges and converters, and ball valve, gate valve, check valve, globe valve, etc. Our company's products are characterized by high precision, high stability and easy installation.

in the past many years, our company has provided advanced and reliable instrumentation and valves for national and international key projects of petroleum, chemical, petrochemical, metallurgy, light industry, urban water supply and drainage municipal construction, aerospace, nuclear power and other industries.
