Hebei Htk Welding Equipment Manufacture Co., Ltd.
China Manufacturer with main products: Welding Wire Mesh Machine, Wire Mesh Welding Machine, Field Fence Machine, Welded Wire Mesh Machine Factory, Animal Fence Machine, Hinge... |

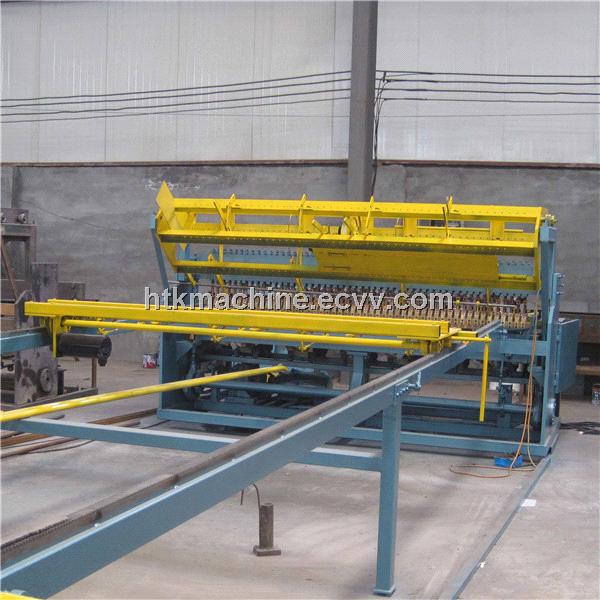

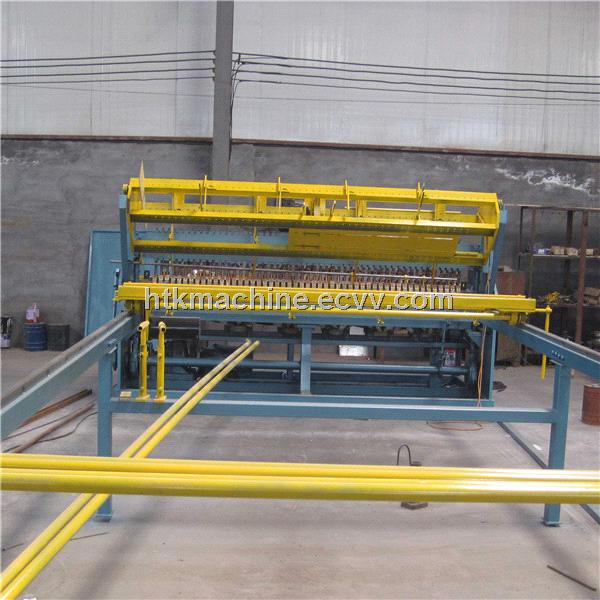

WELDED WIRE MESH MACHINE
| FOB Price: | 17,000.00 - 17,500.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 25DAYS |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, Southeast Asia, Africa |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | WOOD PALLET |
Quick Details
- Condition: New
- Brand Name: HTK
- Model Number: 1500MM
- Usage: WIRE MESH PANEL
- Voltage: 380
- Rated Duty Cycle: 1-99
- Rated Capacity: 7.5kw
- Dimensions: 2.0mx1.8mx1.7m
- Weight: 2000kgs
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Wire Diameter: 3-5MM
- Welded width: 2000M
- Control: PLC
- Voltage: 380V-50HZ-3P
- Speed: 50 coress wire
Specifications
WELDED WIRE MESH MACHINE
Our certifications: ISO 9001:2000, BV certification
Product Description
1.feature
This machine adopts synchronous control technique, separate-control welding and welding time controlled by PLC digital programming system, once pressing, and separate welding. The input panel has two types touch screen and button, making operation more intelligent and rational. The welding power is electric power, weft fed from hopper driven by steeper motor, warp fed by brake motor driven car and the mesh pulled by the stepper motor driven car. The warp and the weft are both pre-straightened and pre-cut by the special straightening machine. The biggest advantage of this machine is that there is different weft spacing in the same mesh.
wire diameter
3-5mm
warp form
percut wire
weft wire spacing
50-200mm
weft form
percut wire
warp spacing
50-200mm
rated voltage
380v
welding width
2000mm
rated power
120KVA*5
welding speed
45times/min
overall dimension
2200*2400*1800mm
welding point
41
weight
3.5T
Special type can be made according to the client's requiment

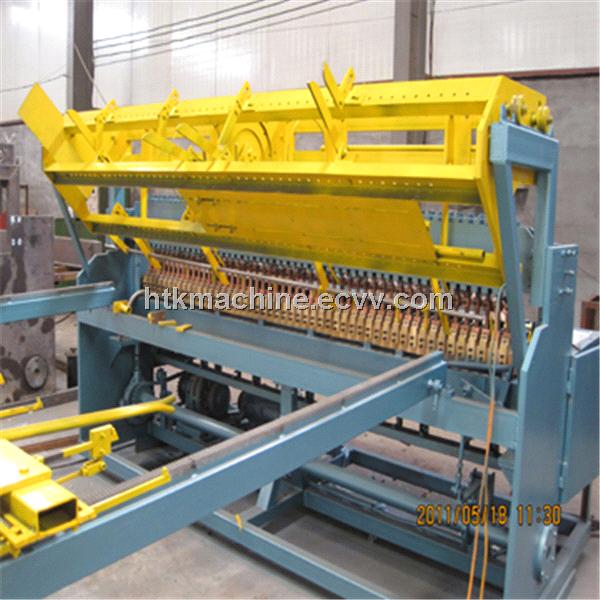

1.Materal feeder-pre cut weft wires put into the material feeder, wires can drop automaticlly.

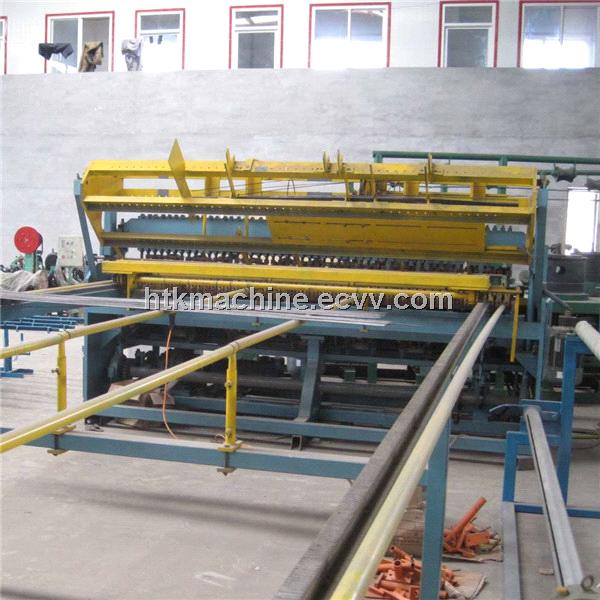

2.Mesh drawing frame-welded mesh on the frame and drived by a step motor. The frame can reach 6 meters long
3.Control cabinet- specifications input to control cabinet, the machine can working automaticlly

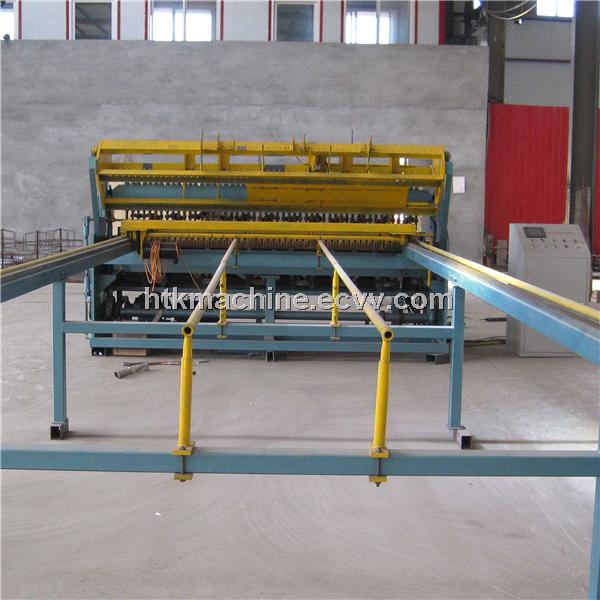

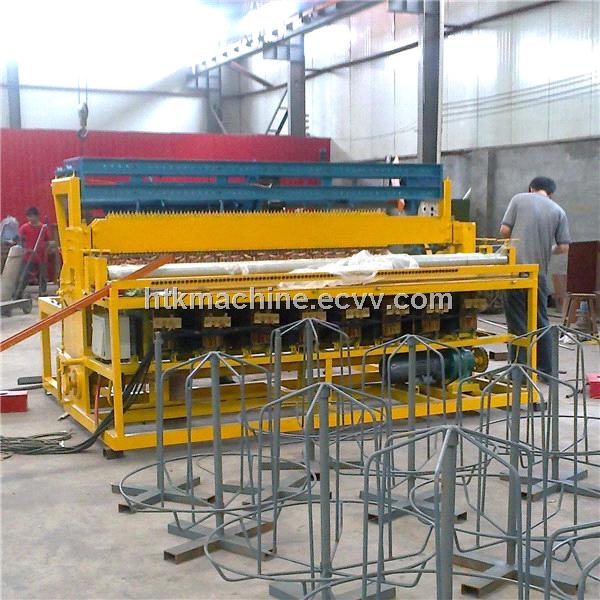

4.the product of welded wire mesh making machine
Packaging & Shipping
package of welded wire mesh making machine
1. In wooden pallet
2.In plastic films
3.According to your requirement
Our Services
NO.1 Engineer can install,test and adjust the machine for you when the machine arrived your factory 7days.
NO.2 Guarantee: one year, some accessories free for you, and if the machine has something wrong, the accessories also can free to you
NO.3 Engineer can repair machine to your factory
NO.4 24 hours online after-sale service
Company Information
Location : located in China's largest township of wire mesh----Anpping County, Hebei Province,South of Zhaobazhuang industrial Zone.
professional manufacturer : two senior engineers,10senior technicians, more than 100employees
certification : ISO 9001:2000, BV certification
Product: field fence ,field fence machine ,welded wire mesh machine ,and so on.
