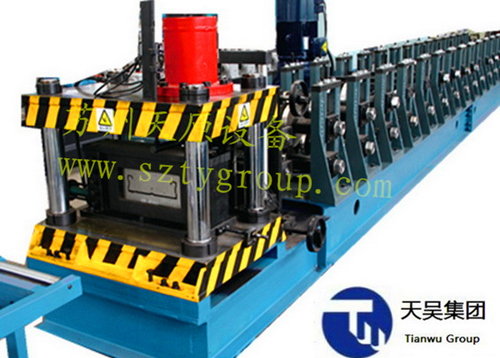

scaffold panel roll forming machine china manfuacturer
| Supply Ability: | 3 Set/Sets per Month |
|---|---|
| Shipping: | by sea |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | for sea shipping package |
Quick Details
- Brand Name: Tianyuan
- Model Number: GY160
Specifications
scaffold panel roll forming machine specification
Equipment consists:
The equipment consist with de-coiler , guider , leveler, servo feeder , punching device, roll forming , cutting , collection and electric control system etc.
Technical data:
1. Thickness of the raw material :1.5-2.0mm
Width of raw material : 250-450 mm
2. Line speed : 6-10m/ min
3. Working area: L 30m X W3m
4. Total power : about 35.5KW
Automatic Foot Plate Roll Forming Machine
Equipment Structure
This production line consists of leveler,feeding/punching, roll forming, cutting,etc.
The production line is composed of de-coiler, leveler,punching, roll forming , cutting system , electric control system , etc.
Technical parameter
NO. | Item | Unit | Parameter | Remark | |
1 | Material | Type |
galvanized sheet,mild steel,etc, | ||
Strength of material sheet | Map | ≥350 | |||
Thickness of material sheet | mm | 1.2~2.0 | customizable | ||
2 | Profile sizes | mm | See Figure | customizable | |
3 | Production speed | m/min | 6~8 | customizable | |
4 | Material of roller | GCr15 quenching treatment | |||
5 | Drive type | Gearbox driven | |||
6 | Motor Power | kw | About 48 | ||
7 | Electric control system | PLC variable frequency control | |||
8 | Dimensions(Length*width*height) | m | 35X4X3.9 | ||
