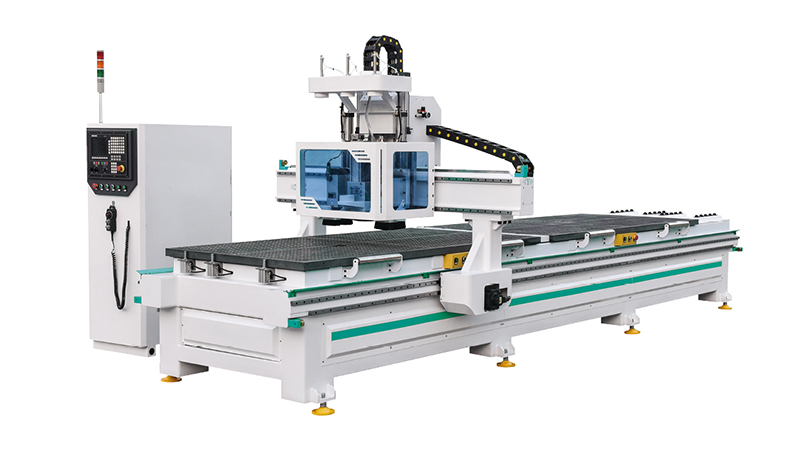

4X8 Feet Woodworking CNC Router Machine for Sale with Double-Working-Table

FOB Price:	10,000.00 - 50,000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	30 days after advance payment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	standard export case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Certification: CE, ISO
Brand Name: Jeesun
Condition: New
CNC or Not: CNC

Specifications

4x8 feet woodworking CNC router machine for sale with double-working-table

Main Features:
1. the four air-cooling spindles of the CNC router for cabinet making can automatic finish the vertical hole drilling, slot cutting, carving in one step.
2. the CNC router for cabinet making has advantages of saving time, labor and materials, replace traditional CAD draftsmen, splitting men, cutting men, only need 8 minutes to input size design and split. Automatic layout optimization, improve material utilization. High quantity automatic design, Automatic type setting, no human intervention.Minimizing error rate to minimum, ensure the quality of the order.
3. High efficiency: CNC router machine with double table for cabinet making, when finish one work line, it can auto work on another table, greatly improve the work efficiency.
4. Drive Faster: Two motor driving on Y axis, Fast speed, high efficiency, Max Air move speed to 60m/min.
5. Operation Steadily: Imported linear square guide, double row and four row ball slider, large loading capacity. Convenient operation, high precision, long life time.
6. Intelligent control: Adopt the original computer control system, has a break point, power outages, has the function of re-carving after break point and power failure.
7. Sturdy Durable: Heavy T type of lathe bed, strong rigidity, big strength, smooth rotation, speed for a long time not deformation, not shake.
8. Independently Electric Control Box, with perfect wiring and free moving pulleys.

Technical Parameters:

Item	Specification
Model	JS- series
Working size	1300x2500x200mm
Max Working Speed	25000mm/min
Positioning Accuracy	0.03/300mm
Re-positioning Accuracy	0.03mm
Spindle Power	23.5KW + 26KW
Spindle Speed	0-24000RPM
Table Surface	Double table + vacuum table
Transmission	Rack and Pinion for Y axis, Ball Screw for X/ Z axis
Command Language	G Code, uoo, mmg, *plt
Operating System	Taiwan Syntec control system
Computer Interface	USB Flash Memory 128M (U Disk)
Software Compatibility	Type3 software, Wentai software, Artcam software
Power Supply	3-phase, 380V, 50Hz/60Hz
Working Environment	Temp: 0-45C, humidity: 80%, No condensation

Application:
Woodworking Industry:
Cabinet making CNC router is ideally suitable for furniture decorations, musical instruments, wooden crafts, solid wood furniture, MDF door, wood composite door, cabinet making, kitchen cabinet doors, windows, tables, etc.
Decoration industry:
Art model, Wall Art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate, electrical cabinets panels, sports equipment, and other wooden industrial products.
