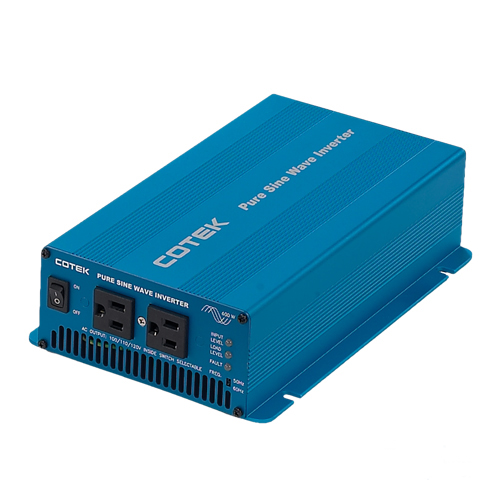

600w 12v off grid dc ac pure sine wave power inverter

FOB Price:	265.10 - 270.00 USD/Piece
Supply Ability:	30,000 Piece/Pieces per Month
Shipping:	for small order can by express.for big quantity can by air or sea
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	standard export carton

Quick Details

Features:

.Pure sine wave output (< 3% THD)

? Output frequency : 50/60Hz switch table.

? Low power " Power Saving Mode " to conserve energy

? Built–in voltage and watt meter

? Thermostatically controlled cooling fan

? Advanced microprocessor

? Protection : ? Input low voltage ? Overload ? Short circuit

Specification :

Specification	Model No.
Item	S600-112	S600-124		S600-148	S600-212	S600-224	S600-248
Continuous Output Power	600W

Input Voltage	12V	24V		48V	12V	24V	48V
Output Voltage	100 / 110 / 115 / 120V ± 3%				200 / 220 / 230 / 240V ± 3%
Frequency (Switch Selectable)	50/60Hz +/- 0.05%
Peak Output Current	25A				11A
Efficiency (full load)	85%	87%		88%	86%	89%	90%
No Load Current Draw	1.5W Saving Mode
Output Waveform	Sine Wave <3% THD
Output Voltage Regulation	100 / 110 / 115 / 120V RMS –10%/+4%				200 / 220 / 230 / 240V RMS –10%/+4%
Input Voltage Regulation	10-16 VDC	20-32 VDC		42-62 VDC	10-16 VDC	20-32 VDC	42-62 VDC
Protection	Overload, Short Circuit, Reverse Polarity (Fuse), Over/Under Input Voltage, Over Temperature.
Power Saving Recovery Time	5 Second
Interface Control Port	RS-232C With Baud Rate 1200, 2400, 4800 (Switch Selectable)
Remote Control Unit	Optional
Safety	UL458		EN60950
EMC	FCC Class B		EN50081-1:1992 EN50082-1:1992 EN55022B:1994 EN61000-4-2:1995 EN61000-4-3:1996 ENV50204:1995			e-Mark e13-020932
Operating Temperature Range	0-50
Storage Temperature Range	-30to 70
Dimensions	390 (L) x 275 (W) x 105 (H) mm / 15.4 (L) x 10.8 (W) x 4.1 (H) Inch
Cooling	Thermostatically controlled cooling fan
Weight	7.0kgs / 15.5 lbs.
