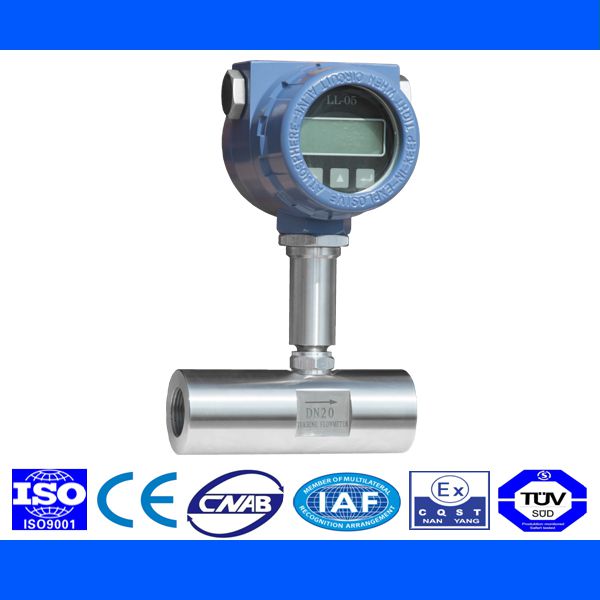

Accuracy 0.5% Thread Connection Turbine Flow Meter
| FOB Price: | 2,975.00 - 7,985.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set(s) per Month |
| Shipping: | BY SEA, AIR, EXPRESS |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | WOODEN BOX |
Quick Details
- Brand Name: Water
- Feature: Abrasion-Resistant,Chemical-Resistant,Eco-Friendly,High Temperature Resistant,High Tenacity,Low Shrinkage,Elastic,Waterproof
- Yarn Type: Filament
- Use: Crochet,Cross Stitch,Embroidery,Hand Knitting,Teabag,Knitting,Sewing,Weaving,
- Material: 100% PTFE
- Model Number: W-T300
- Easy Maintenance: Automatic, Controlled by Computer
- Easy Data Setting: Anit Lightning
- Easy Installation: Good Quality
- Simple Structure: High Performance
- Long Service Life: Warranty for 1 Year
- Difficult to Damage: One Stop Service
- High Accuracy: High Efficiency
- Pressure Rise Rapidly: Easy Operation
- Pressure Stable: Data Can Be Printed out
- Multiple Functions: Hot Sale
Specifications
Accuracy 0.5% thread connection turbine meter
Turbine Flow Meter engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. the Turbine Flow Meter senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal.
Summation of the pulsating electrical signal is directly related to the total flow. the frequency is linearly proportional to flow rate which is converted to electrical signed 4-20mA.
1. High accuracy and long life
2. Easy maintenance and installation
3. Widely used for factory, oil field, chemical, metallurgy, etc
Applications the sensor is suitable for measuring the liquid without any impurity such as fiber and particle and which does not corrode stainless steel SS304, 2Cr13, adamantine spar Al2O3 and rigid alloy.
the instrument parameter given by the inspection certificate is suitable for the situation which the media viscosity is smaller than 5X10-6m2/s in the working temperature.
in respect the liquid with the viscosity larger than 5X10-6m2/s, calibrate the sensor according to the actual liquid, and then use as per the new instrument parameter.
If users need to use the sensor of special type, it can order under the negotiation with us. If it needs explosion-proof sensor, specify in the order.
Features 2 Wire System Simple & Cost Effective Construction. Provides Wide Flow Ranges Local Display as 8 X 1 LCD Outstan
Main Technical Parameters:
Item Turbine flow meter Nominal Diameter(mm) and Connection method 4, 6, 10, 15, 20, 25, 32, 40 (tread connection) 15, 20, 25, 32, 40 (tread and flange connection) 50, 65, 80, 100, 125, 150, 200 ( flange connection)
Accuracy Class Regular accuracy? 1%R,? 0.5%R, highest accuracy? 0.2% R
Measurement Range Rate 1: 10, 1: 15, 1: 20
Instrument material 304 stainless steel; 316L stainless steel; Etc.
Medium Temperature ( Dere C) -20 ~ +120 C
Ambient Conditions Temperature: -10~+55C,
Relative Humidity: 5%~90%
Atmosphere Pressure: 86~106Kpa
Signal Output Sensor: Pulse frequency signal, low level less or equals 0.8V high level over or equals 8V.
Transmitter: Current signal, 4~20mA DC, two wires
Supply Power Sensor: +12V DC, +24V DC (option)
Transducer: +24V DC Scene display type meter: 3.2V Lithium cell Signal Transmission Line STVPV 3? 0.3 (three wires), 2? 0.3(two wires)
Transmission Distance less or equals 1000m
Signal Line Interface Internal thread M20? 1.5
Explode-proof Class ExdIIBT6
Protection Class IP65
FIXING of INSTRUMENT
A) Fixing differs on various sizes of pipes
B) the instrument can be fixed horizontally, vertically or leaning, the pipe must be full of liquid and without gas in it
C) Follow the direction indicator on the surface of sensor, upstream length must be more than 20DN, downstream length at least 7DN
D) Instrument should be away from any electromagnetic field, shielding measures take should be taken if necessary.
E) If the flowmeter works in open air, a waterproof shell is recommended
