LNG Coal Gas Turbine Flow Meter

FOB Price:	1.00 - 500.00 USD/Set
Supply Ability:	500 Set(s) per Month
Shipping:	BY SEA, AIR, EXPRESS
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Burst Strength Tester

Price:

Min. Order:1 Set
smart steam vortex flow meter with temperature ...

Price:350.00-2,000.00 USD/Set

Min. Order:1 Set
Integrated level transmitter HPT-33

Price:

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	WOODEN BOX

Quick Details

Brand Name: Water
Accuracy: 0.5%
Nominal pressure: PN16
Temperature: 80C
Connection: Thread
Model Number: W-T300L
Easy Maintenance: Automatic, Controlled by Computer
Easy Data Setting: Good Quality
Easy Installation: Anit Lightning
Simple Structure: High Performance
Long Service Life: Warranty for 1 Year
Difficult to Damage: One Stop Service
High Accuracy: High Efficiency
Pressure Rise Rapidly: Easy Operation
Pressure Stable: Data Can Be Printed out
Multiple Functions: Hot Sale

Specifications

LNG, Coal Gas, turbine flow meter

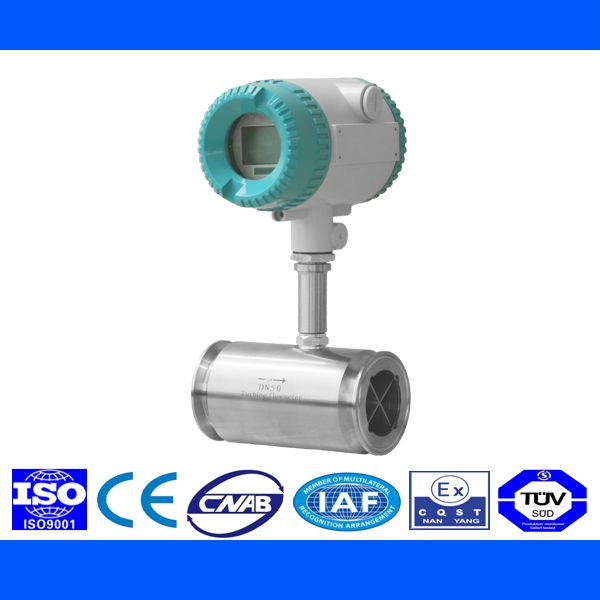

LNG Coal Gas Turbine Flow Meter
Turbine Flow Meter engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. the Turbine Flow Meter senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal.

Summation of the pulsating electrical signal is directly related to the total flow. the frequency is linearly proportional to flow rate which is converted to electrical signed 4-20mA.

1. High accuracy and long life
2. Easy maintenance and installation
3. Widely used for factory, oil field, chemical, metallurgy, etc

Applications the sensor is suitable for measuring the liquid without any impurity such as fiber and particle and which does not corrode stainless steel SS304, 2Cr13, adamantine spar Al2O3 and rigid alloy.

the instrument parameter given by the inspection certificate is suitable for the situation which the media viscosity is smaller than 5X10-6m2/s in the working temperature.

in respect the liquid with the viscosity larger than 5X10-6m2/s, calibrate the sensor according to the actual liquid, and then use as per the new instrument parameter.

If users need to use the sensor of special type, it can order under the negotiation with us. If it needs explosion-proof sensor, specify in the order.

Features 2 Wire System Simple & Cost Effective Construction. Provides Wide Flow Ranges Local Display as 8 X 1 LCD Outstan

Main Technical Parameters:
Item Turbine flow meter Nominal Diameter(mm) and Connection method 4, 6, 10, 15, 20, 25, 32, 40 (tread connection) 15, 20, 25, 32, 40 (tread and flange connection) 50, 65, 80, 100, 125, 150, 200 ( flange connection)
Accuracy Class Regular accuracy? 1%R,? 0.5%R, highest accuracy? 0.2% R
Measurement Range Rate 1: 10, 1: 15, 1: 20
Instrument material 304 stainless steel; 316L stainless steel; Etc.
Medium Temperature ( Dere C) -20 ~ +120 C
Ambient Conditions Temperature: -10~+55C,
Relative Humidity: 5%~90%
Atmosphere Pressure: 86~106Kpa
Signal Output Sensor: Pulse frequency signal, low level less or equals 0.8V high level over or equals 8V.
Transmitter: Current signal, 4~20mA DC, two wires
Supply Power Sensor: +12V DC, +24V DC (option)
Transducer: +24V DC Scene display type meter: 3.2V Lithium cell Signal Transmission Line STVPV 3? 0.3 (three wires), 2? 0.3(two wires)
Transmission Distance less or equals 1000m
Signal Line Interface Internal thread M20? 1.5
Explode-proof Class ExdIIBT6
Protection Class IP65
FIXING of INSTRUMENT
A) Fixing differs on various sizes of pipes

B) the instrument can be fixed horizontally, vertically or leaning, the pipe must be full of liquid and without gas in it

C) Follow the direction indicator on the surface of sensor, upstream length must be more than 20DN, downstream length at least 7DN

D) Instrument should be away from any electromagnetic field, shielding measures take should be taken if necessary.

E) If the flowmeter works in open air, a waterproof shell is recommended

KAIFENG WATER LARGE FLOW MEASUREMENT SCIENCE & TECHNOLOGY CO., LTD. Is located in Kaifeng, Henan. the factory covers an area of 33,300 square meters and has a total construction area of 26,640 square meters. It is a technology-based intelligent instrumentation and control equipment manufacturer. Water is committed to providing customers with highly reliable measurement instrumentation and control solutions!

the company has established a test management system in accordance with ISO/IEC 17025:2005 " General Requirements for Testing and Calibration Laboratory Capabilities" (CNAS-CL01 " Test and Calibration Laboratory Capability Approval Guidelines" ).

the company's main products are electromagnetic flowmeter, vortex flowmeter, turbine flowmeter, oval gear flowmeter, ultrasonic flowmeter, mass flowmeter, liquid level flowmeter, various liquid level gauges and converters, and ball valve, gate valve, check valve, globe valve, etc. Our company's products are characterized by high precision, high stability and easy installation.

in the past many years, our company has provided advanced and reliable instrumentation and valves for national and international key projects of petroleum, chemical, petrochemical, metallurgy, light industry, urban water supply and drainage municipal construction, aerospace, nuclear power and other industries.
