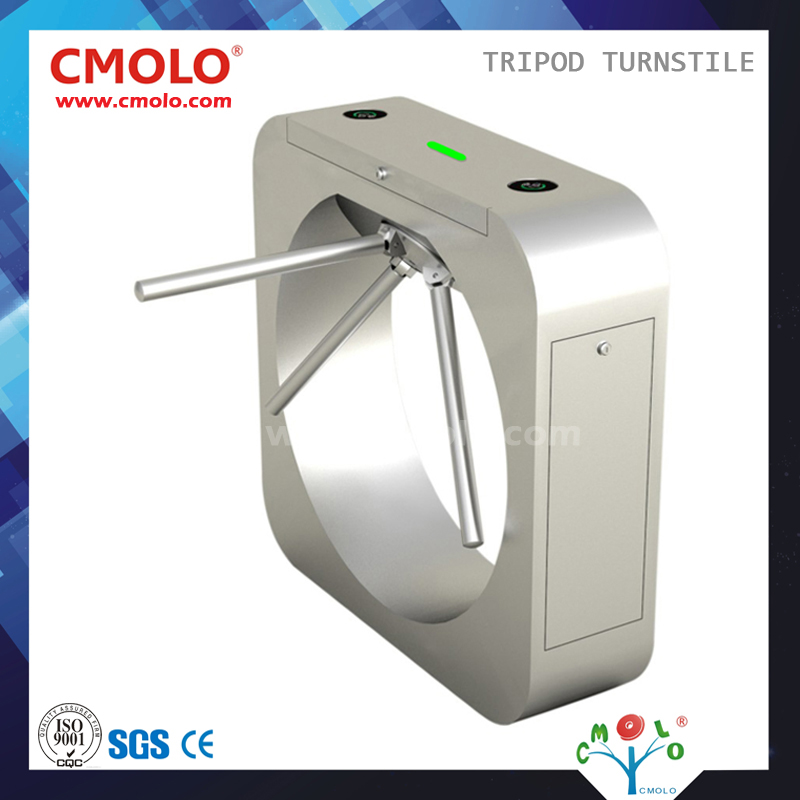

CE Approved Automatic Type Tripod Barrier (CPW-451AF)
| Supply Ability: | 500 Set(s) per Month |
|---|---|
| Shipping: | By sea, air, express |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Plywood Crate, Paper Carton, Pearl Cotton |
Quick Details
- Brand Name: CMOLO
- material: stainless steel
- Color: customized
- Warranty: 24 months
- Card Type: CPW-451AF
- Model Number: CPW-451AF
Specifications
CMOLO turnstile wins expert brand around the world, especially in Europe. Good quality guarantee deserves your more trust!
| Technical Parameters | |||
| Power and voltage | AC 220V / AC 85 ~ 230V | Operation voltage | DC 24V |
| Machinery Mechanism |
FRBT? Lossless mechanism |
Driving motor | DC brushless motor |
| Communication Interface |
RS485 / RS232 | Rated power | 40W |
| Passing speed | 20 ~ 35 people / min | Working Environment |
Indoors |
| Operation Temperature |
- 15oC ~ 60oC | Humidity Temperature |
0 ~ 95% (non- condensation) |
| Control input/output | 6 channels relay control output / 4-channel dry contact signal input | ||
New tripod turnstile (CPW-451AS)
Framework- Specification:
Framework: 304 (default) / 316 grade stainless steel (optional)
Thickness of ply: 1.5mm (default) / 2.0mm (optional)
Finish: Brushed surface (default) / polishing surface (optional)
Shell Size: 1000*280*990 (mm)
Arm Length: 500mm (default)
Arm Diameter: 38mm
Max Tolerance of Arm: 20kg
Driving Force of Arm: 3kg
Reader Mounting Bracket: Default to set the standard reader mounting bracket or customize the reader mounting bracket.
Electric- Specification:
Machine core: German technical machine core
Operation voltage: AC220V / AC85-230V
Working voltage: DC 24V
Start power consumption: 90W
Operation power consumption: 30W
Standby power consumption: 7.5W
Driven motor: European imported brushless DC motor
Communication interface: One channel RS485 (default) / two channels RS232 (default) / CAN bus and Ethernet (optional)
Control in / out: 6 channels switching output (12 V and 24V dry contact signal) / 4 channels switching input (pulse width≥ 100ms, driven current ≥ 100ms and the difference between high and low level is 5-36V DC level signal)
Transit speed: 30 persons per minute (normally closed mode) ~ 45 persons per minute (normally open mode)
Temperature: -20 to 60 degree
Humidity: 0~95% (No condensation)
Work environment: Indoor / outdoor (with rain-tent cover)
Customized Features:
Alternative materials, finishes and custom design
Design the housing with different materials according to the requirement of customers, including 304 and 316 stainless steel, etc.
Make the appointed surface finishes of the machine surface according to the requirement of customers, including brushed surface, polishing surface, etc (colors are optional)
Integrate door access control systems (welcome to choose our door access control C-T2000 or C-L2000)
Integrate the inside reader that the customer supplies.
Custom-made the mounting bracket for the reader.
Design the specialized door access control systems according to the requirement of customer.
Ticketing systems integration
Integrate the ticketing systems that the customer supplies
Design the specialized ticketing systems according to the requirement of customer.
Direction Indication
Install the LED display in the front of the housing.
Install the LED display in the other places of the housing.
Door control button
Inside switch button or install the switch button on the top.
Install the wireless remote-controlled switch button.
Allocate the remote-controlled switch button according to the requirement of the customer.
Counter installed inside or outside.
