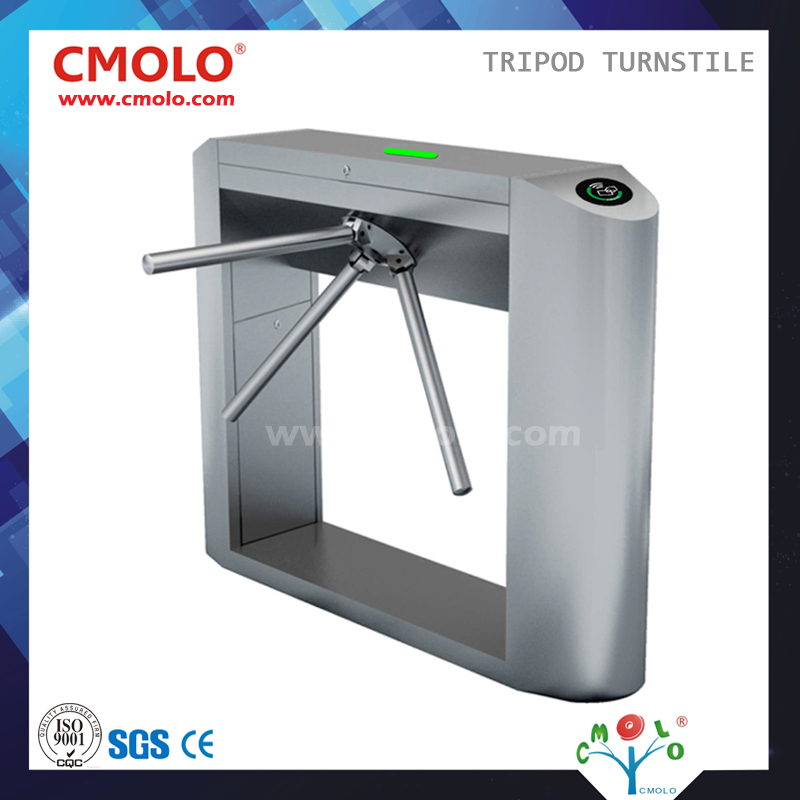

Fully-Automatic Bridge-Type Tripod Barrier (CPW-400DF)
| Supply Ability: | 500 Unit(s) per Month |
|---|---|
| Shipping: | By sea, air, express |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Plywood Crate, Paper Carton, Pearl Cotton |
Quick Details
- Brand Name: CMOLO
- material: stainless steel
- Color: customized
- Warranty: 24 months
- Card Type: CPW-400DF
- Model Number: CPW-400DF
Specifications
CMOLO is one of the leading turnstile manufacturers in China, we specailized in researching and developing turnstiles for high-end marketing.
CPW-400D Series
| Technical Parameters | |||
| Power and voltage | AC 220V / AC 85 ~ 230V | Operation voltage | DC 24V |
| Machinery Mechanism |
MTHT? Lossless mechanism |
Driving motor | DC brushless motor |
| Communication Interface |
RS485 / RS232 | Rated power | 40W |
| Passing speed | 20 ~ 35 people / min | Working Environment |
Indoors |
| Operation Temperature |
- 15oC ~ 60oC | Humidity Temperature |
0 ~ 95% (non- condensation) |
| Control input/output | 6 channels relay control output / 4-channel dry contact signal input | ||
Details:
According to different machine centers, intelligent tripod turnstile can be divided into fully-automatic tripod turnstile(CPW-00DF) and semi-automatic tripod turnstile(CPW-400DS), and different angle(CPW-400DM).
Their differences are fully automatic product can finish any work by power. The arm will automatically drop when it is powered off. and the arm will automatically go up when power is turned on again.
to Semi-automatic product, the arm can drop automatically when it is powered off. but when the power is turned on, the arm will be raised by hand.
Suggesting customers cooperating as ODM or OEM, providing system analysis, mould-making, circuit design, producing-assembly, package design, etc, linear service
Technology speciation:
- Framework: 304 Grade Stainless Steel
- Specification: 1200*280*990MM
- Weight: 70kg
- Arms length: 510mm
- Machine center: Imported Germanic technological motor
- Logic voltage: 24V
Function:
1. Single/double walkway---controlled in one direction or both
2. A valid lock action can allow one passage at one time
3. Normally open---the machine will unlock when a valid signal is received
4. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change
Emergency configuration:
the tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
Interface: One standard port-RS485
Control panel with count and LED digital function
Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
Transit speed: 20__30 persons per minute
Work environment:
Indoor/outdoor
Temperature: 10 below degree to 50 degree
