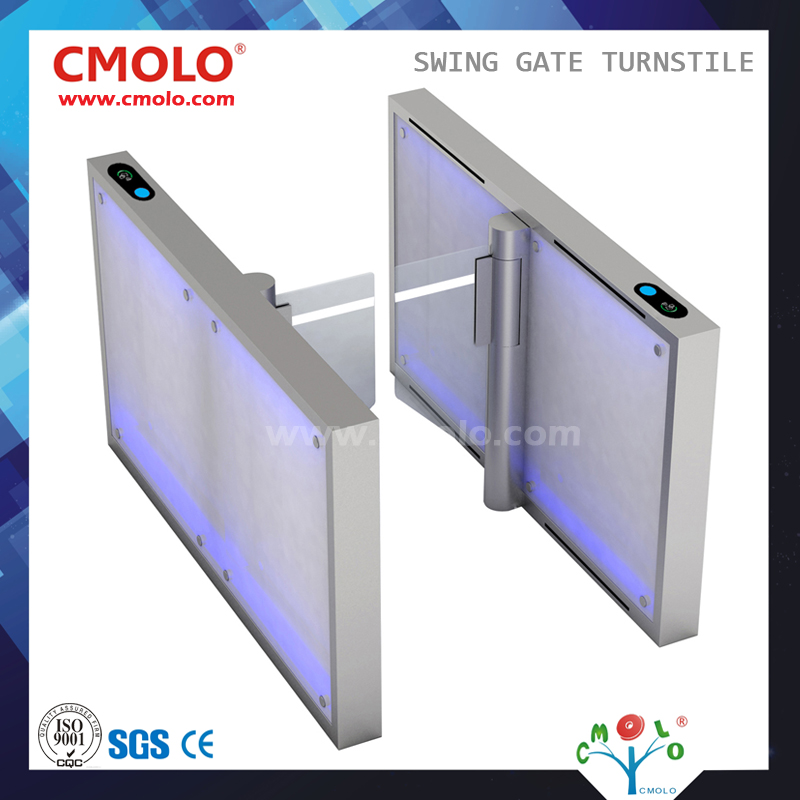

Access Control System Bi-Directional Swing Gate Turnstile (CPW-322FS)
| Supply Ability: | 1,000 Unit(s) per Month |
|---|---|
| Shipping: | By sea, air, express |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Plywood Crate, Pearl Cotton, Paper Carton |
Quick Details
- Brand Name: CMOLO
- material: stainless steel
- Color: customized
- Warranty: 24 months
- Card Type: CPW-322FS
- Model Number: CPW-322FS
Specifications
CMOLO Waist High Turnstile (CPW-322FS), new design, slim housing with stable operation.
Fluorescent side; Concise andfashionable; Optionallight color.
| Technical Parameters | |||
| Power and voltage | AC 220V / AC 85 ~ 230V | Operation voltage | DC 24V |
| Machinery Mechanism |
MTHT? Lossless mechanism |
Driving motor | DC brushless motor |
| Communication Interface |
RS485 / RS232 | Rated power | 100W |
| Passing speed | 30 ~ 45 people / min | Working Environment |
Indoors |
| Operation Temperature |
- 15oC ~ 60oC | Humidity Temperature |
0 ~ 95% (non- condensation) |
| Control input/output : 6 channels relay control output/ 4-channel dry contact signal input | |||
Product Description:
the swing gate can be pushed freely when the power is off.
the housing is made of the high quality stainless steel, and it is seamless design. the internal structures are all under rustproof processing, so it will be durable. the machine works smoothly without any noise.
the system adopts standard electrical interfaces, compatible with all main access control card readers (Including but not limited to magnetic card reader, barcode card reader, ID card reader, IC card reader etc and biological features card reader, such as fingerprint reader, iris reader, face recognition reader etc. ), it is suitable for the different security grade access control passageways, to effectively prevent the illegal person entering and exiting.
the product is organically integrated with the automation control technology, such as the mechanical transmission, microelectronics control and RFID etc, to manage the appointed read-write equipment according to the operating requirement of the customer.
the system has a special design to meet the requirement of fire control, so as to guarantee the passageway is unimpeded when it is in an emergency, to evacuate people in time.
Equipped with the free control software for human-machine interface and control command SDK, it is easy to control and adjust, and the expandability is strong.
Default, two single swing gates and one double swing gate are made up a double lanes. It also can custom-made as two single swing gates to constitute one lane or two single swing gates and several double swing gates to constitute multi-lanes.
